Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the sunroof completely.
  2. It is only necessary to lower the headliner. Only do those step in headliner replacement that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement .
  3. Remove the center window panel. Refer to Sunroof Window Replacement (Front)  or Sunroof Window Replacement (Rear Vent)  or Sunroof Window Replacement (Center)  or Sunroof Window Replacement (Rear Stationary) .

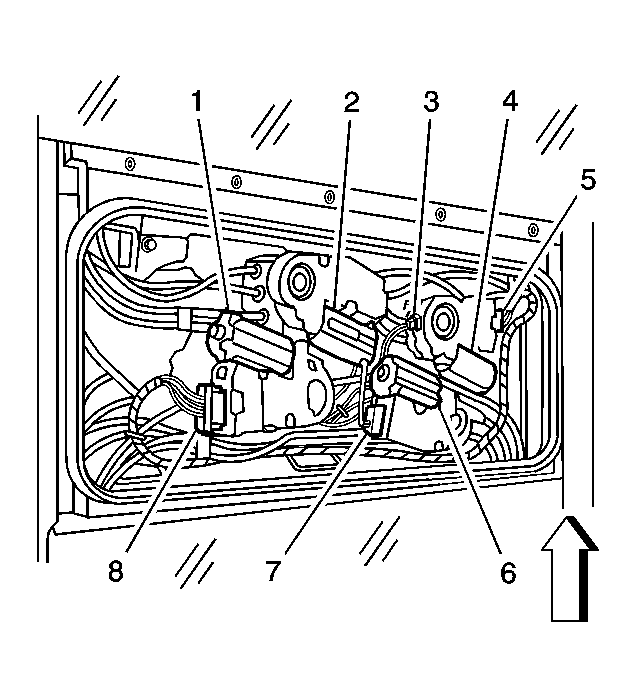

    4. Fig 1: Identifying Sunroof Motor/Actuator Components & Connectors
    GM903519Courtesy of GENERAL MOTORS CORP.
  4. Remove the front window motor (4) from the motor/actuator compartment. Refer to Sunroof Motor/Actuator Replacement .
  5. Remove the front sunshade motor/actuator (2). Refer to Sunroof Motor/Actuator Replacement .

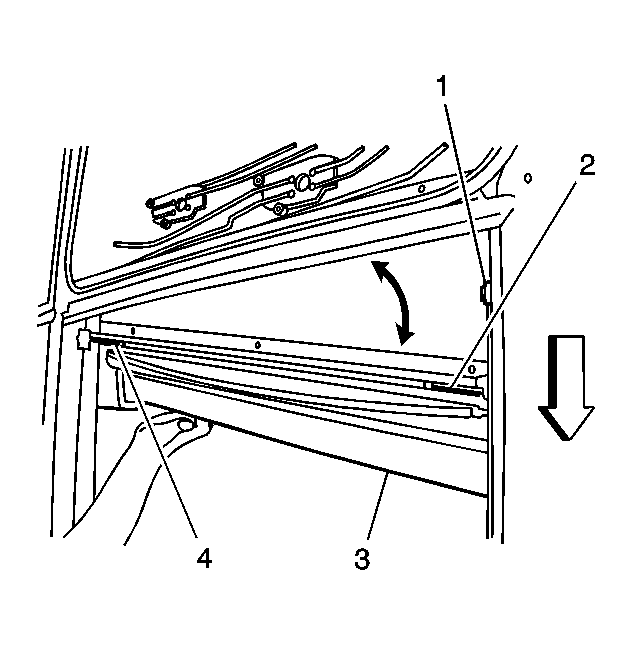

    6. Fig 2: View Of Front Sunshade Assembly
    GM903752Courtesy of GENERAL MOTORS CORP.
  6. Remove the front sunshade assembly (2). Refer to Sunroof Sunshade Assembly Replacement (Rear)  or Sunroof Sunshade Assembly Replacement (Front) .
  7. Remove the 2 screws from the front track extensions.
  8. Remove the underside track to frame screws.

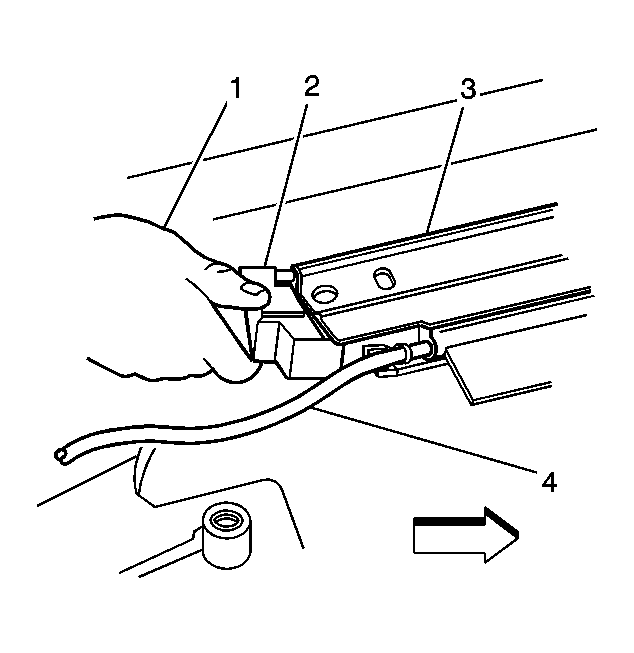

    9. Fig 3: View Of Sunroof Motor/Actuator Compartment Drive Tube Blocks (2)
    GM903345Courtesy of GENERAL MOTORS CORP.
  9. Disengage the front track from the sunroof motor/actuator compartment drive tube blocks (2).
  10. Lower the track assembly into the vehicle.
  11. Pull the drive cable from the drive tube front window cam assembly at the green end.
  12. Remove the track from the vehicle.

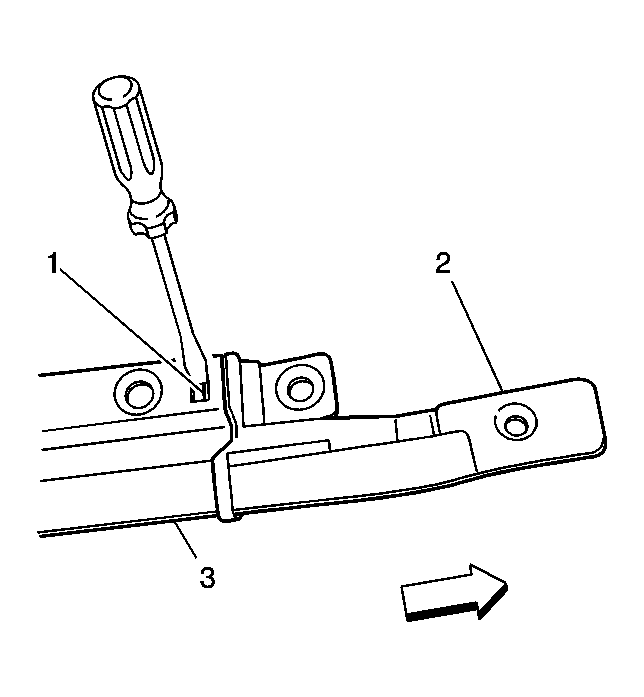

    13. Fig 4: View Of Front Cam & Track
    GM903758Courtesy of GENERAL MOTORS CORP.
  13. Remove the front cam (2) from the track (3).

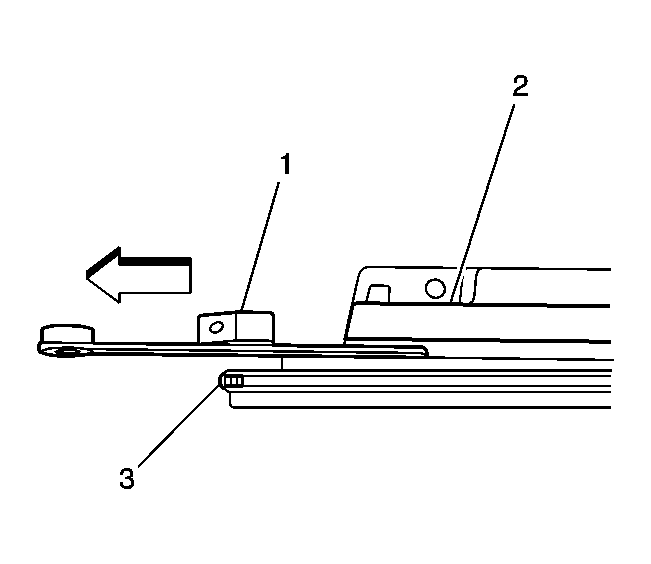

    14. Fig 5: View Of Cam/Cable Assembly & Inner Front Track
    GM903770Courtesy of GENERAL MOTORS CORP.
  14. Pull the cam/cable assembly (1) from the inner front track (2).
