Power Moding Schematics

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

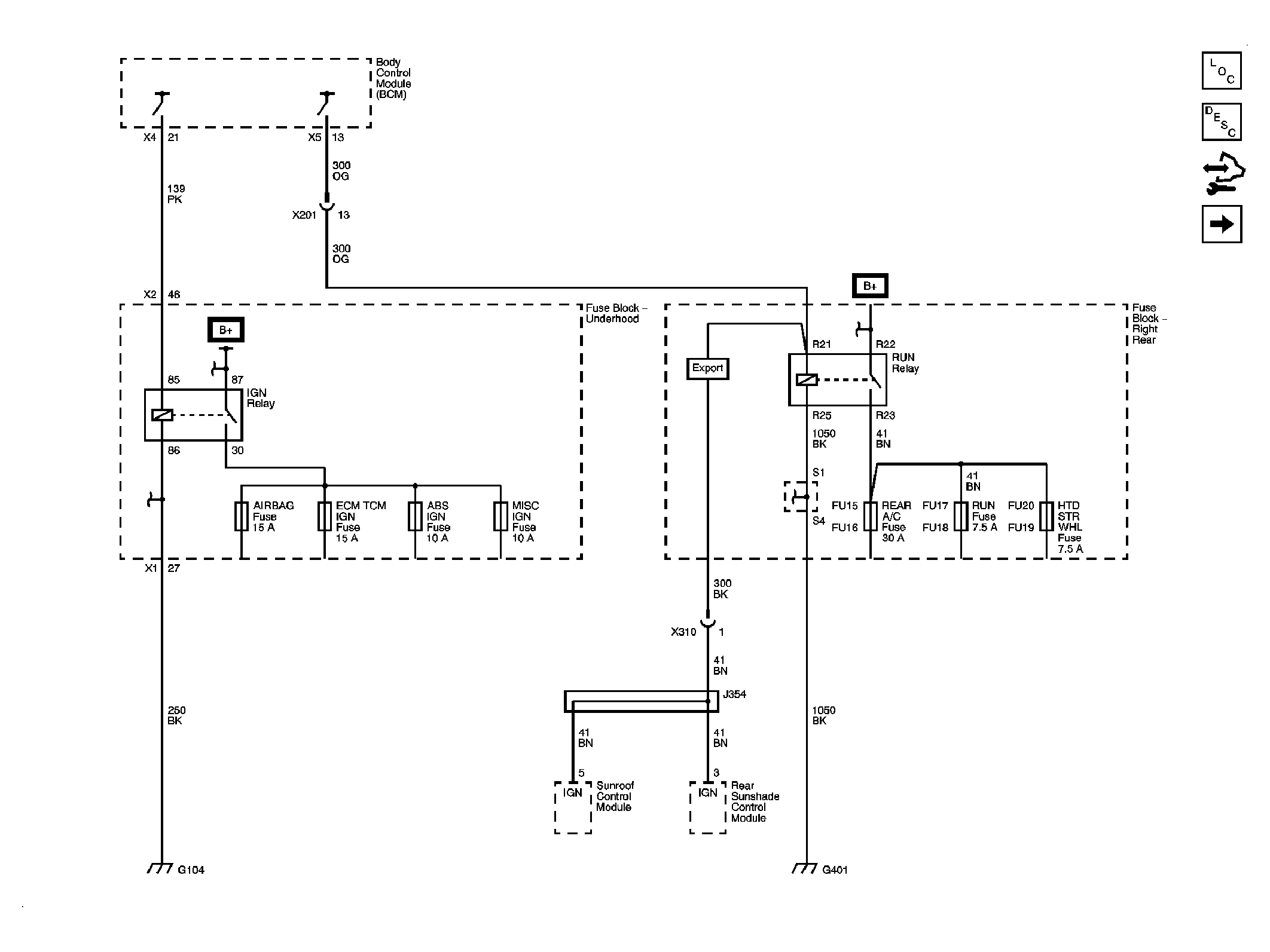

Fig 1: Ignition Power Modes - RUN
GM1875275Courtesy of GENERAL MOTORS CORP.

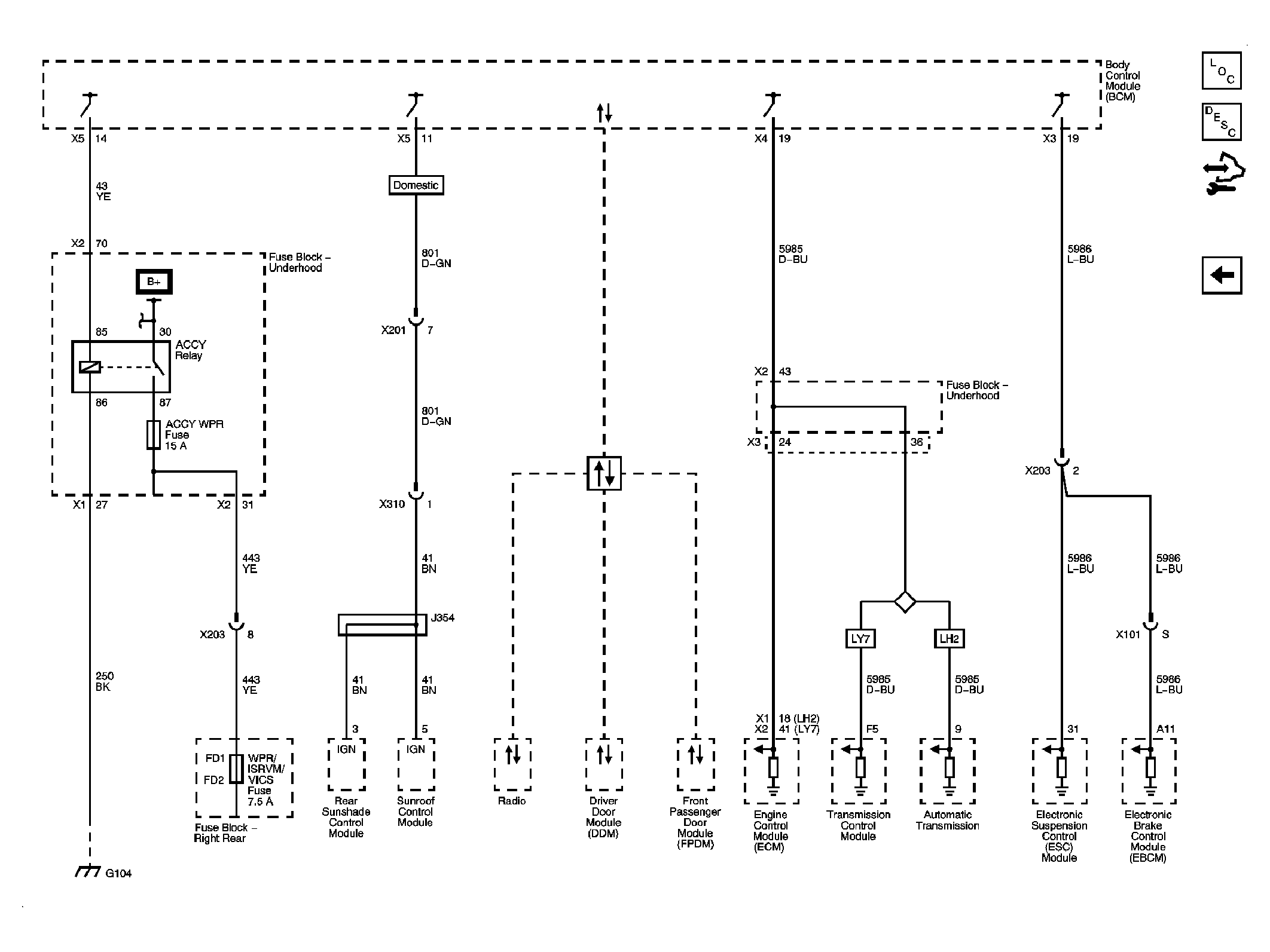

Fig 2: Power Modes - ACCY and RAP
GM1875278Courtesy of GENERAL MOTORS CORP.
