Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat adjuster motor sensor to the motor.

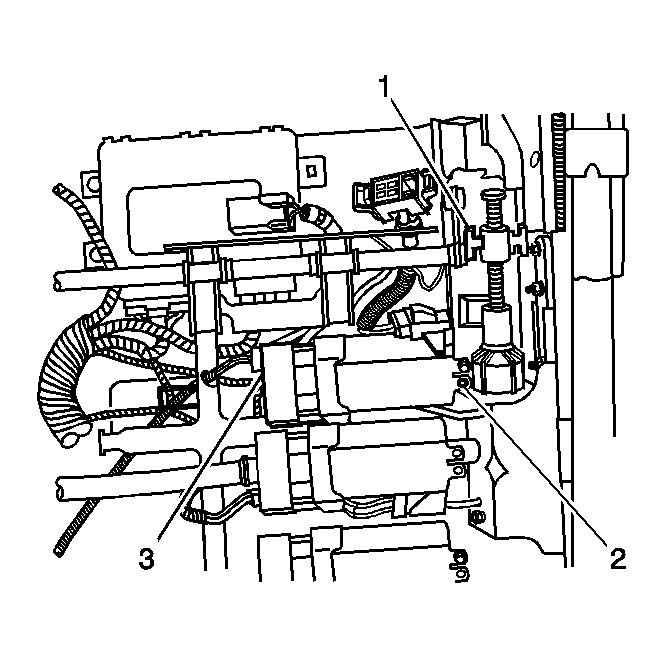

    2. Fig 1: View Of Vertical Seat Adjuster Motor
    GM795093Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the sensor (3).
  3. Install the seat. Refer to Bucket Seat Replacement .
  4. Enable the SIR system. Refer to SIR Disabling and Enabling .
  5. Calibrate the seat. Refer to Memory Seat Calibration .
