Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Refer to SIR Caution .
  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Remove the seat cushion from the adjuster track enough to gain access to the power seat switch. Refer to Front Seat Cushion Replacement .
    3. Fig 1: Removing Power Seat Switch Knobs
    GM715082Courtesy of GENERAL MOTORS CORP.
  3. Remove the knobs from the switch by gently prying them off using a flat-bladed tool.

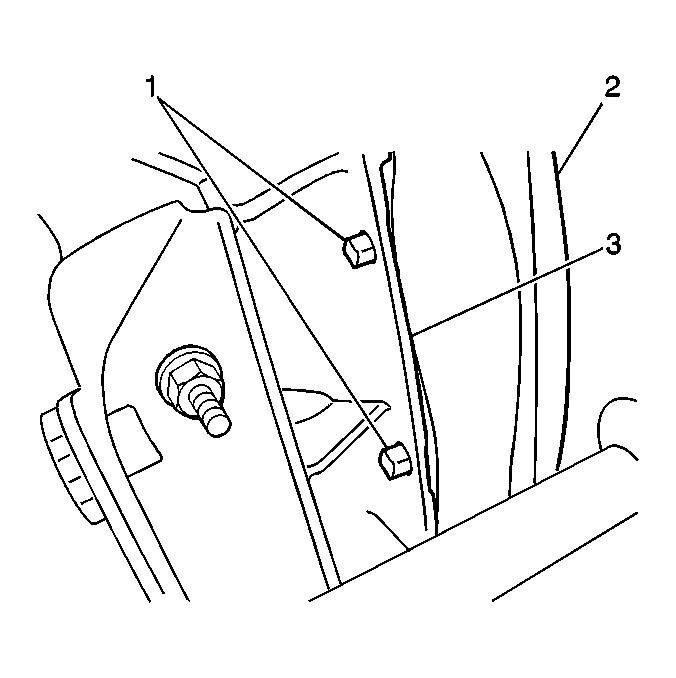

    4. Fig 2: Locating Power Seat Switch Bezel Retainers & Seat Cushion Frame
    GM716793Courtesy of GENERAL MOTORS CORP.
  4. On the underside of the seat cushion, locate the retainers (1) securing the power seat switch bezel to the seat cushion frame (3).
  5. Squeeze the retainers while gently prying the bezel from the seat cushion frame.
  6. Remove the power seat switch bezel.
  7. Release the J channel retainers securing the seat cushion cover to the seat cushion frame in order to gain access to the power seat switch.

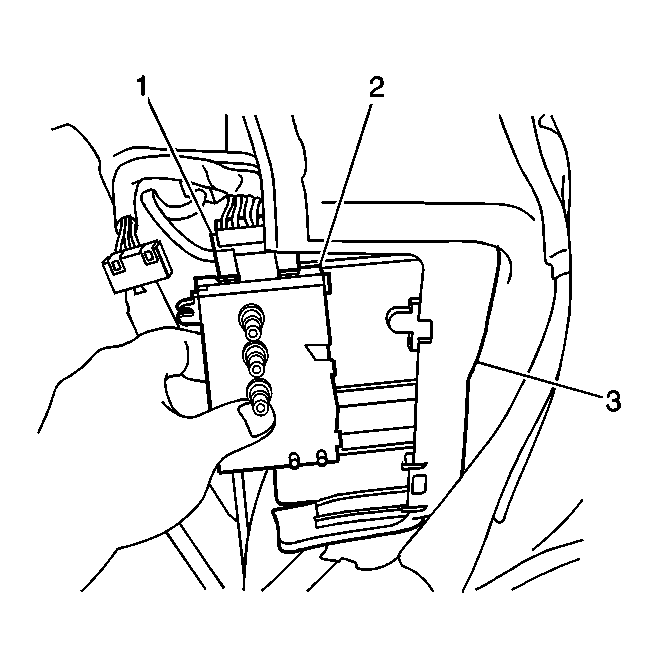

    8. Fig 3: View Of Power Seat Switch
    GM716797Courtesy of GENERAL MOTORS CORP.
  8. Remove the push-in fastener securing the power seat switch (2) to the seat cushion frame (3).
  9. Slide the power seat switch (2) from the seat cushion frame (3).
    10. NOTE: Note the correct routing of the electrical wiring. Failure to reinstall the wiring properly could result in damage to the wiring.
  10. Disconnect the electrical connector (1) from the power seat switch.
