Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

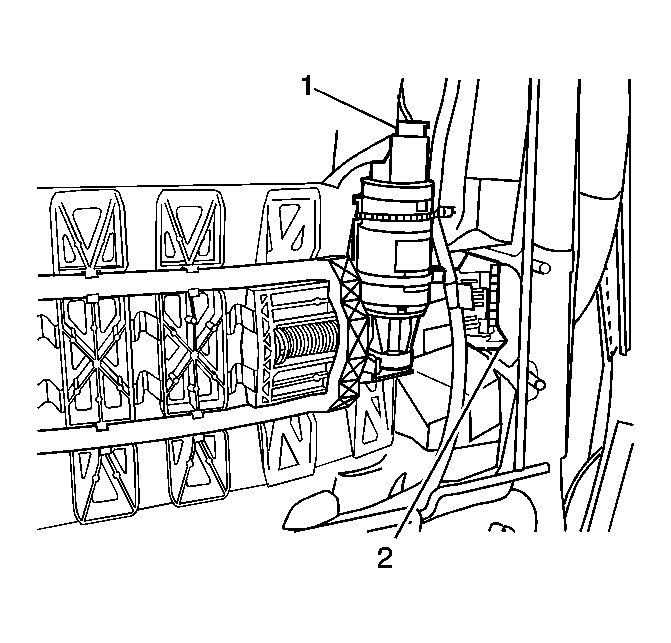

    Fig 1: View Of Lumbar Motor & Assembly
    GM1310527Courtesy of GENERAL MOTORS CORP.
  1. Install the lumbar assembly (2) to the seat frame.
  2. Connect the electrical connector (1) to the lumbar motor.
  3. Install the seat back trim. Refer to Front Seat Back Trim Replacement .
