Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

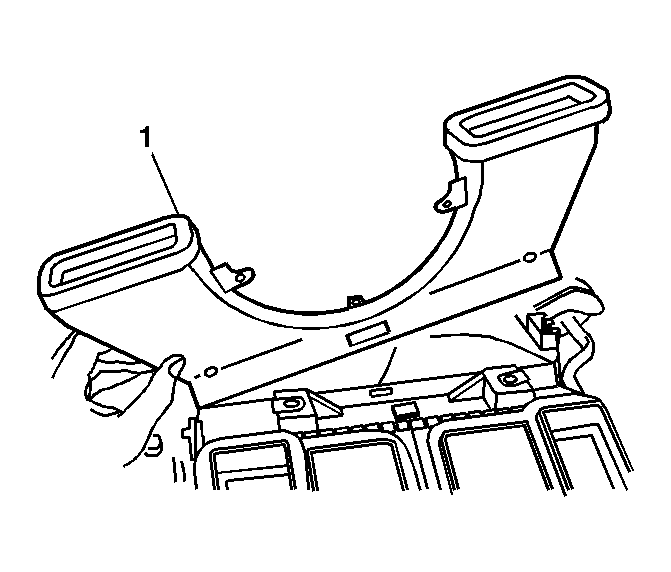

    Fig 1: Defroster Duct
    GM826060Courtesy of GENERAL MOTORS CORP.
  1. Install the defroster duct (1).

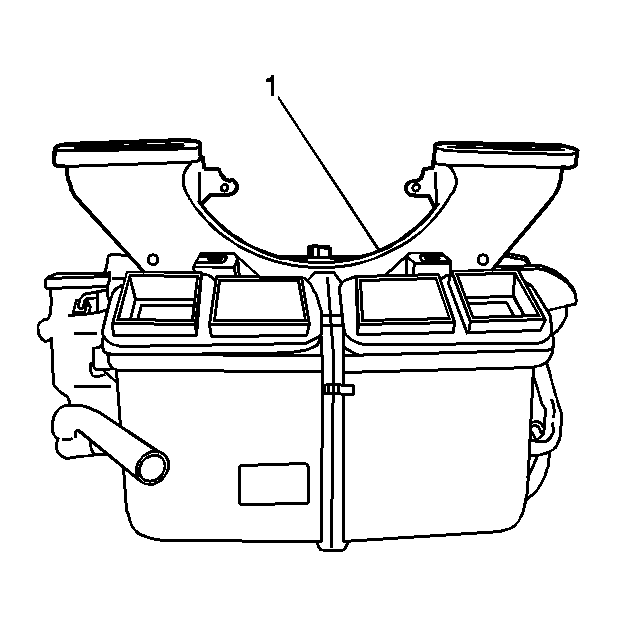

    2. Fig 2: Defroster Duct & HVAC Module
    GM826061Courtesy of GENERAL MOTORS CORP.
  2. Press down on the defroster duct (1) until you hear the tabs engage.
  3. Install the pushpins to the mag beam.
  4. Install the I/P retainer. Refer to Instrument Panel Retainer Replacement .
