Removal Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC module. Refer to Air Conditioning and Heater Module Assembly Removal and Installation .
  2. Remove the heater hose bracket screw.

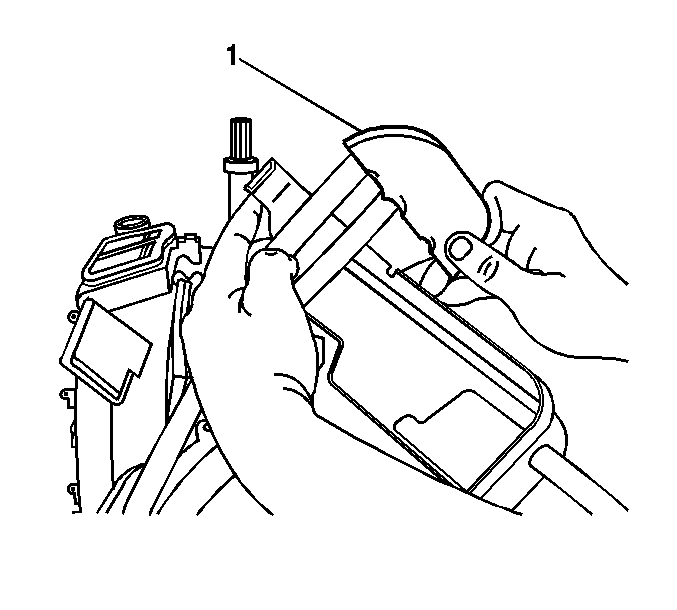

    3. Fig 1: Heater Hose Bracket
    GM756365Courtesy of GENERAL MOTORS CORP.
  3. Remove the heater hose bracket (1).

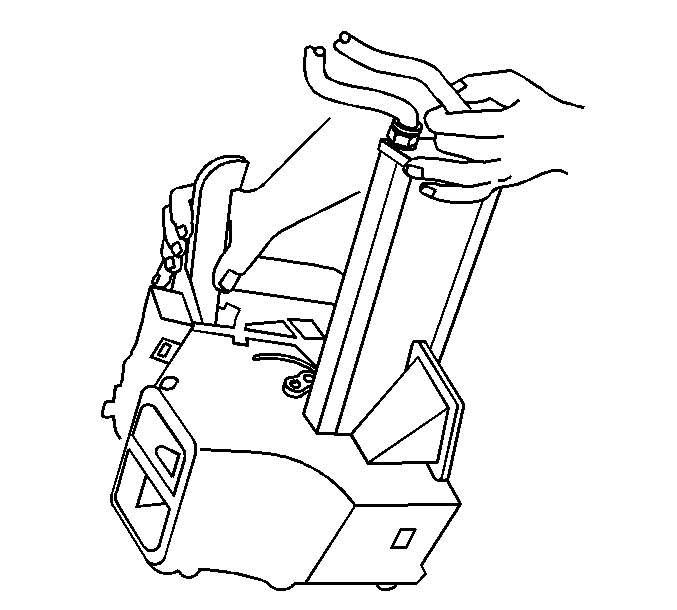

    4. Fig 2: Heater Core & HVAC Module
    GM756369Courtesy of GENERAL MOTORS CORP.
  4. Slide the heater core out of the HVAC module.
