Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

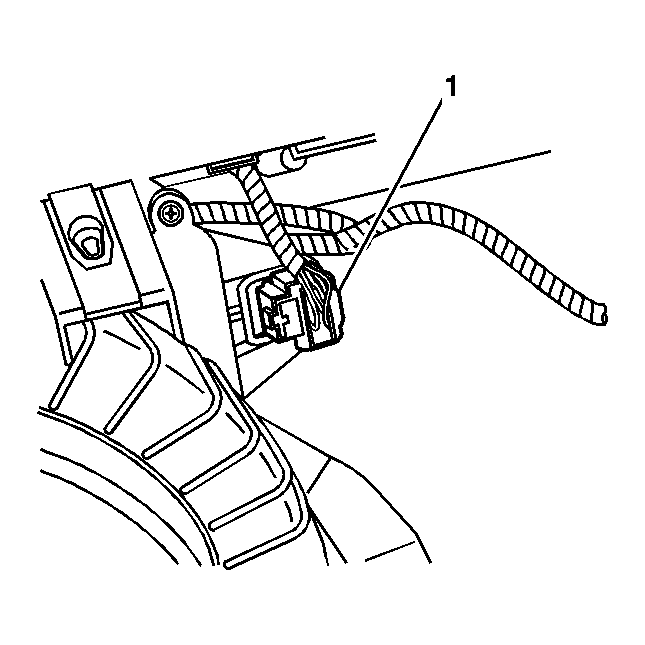

    Fig 1: Air Inlet Assembly Electrical Connector
    GM799130Courtesy of GENERAL MOTORS CORP.
  1. Connect the air inlet assembly electrical connector (1).

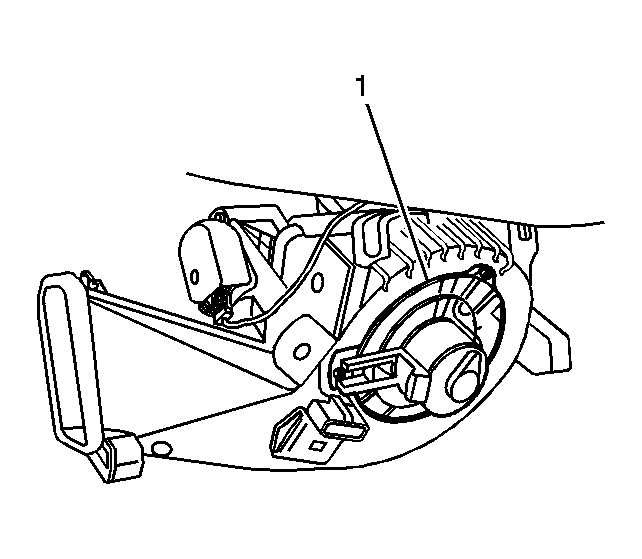

    2. Fig 2: Air Inlet Assembly
    GM799128Courtesy of GENERAL MOTORS CORP.
  2. Install the air inlet assembly (1) to the locator pin.

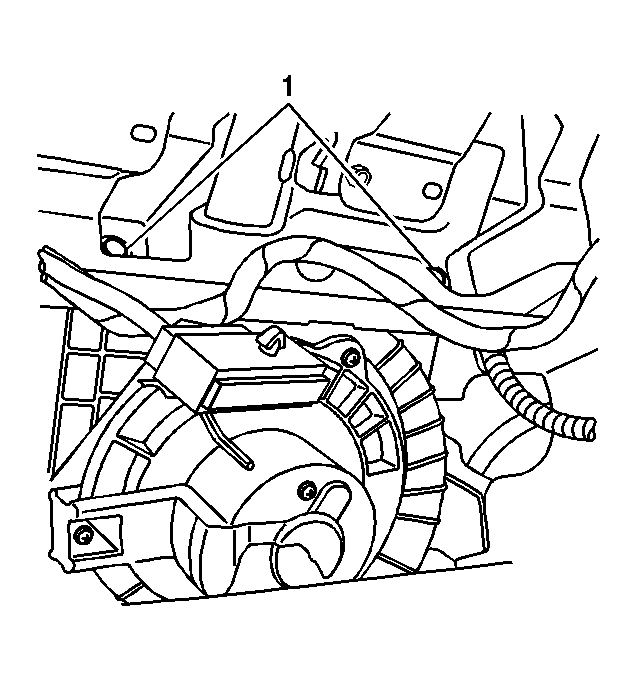

    3. Fig 3: Upper Air Inlet Assembly Bolts
    GM799133Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Install the upper air inlet assembly bolts (1) and tighten to 9 N.m (80 lb in).

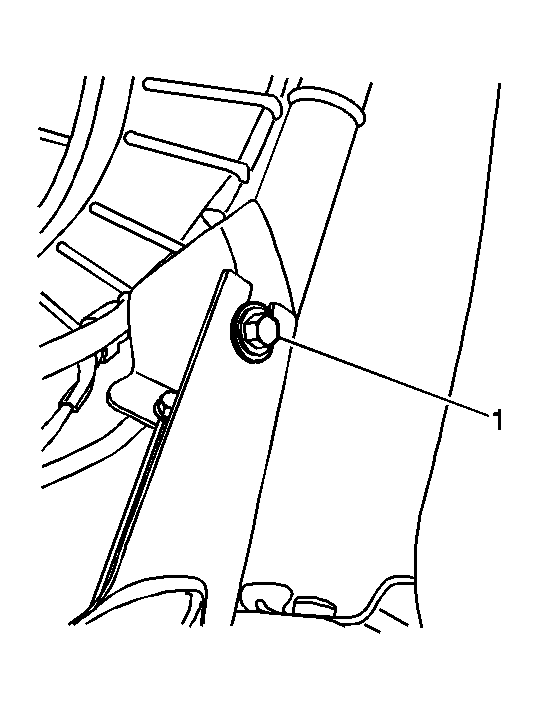

    4. Fig 4: Lower Right Air Inlet Assembly Bolt
    GM799121Courtesy of GENERAL MOTORS CORP.
  4. Install the lower right air inlet assembly bolt (1) and tighten to 9 N.m (80 lb in).
  5. Install the I/P compartment. Refer to Instrument Panel Compartment Replacement .
  6. Install the closeout panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side or Instrument Panel Insulator Panel Replacement - Left Side .
