Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

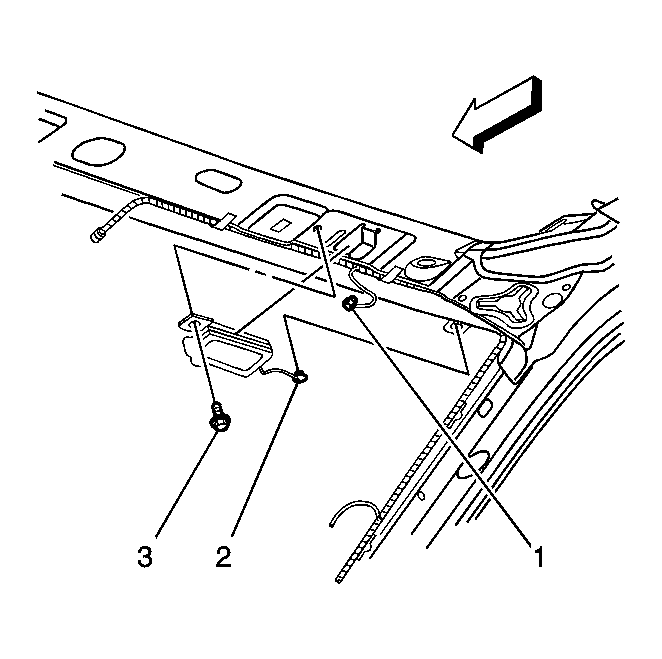

    Fig 1: View Of TV Antenna Amplifier - Front
    GM1245413Courtesy of GENERAL MOTORS CORP.
  1. Slide the antenna amplifier into the mounting bracket.
    2. NOTE: Refer to Fastener Notice .
  2. Install the bolt (3) securing the antenna amplifier to the vehicle.

    Tighten:  Tighten the bolt to 9 N.m (80 lb in).

  3. Connect the electrical connectors (1,2).
  4. Install the headliner. Refer to Headlining Trim Panel Replacement .
