Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Refer to Halogen Bulb Caution .
  1. Install the fog lamp bulb into the socket.

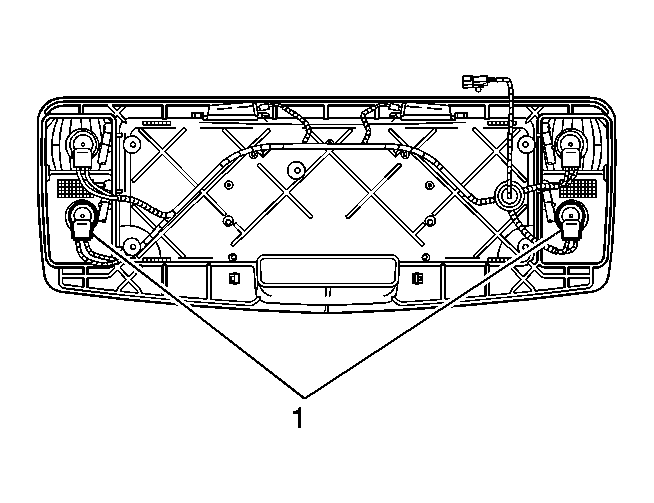

    2. Fig 1: Locating Fog Lamp Bulb Sockets
    GM1257684Courtesy of GENERAL MOTORS CORP.
  2. Install the fog lamp bulb socket (1) into the applique assembly by inserting and twisting the socket clockwise.
  3. Connect the electrical connector.
  4. Install the lift gate applique. Refer to Liftgate Applique Replacement .
