Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

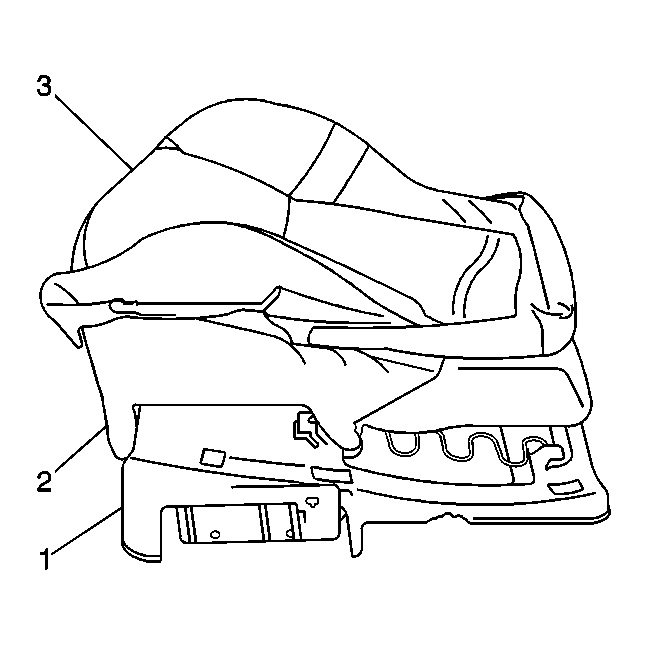

    Fig 1: Identifying Seat Cushion Pad, Frame & Cover
    GM715137Courtesy of GENERAL MOTORS CORP.
  1. Install the passenger presence system and seat cushion assembly (2) to the seat cushion frame (1).
  2. Install the seat cushion cover (3) over the passenger presence system and seat cushion assembly (2).
  3. Work the seat cushion (2) into position so there are no wrinkles or lumps in the seat cushion cover (3).
  4. Ensure the hook and loop fasteners on the seat cushion cover and the seat cushion pad are fully engaged in order to ensure proper fit of the seat cushion cover (3).
  5. Turn the seat cushion assembly over.

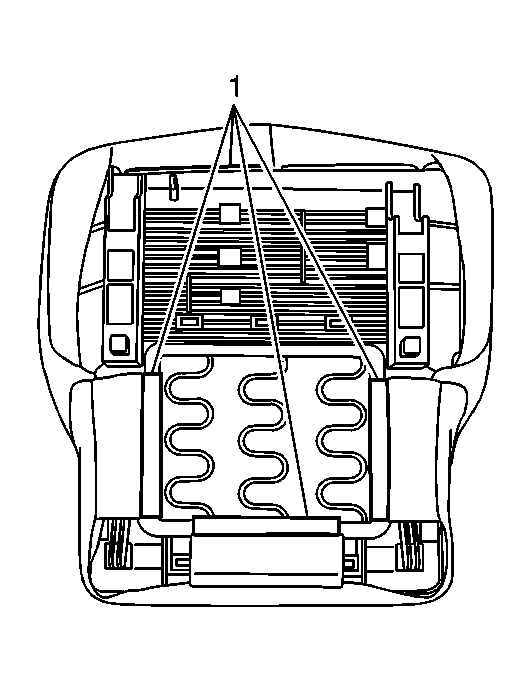

    6. Fig 2: Identifying Front Seat Cushion Cover J Channels
    GM715103Courtesy of GENERAL MOTORS CORP.
  6. Install the seat cushion cover J channels (1) to the seat cushion frame.
  7. Install the seat cushion to the seat assembly. Refer to Front Seat Cushion Replacement .
  8. Enable the SIR system. Refer to SIR Disabling and Enabling .
    9. IMPORTANT: Perform the passenger presence system preload test procedure when replacing the passenger seat or performing any repairs to the passenger seat.
  9. Perform the passenger presence system preload test procedure. Refer to Control Module References .
