Front Seat Adjuster Replacement

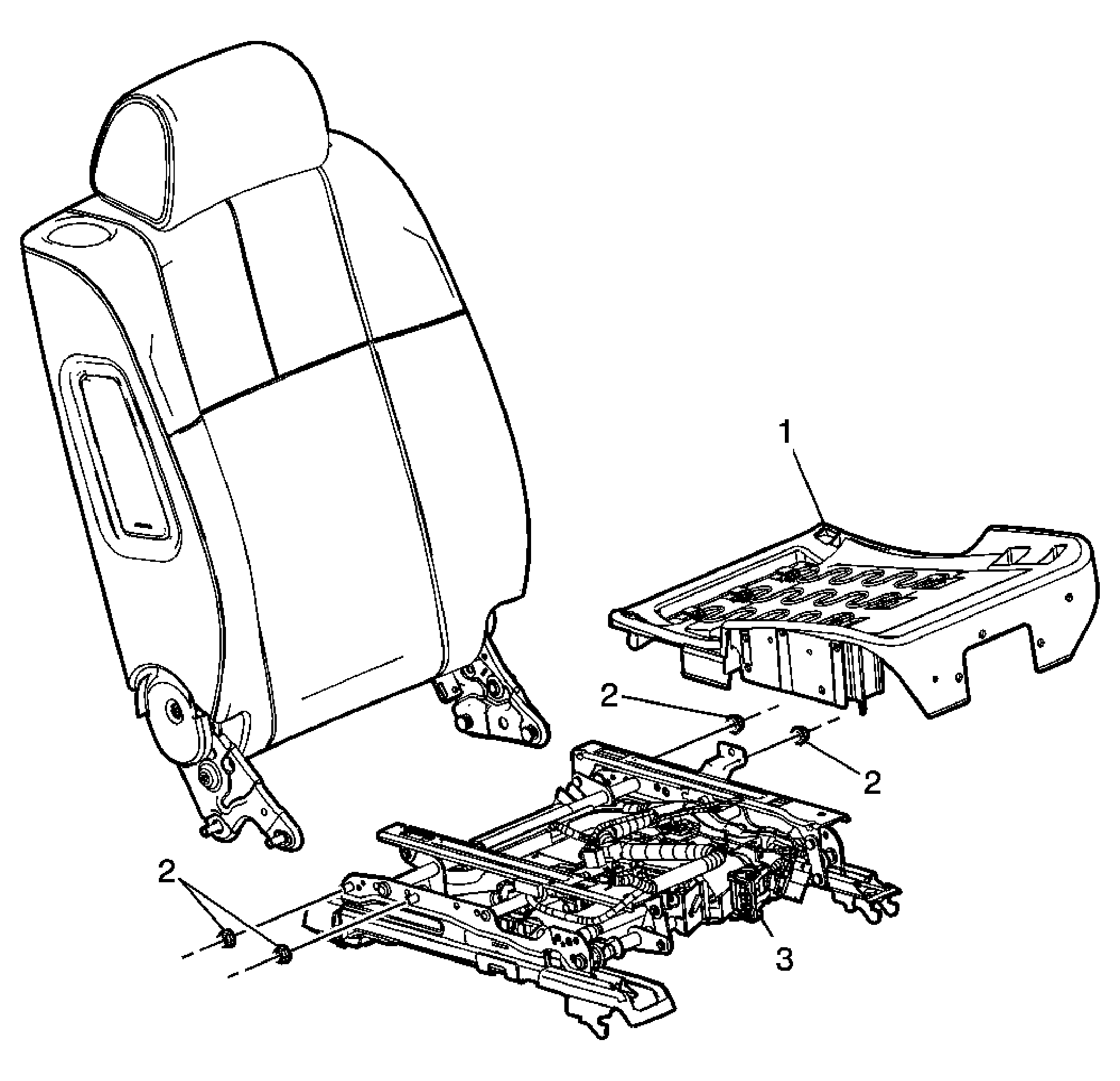

Courtesy of GENERAL MOTORS CORP. Front Seat Adjuster Replacement
| Callout |
Component Name |
|
Preliminary Procedure
- Remove the front seat. Refer to Seat Replacement - Bucket
.
- Remove the seat cushion cover and pad. Refer to Seat Cushion Cover and Pad Replacement - Front
.
- Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Control Module References
.
|
| 1 |
Seat Cushion Frame
Tip:
- Pull up from the front and slide forward to remove the adjuster assembly.
- Disconnect the electrical connectors and wiring from the seat cushion frame.
- If replacing the frame, transfer the components as necessary.
|
| 2 |
Seat Back Frame Nut (Qty: 4)
Tighten:
30 N.m (22 lb ft)
|
| 3 |
Front Seat Adjuster
Tip:
Disconnect electrical connectors. |
