Ground Distribution Schematics

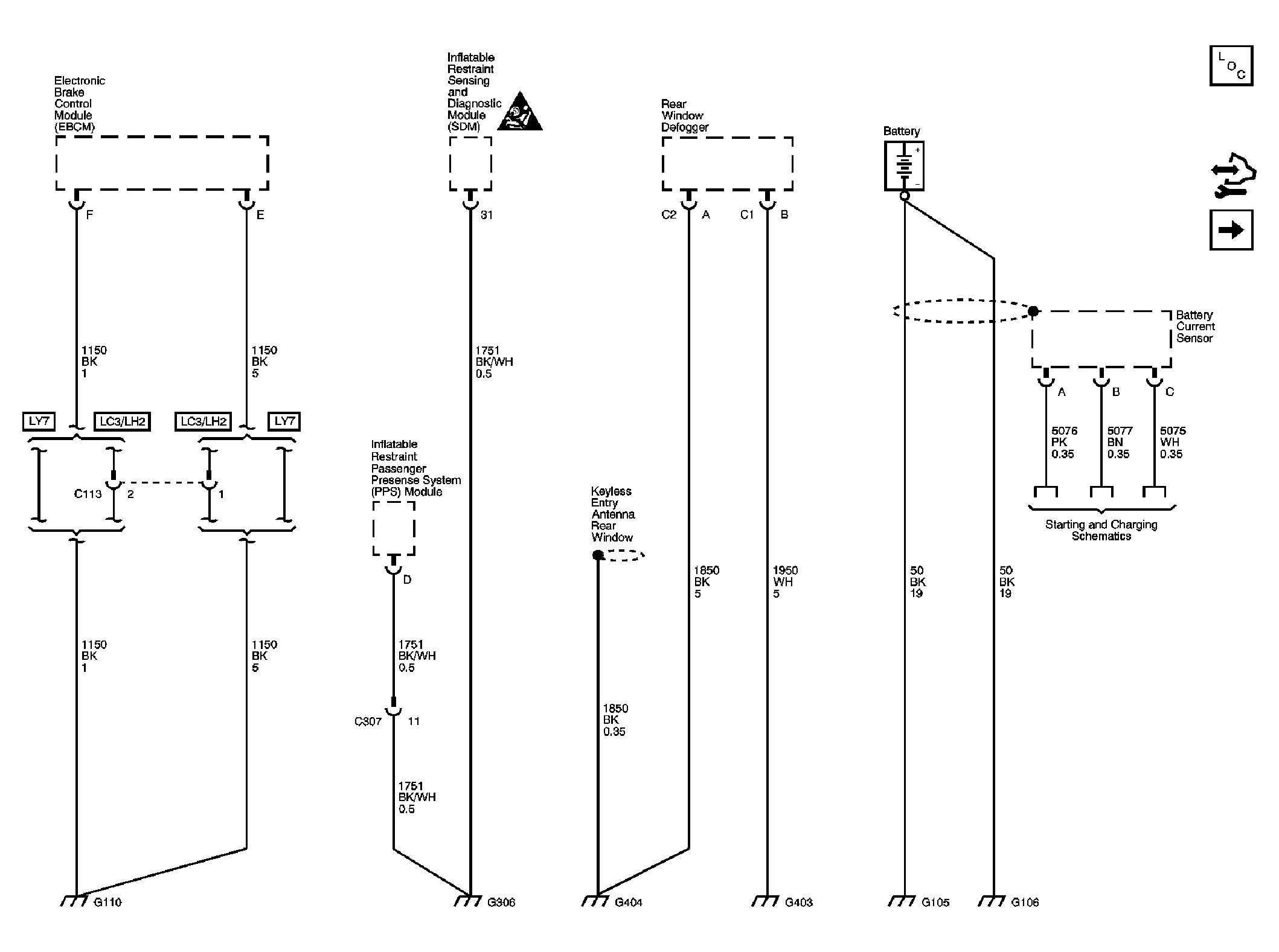

Fig 1: G105, G106, G110, G306, G403 and G404 Schematic

Courtesy of GENERAL MOTORS CORP.

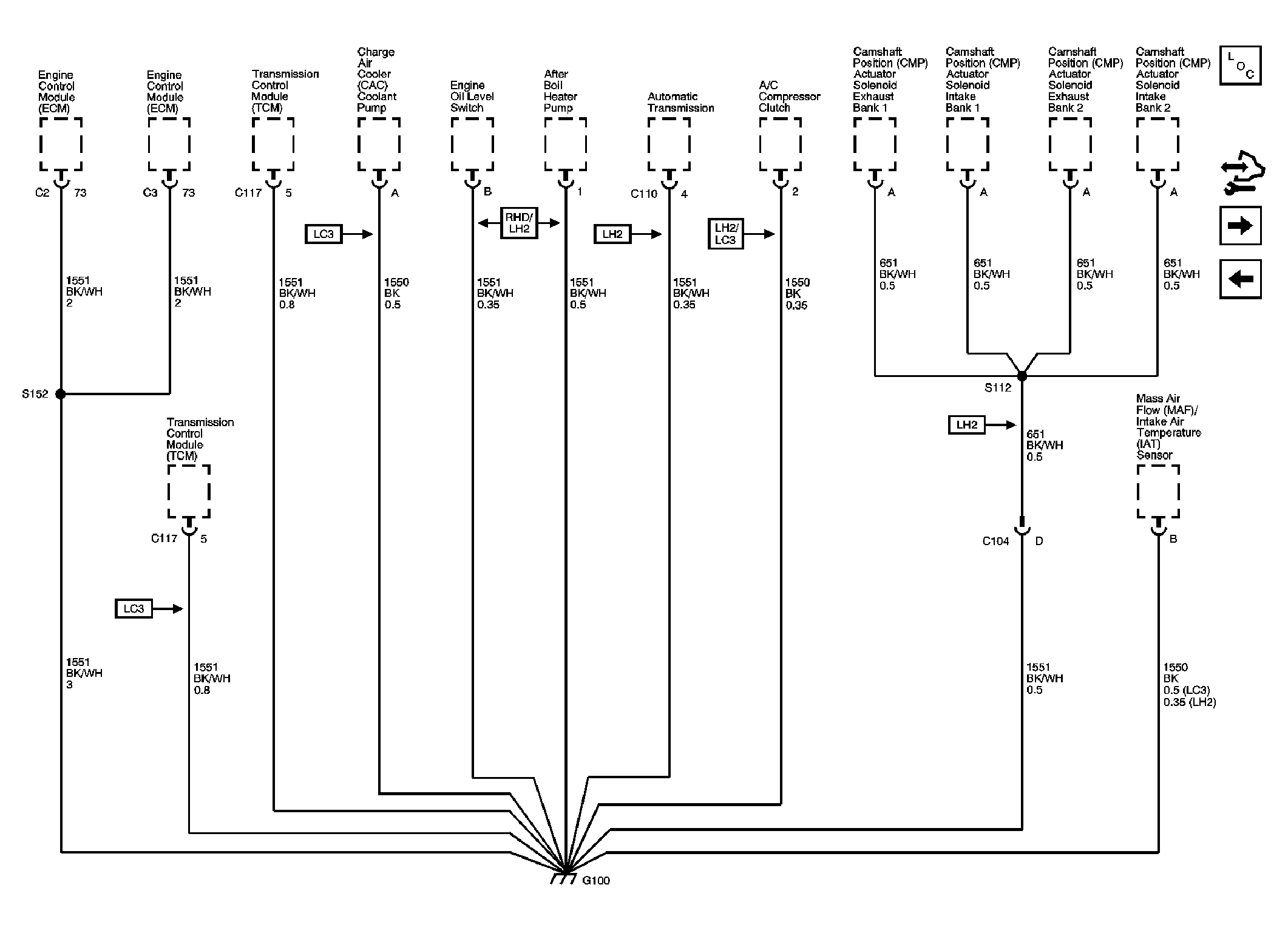

Fig 2: G100 (LH2) Schematic

Courtesy of GENERAL MOTORS CORP.

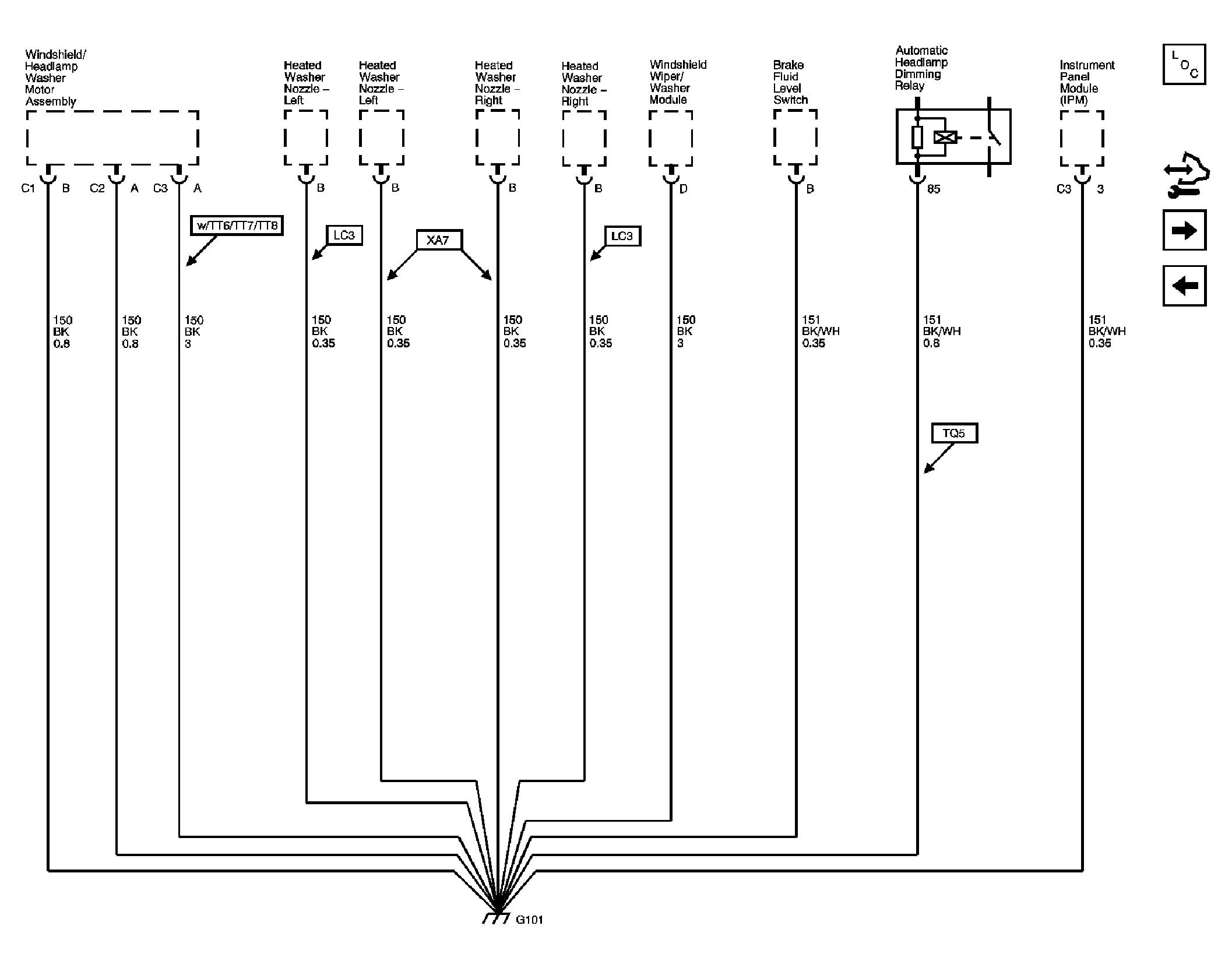

Fig 3: G101 Schematic

Courtesy of GENERAL MOTORS CORP.

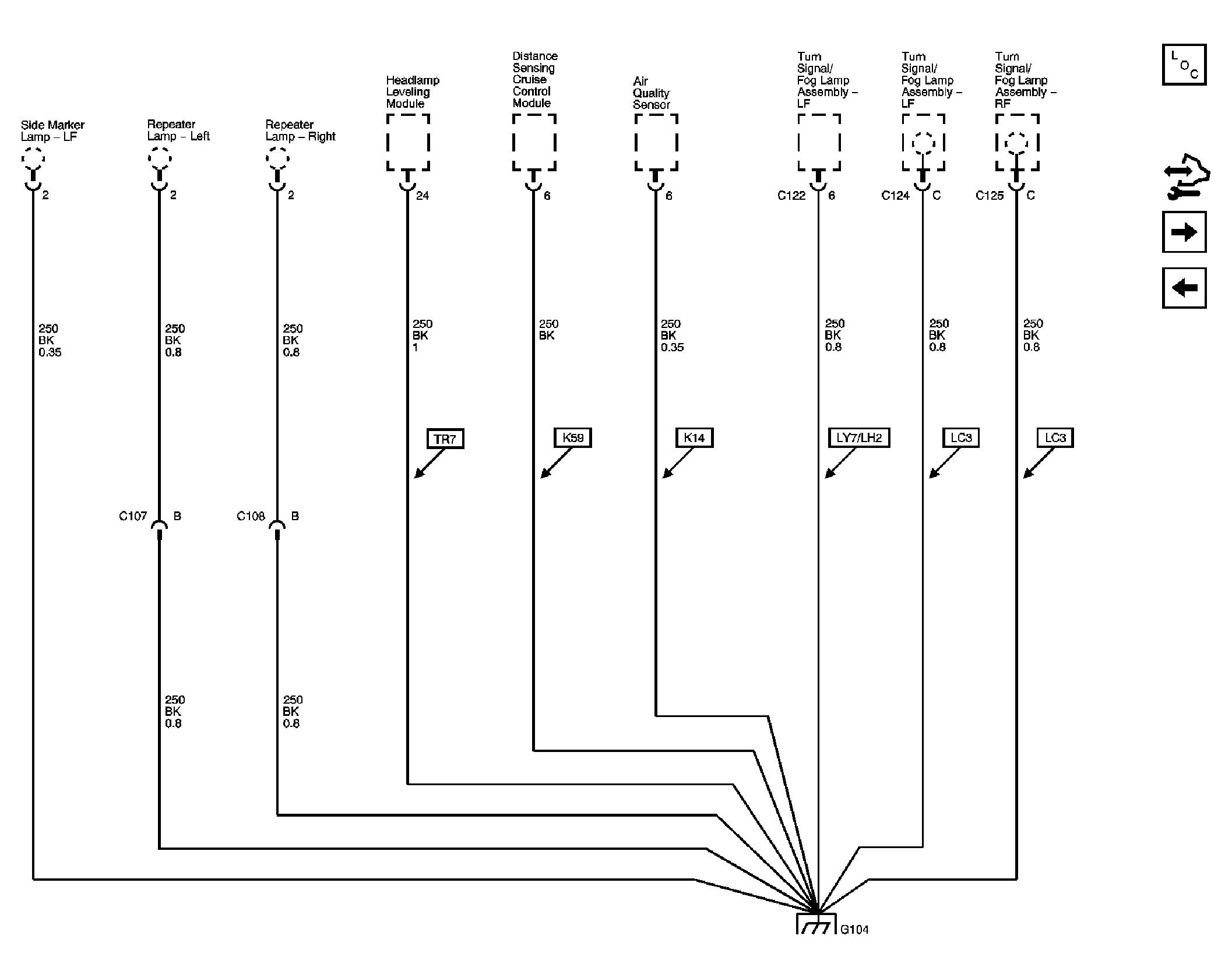

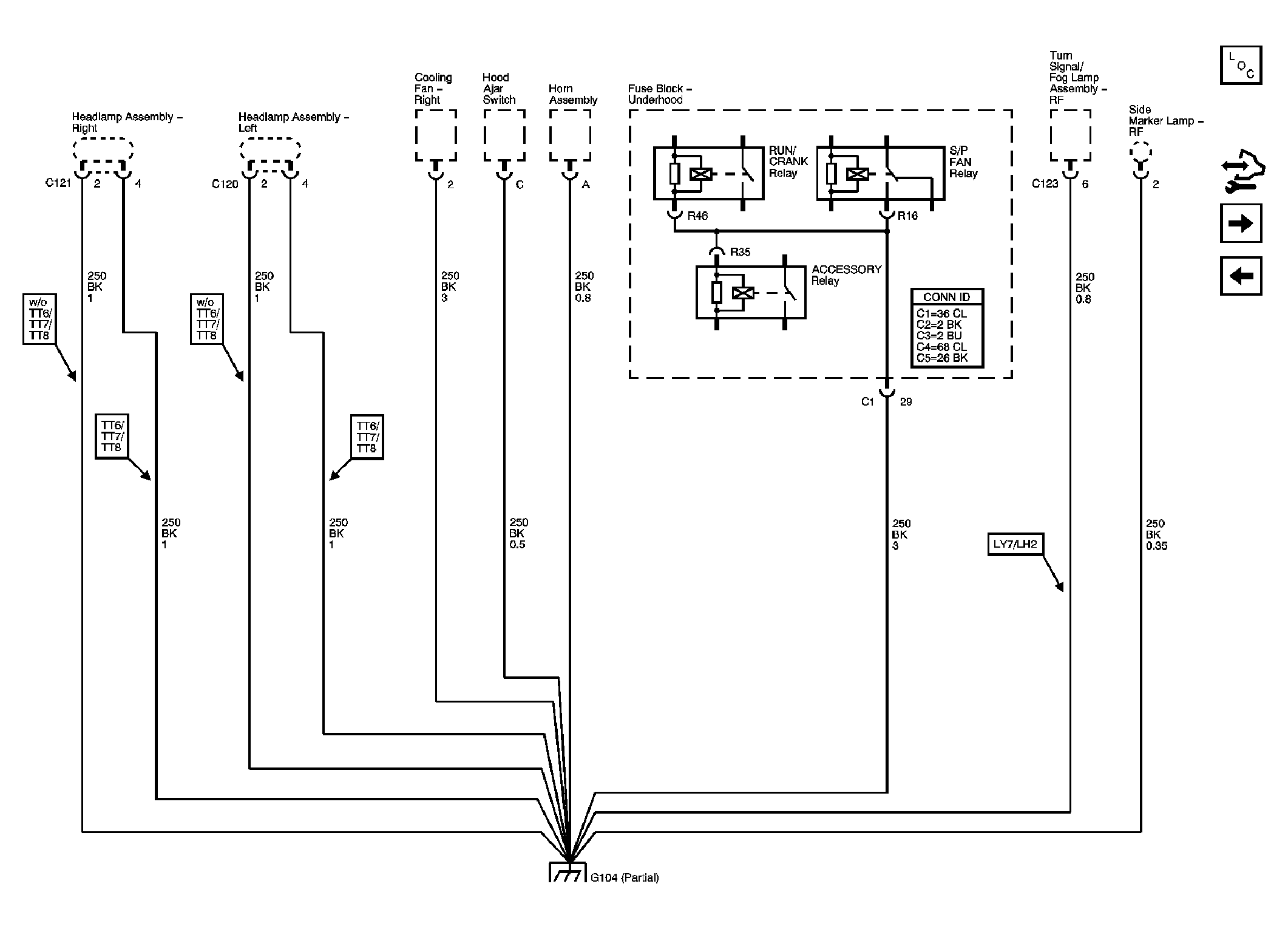

Fig 4: G104 1 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: G104 2 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

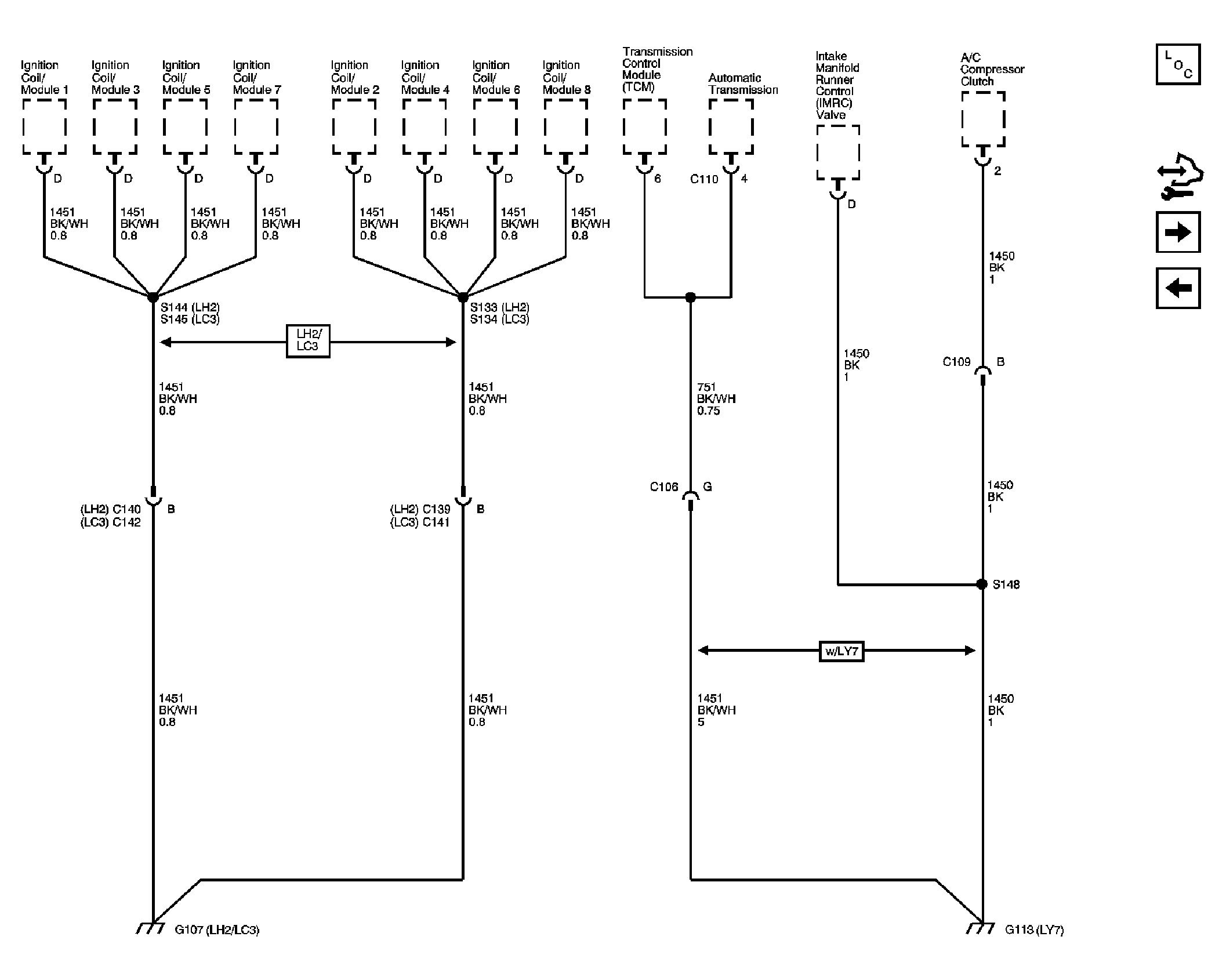

Fig 6: G107 (LH2), G113 (LY7) Schematic

Courtesy of GENERAL MOTORS CORP.

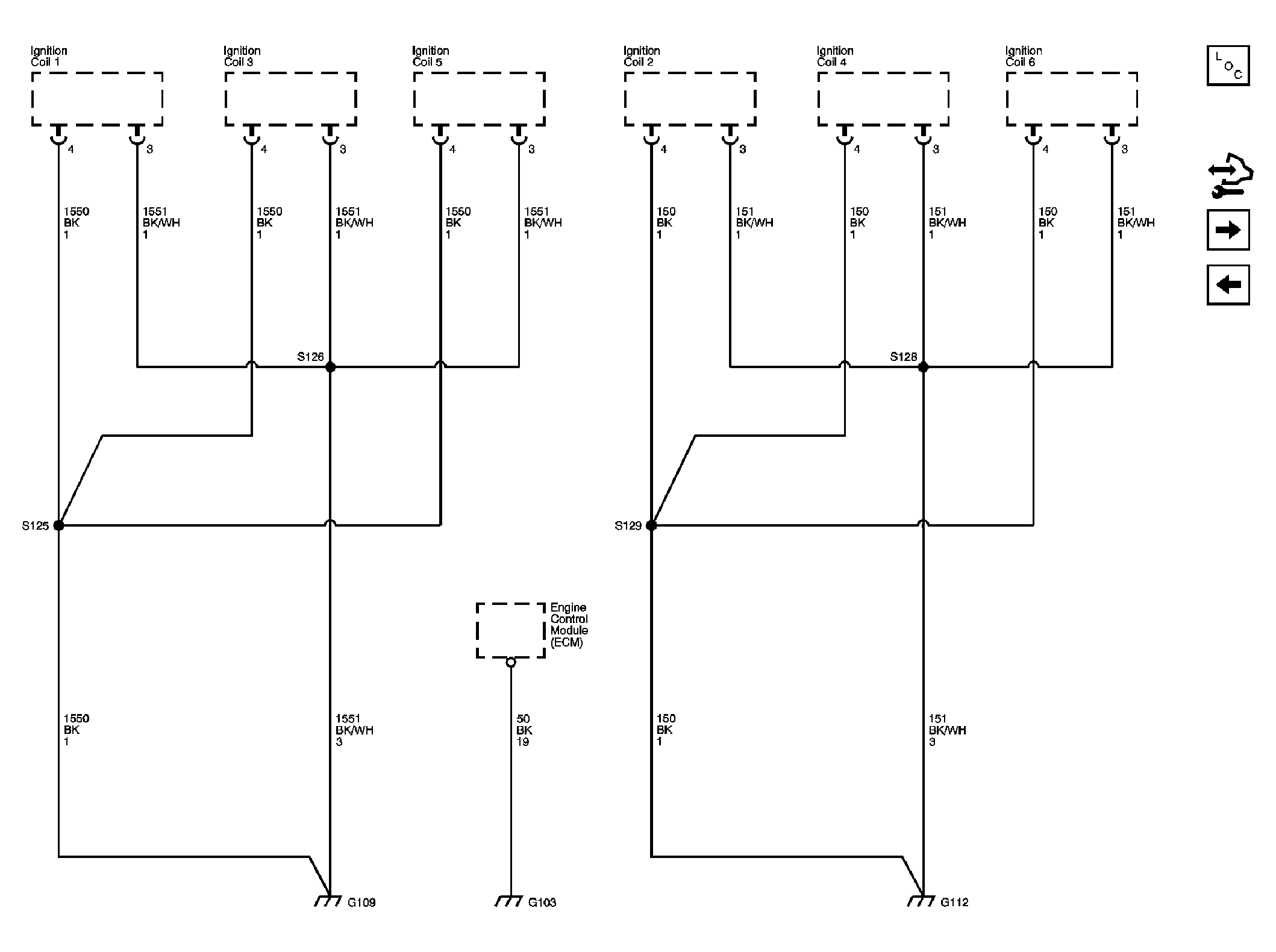

Fig 7: G103 (LY7), G109 (LY7), G112 (LY7) Schematic

Courtesy of GENERAL MOTORS CORP.

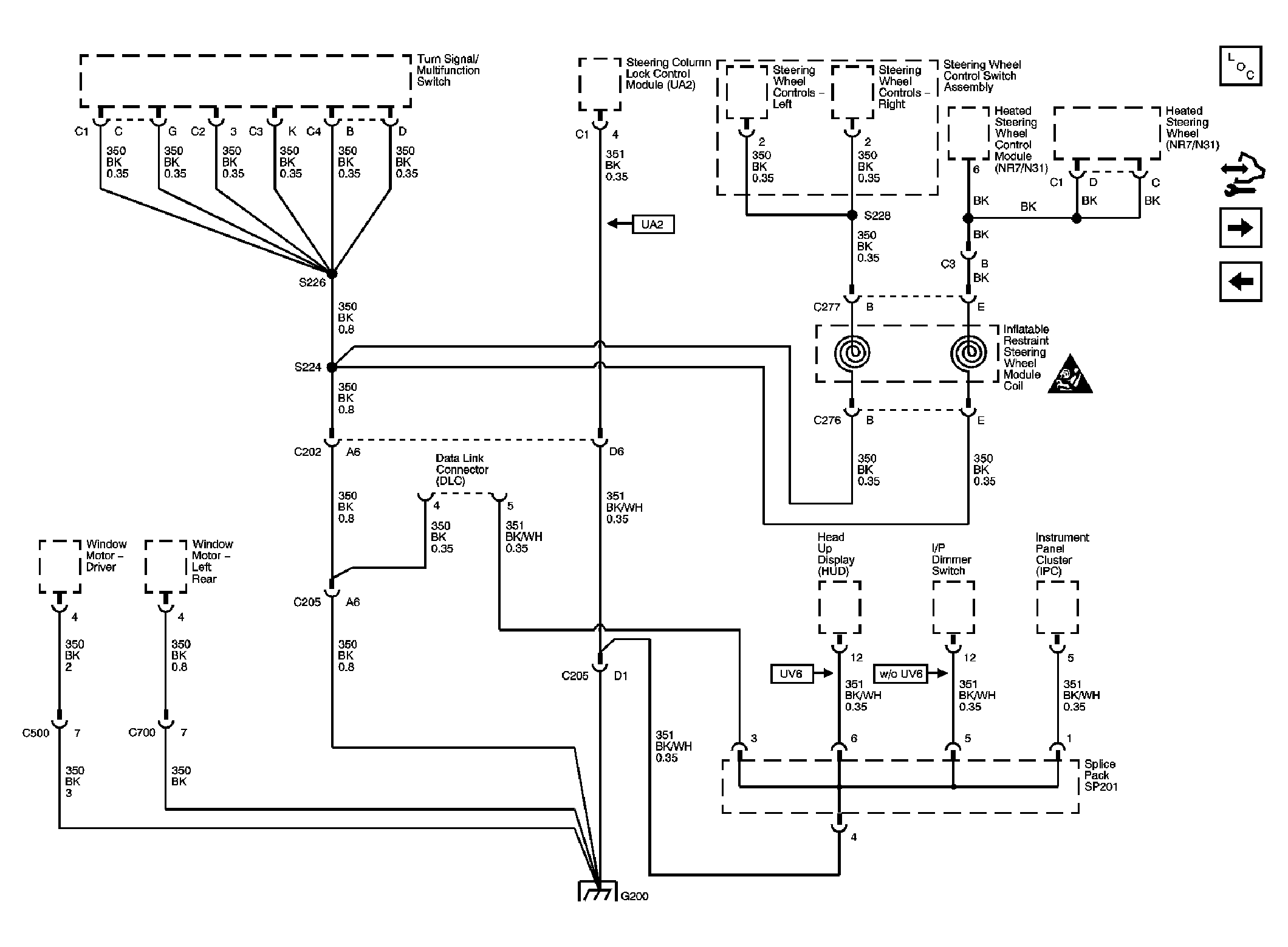

Fig 8: G200 1 of 2

Courtesy of GENERAL MOTORS CORP.

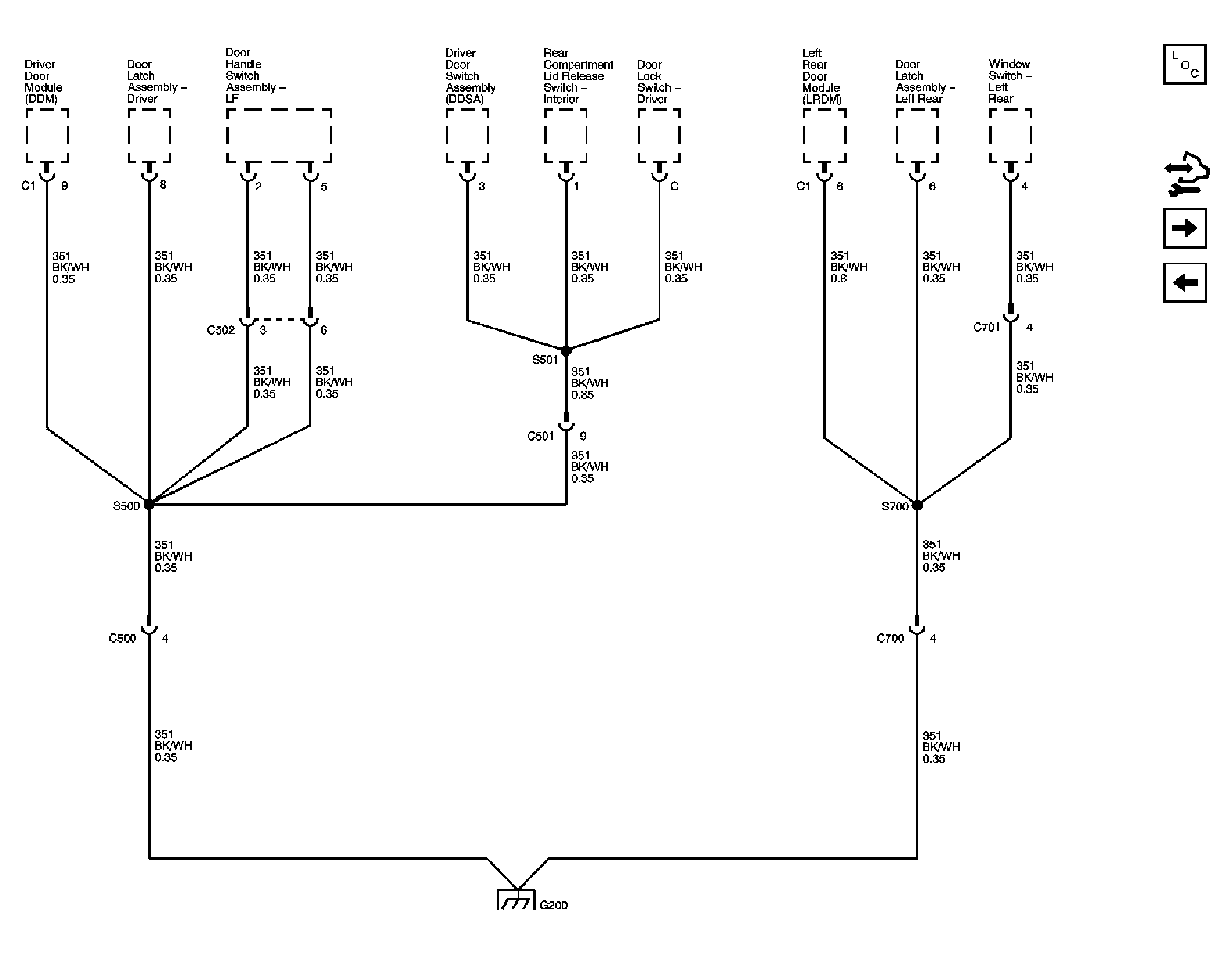

Fig 9: G200 2 of 2

Courtesy of GENERAL MOTORS CORP.

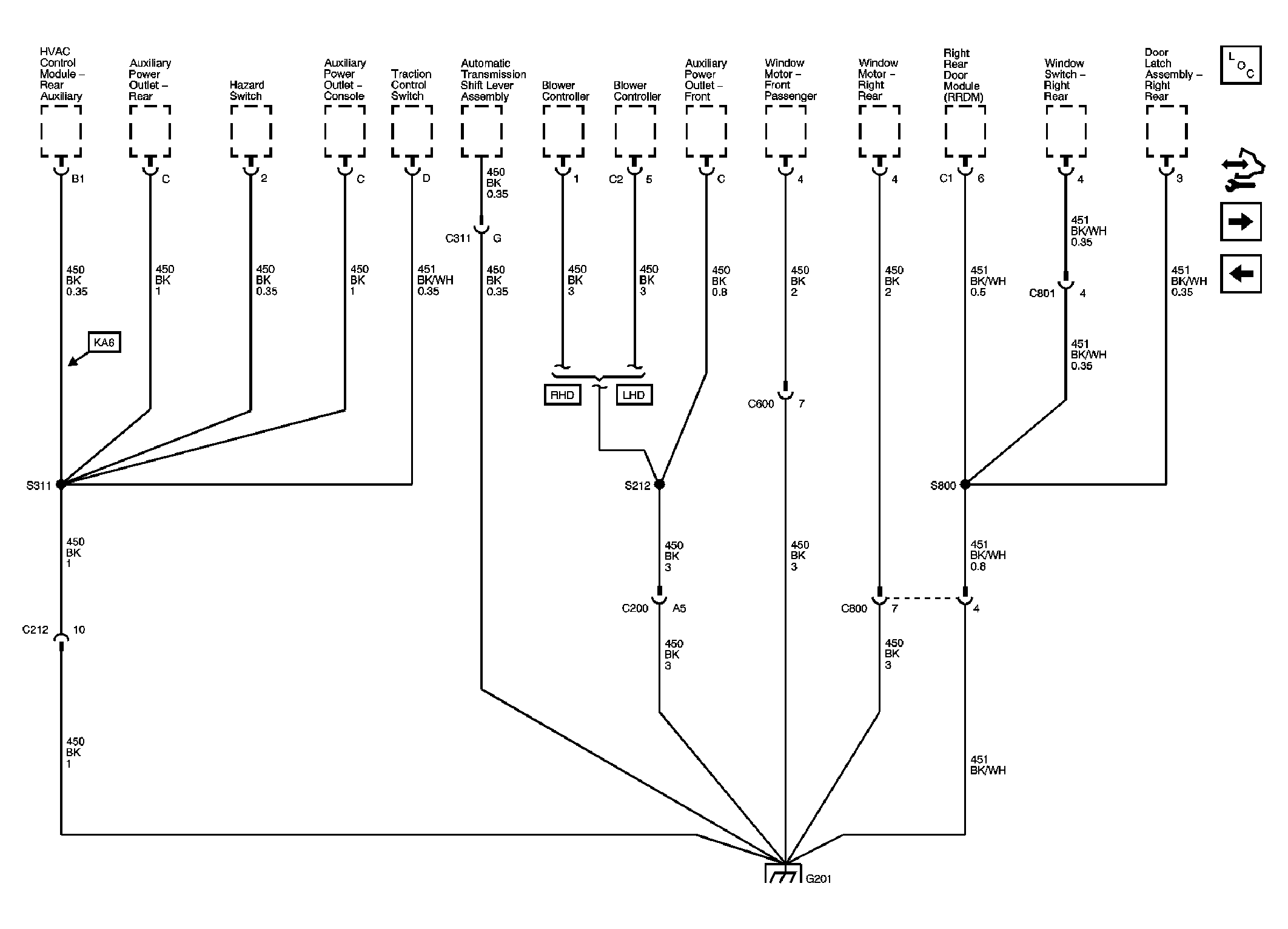

Fig 10: G201 1 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

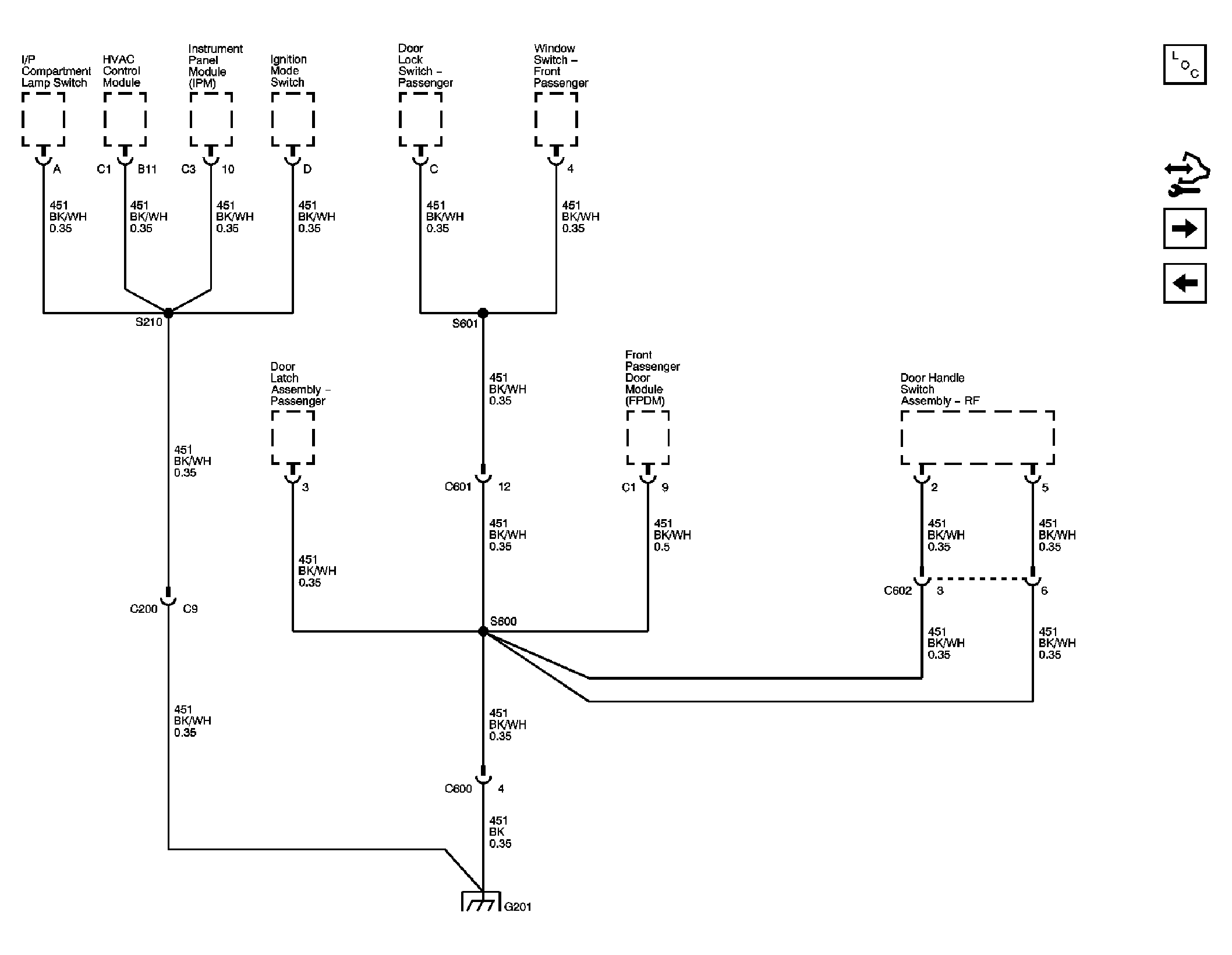

Fig 11: G201 2 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

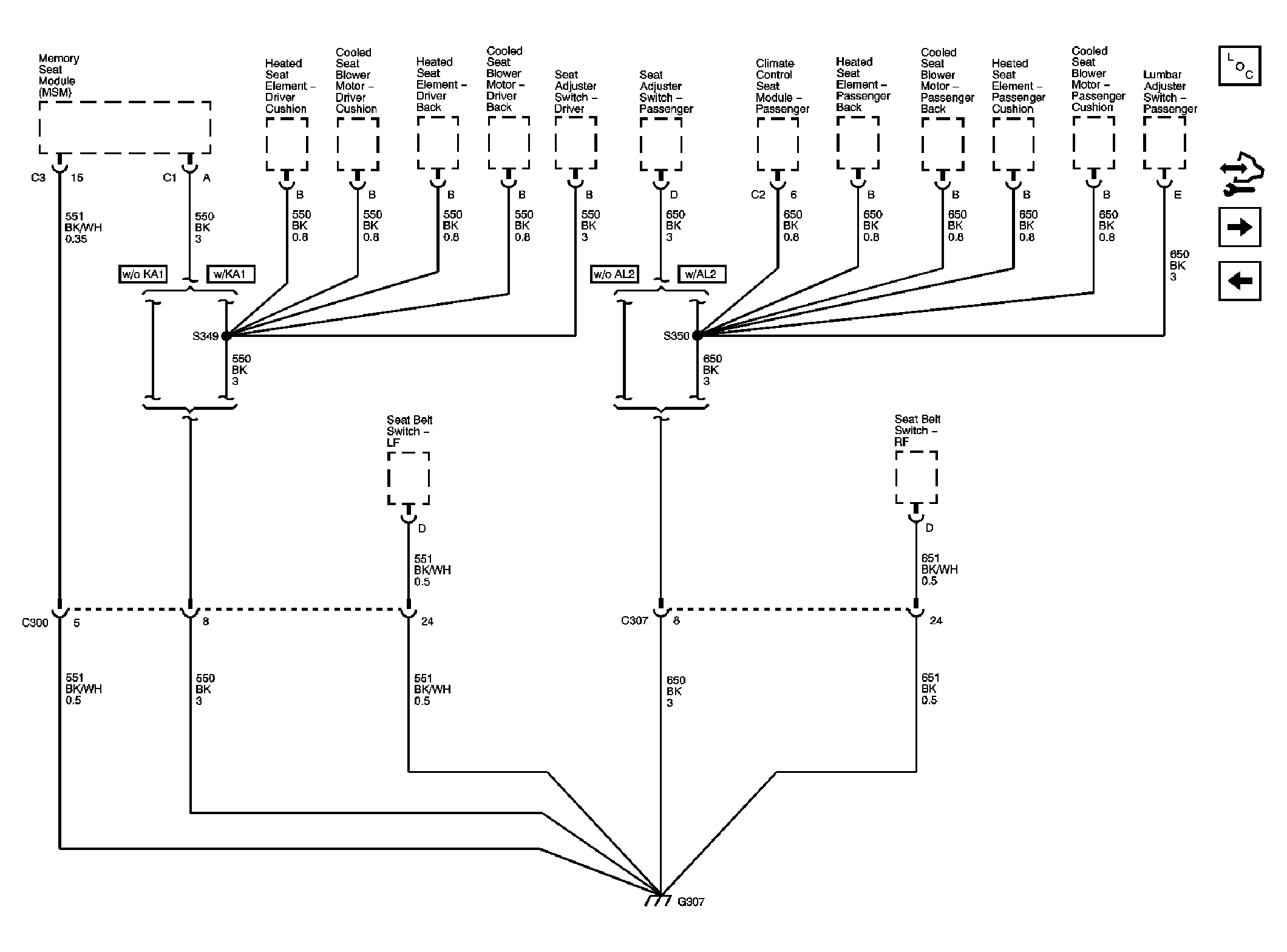

Fig 12: G307 (LHD) Schematic

Courtesy of GENERAL MOTORS CORP.

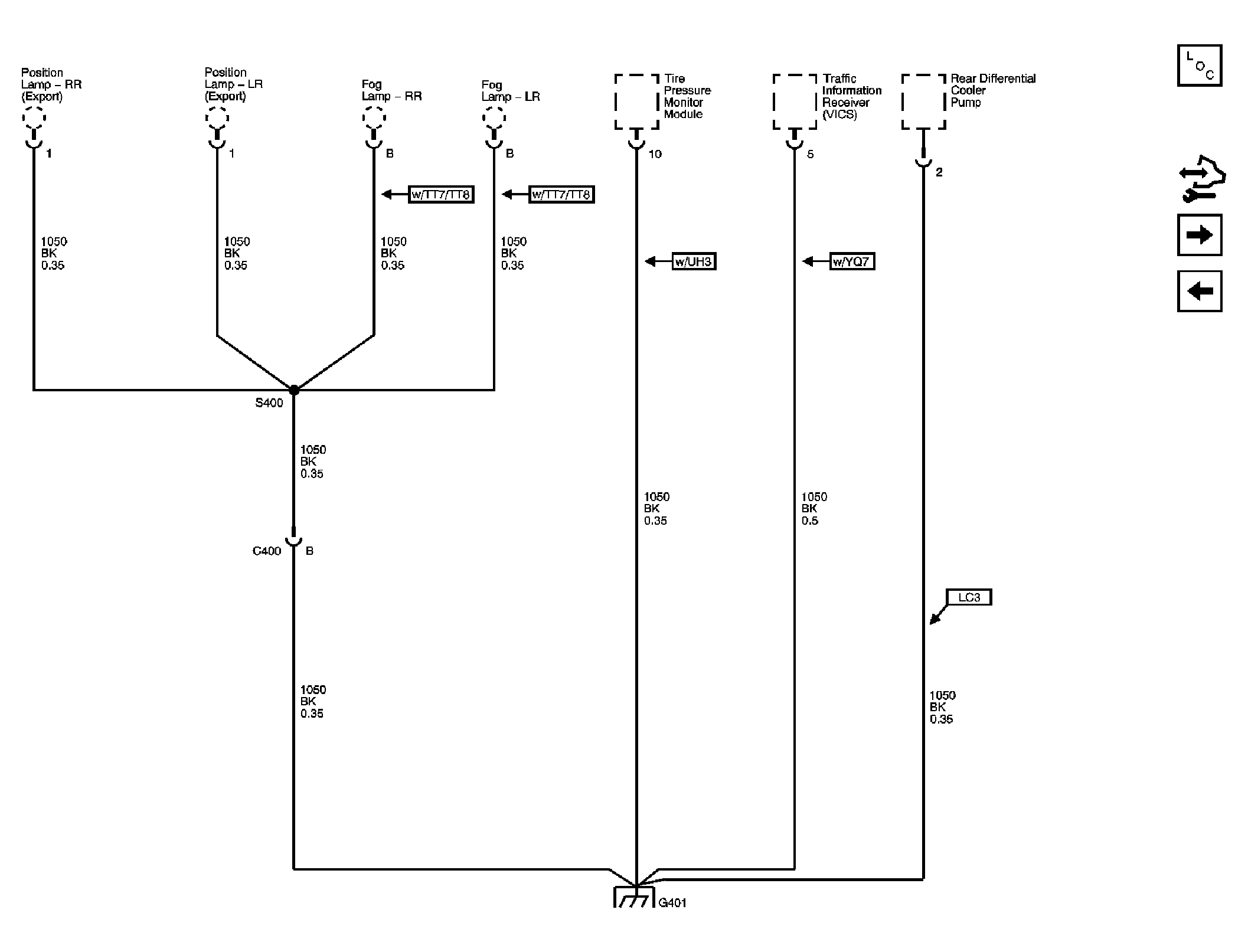

Fig 13: G401 1 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 14: G401 2 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

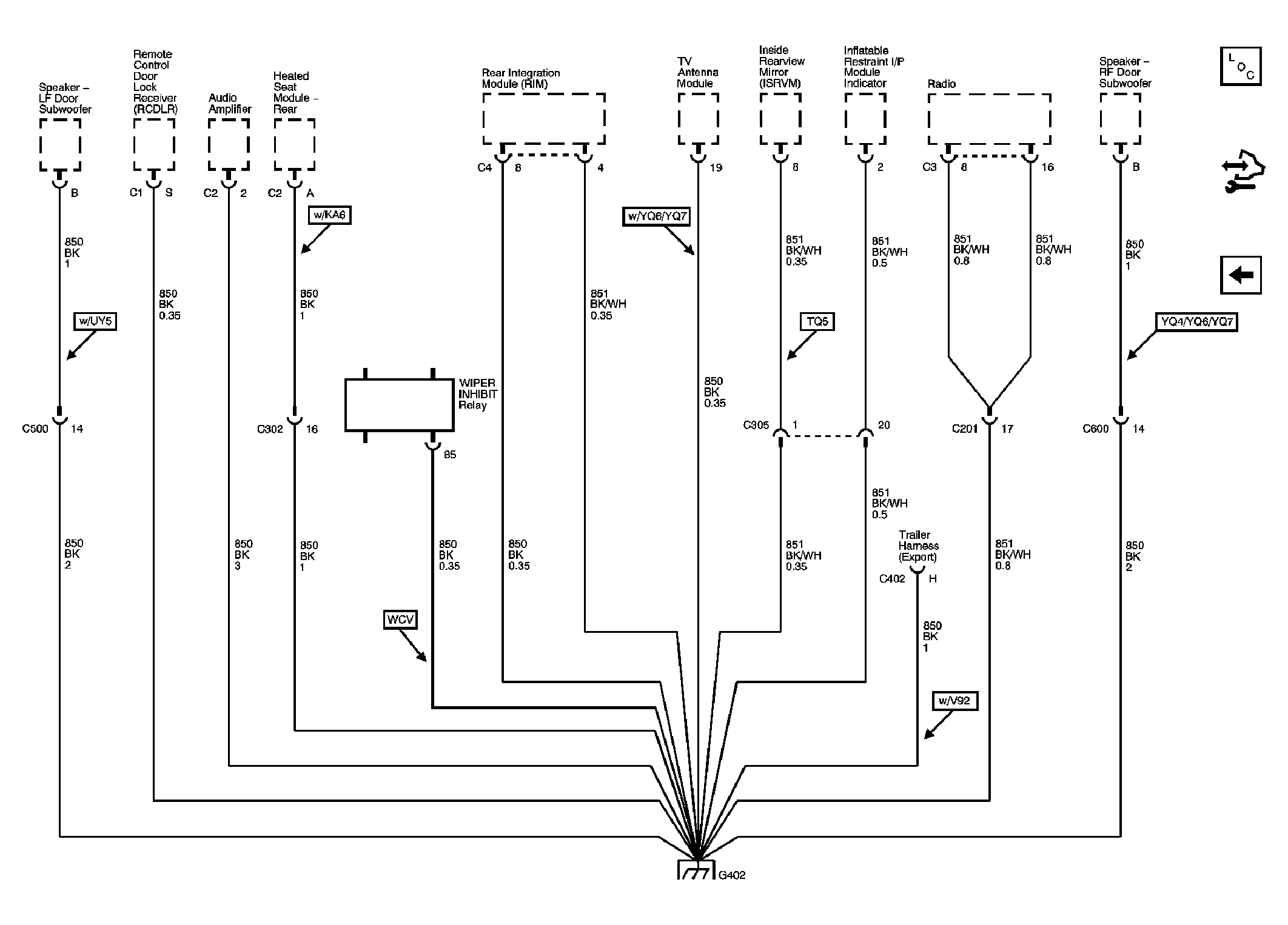

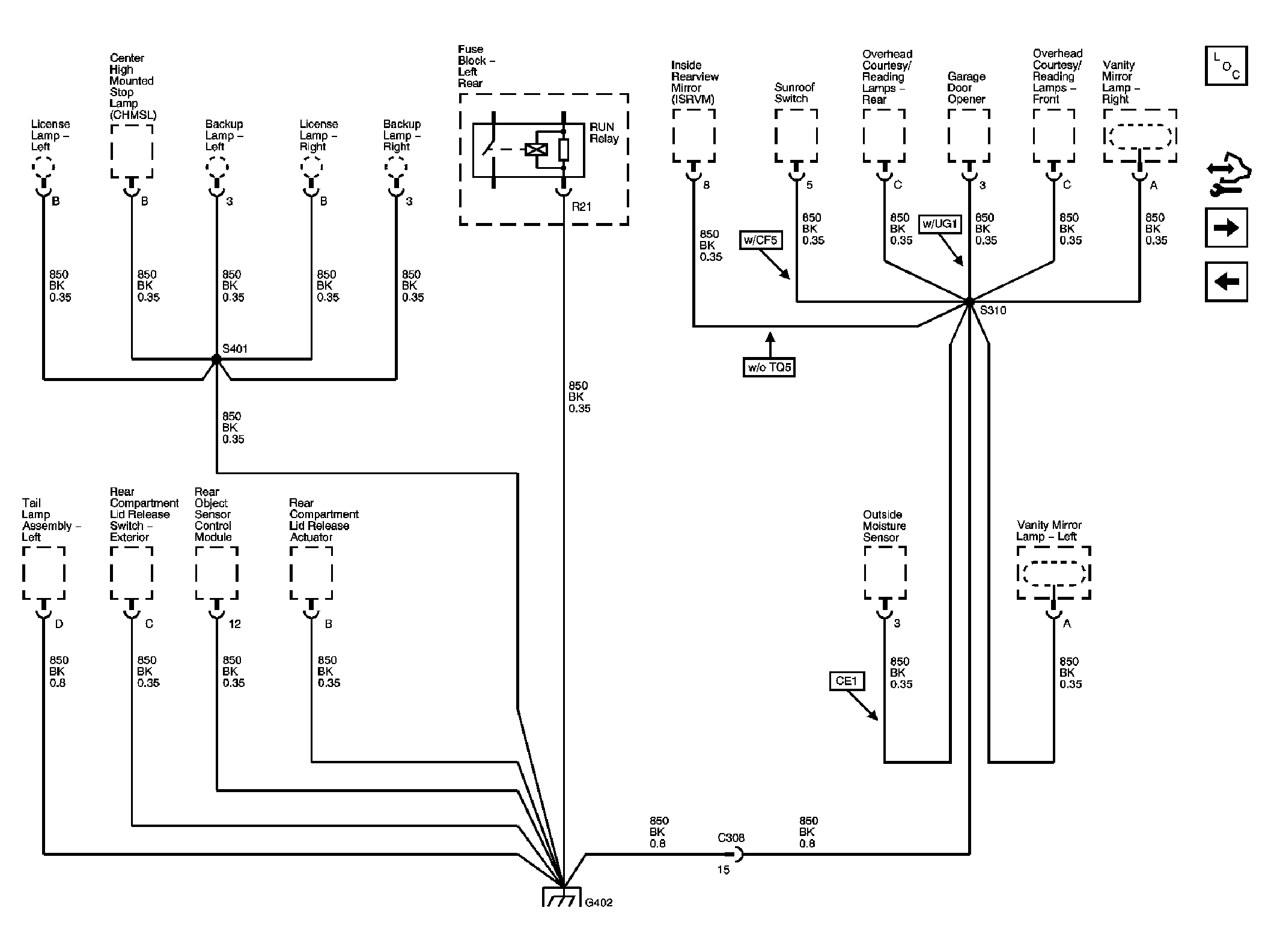

Fig 15: G402 1 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

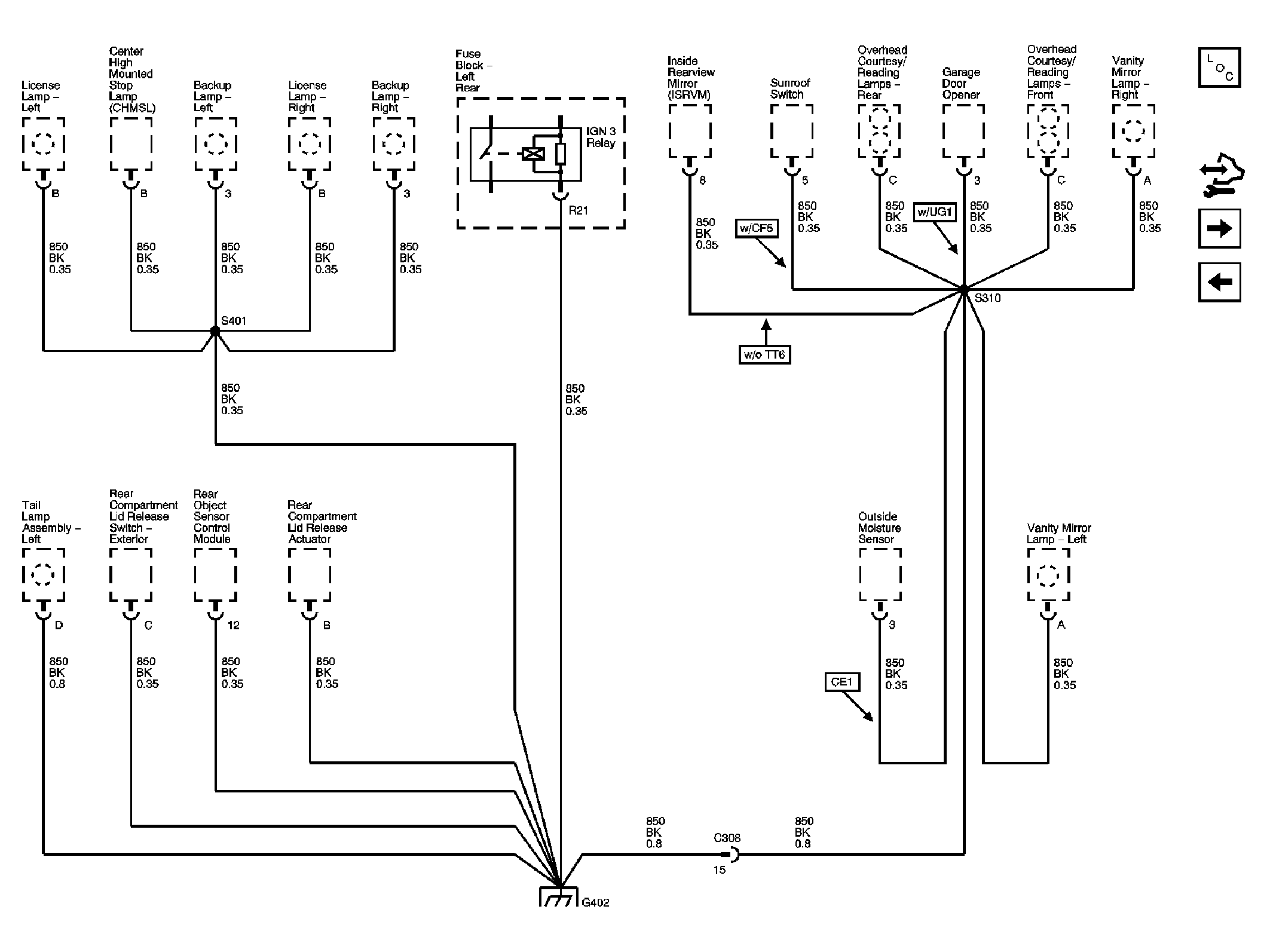

Fig 16: G402 2 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.
