Immobilizer Schematics

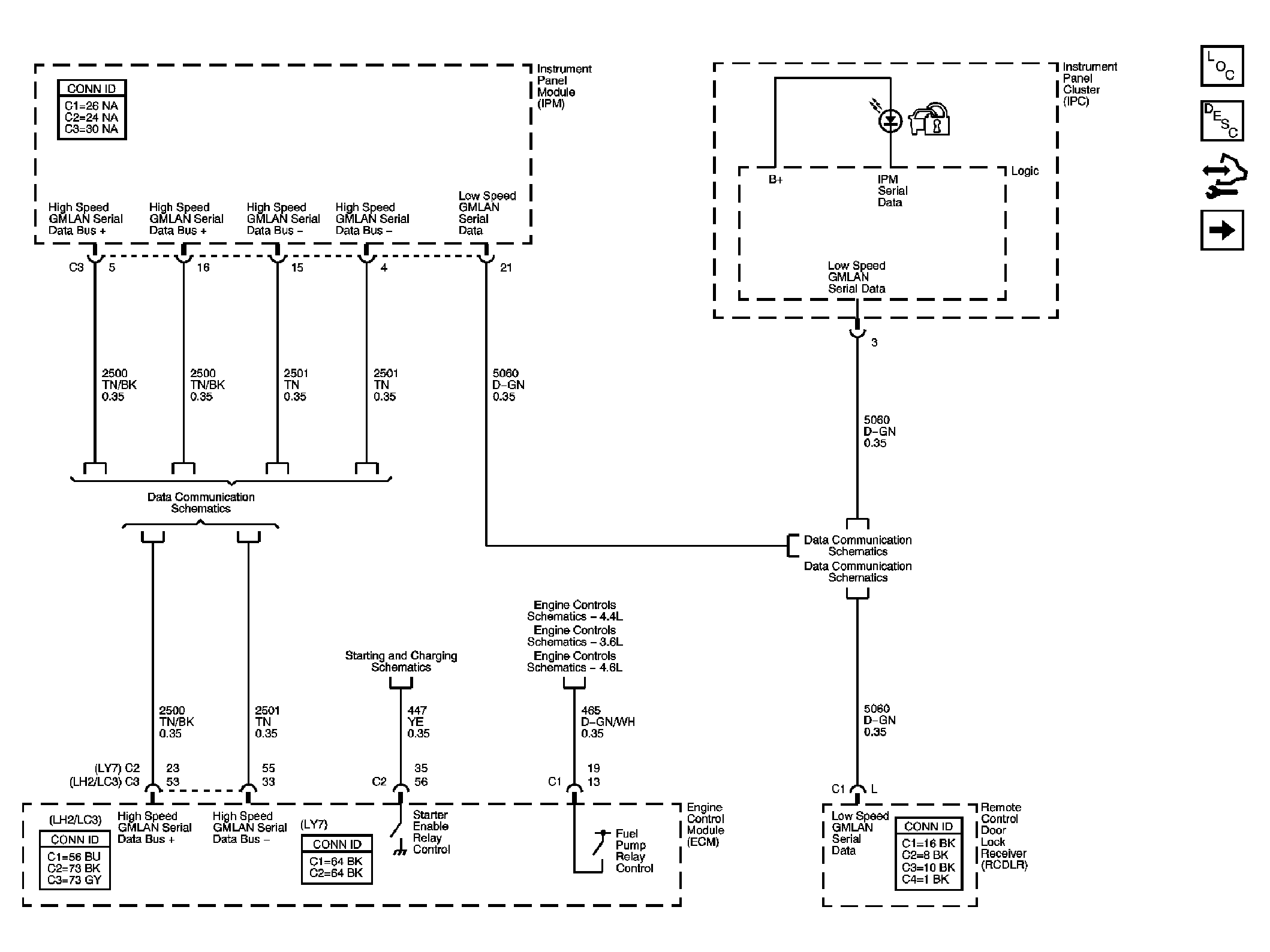

Fig 1: Immobilizer Schematic

GM1822978

Courtesy of GENERAL MOTORS CORP.

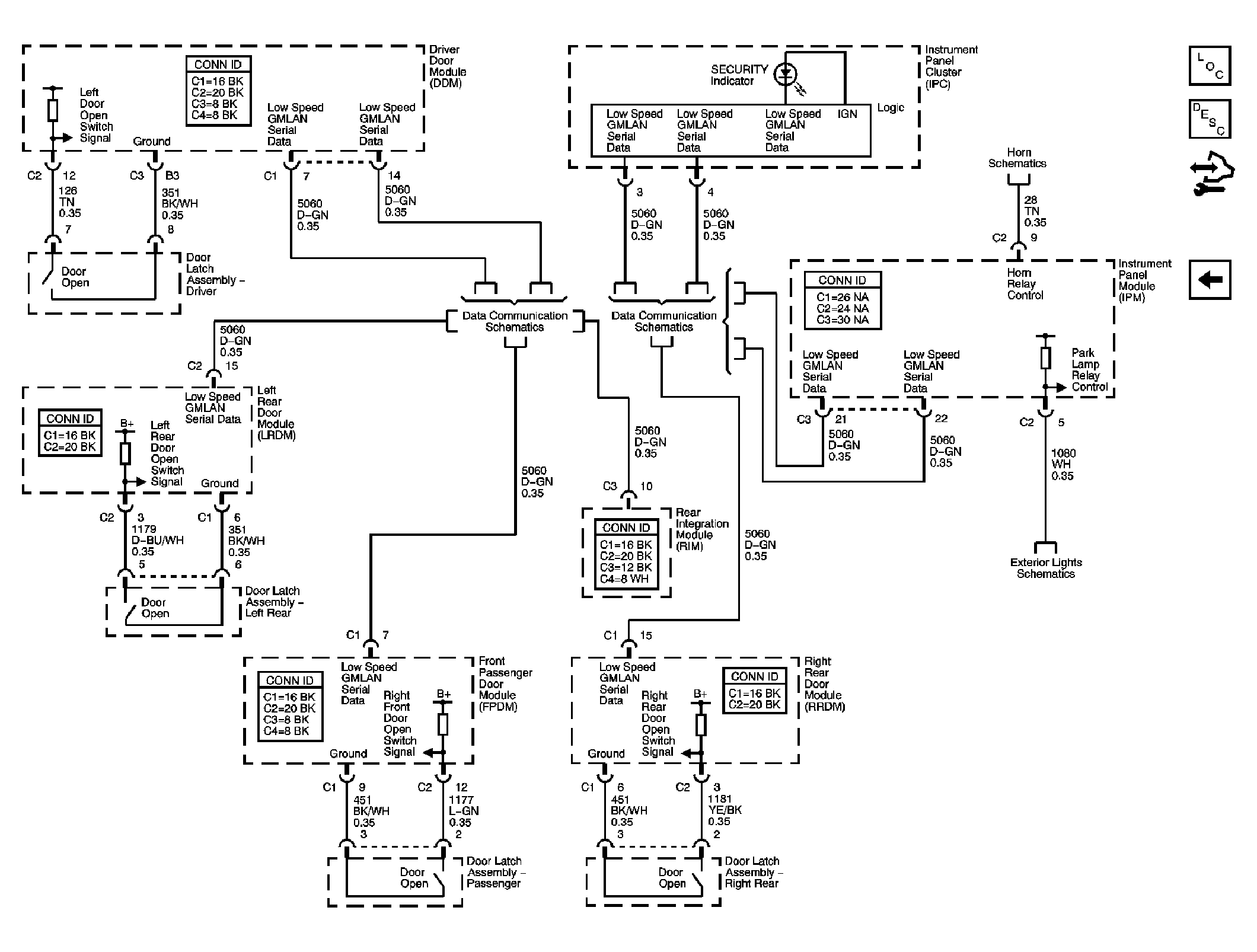

Fig 2: Door Modules and Horn Schematic

GM1822980

Courtesy of GENERAL MOTORS CORP.
