Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Below Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 2: Front Of Engine (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 4: Behind Right Front Bumper
Courtesy of GENERAL MOTORS CORP.
Fig 5: Third Row Folding Seats
Courtesy of GENERAL MOTORS CORP.
Fig 6: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 7: Right Rear Of Vehicle, Behind Trim Panel
Courtesy of GENERAL MOTORS CORP.
Fig 8: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 9: Automatic Transmission Shift Lock Control
Courtesy of GENERAL MOTORS CORP.
Fig 10: Lower Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 11: Driver Door
Courtesy of GENERAL MOTORS CORP.
Fig 12: Front Passenger Door
Courtesy of GENERAL MOTORS CORP.
Fig 13: Center Of Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 14: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

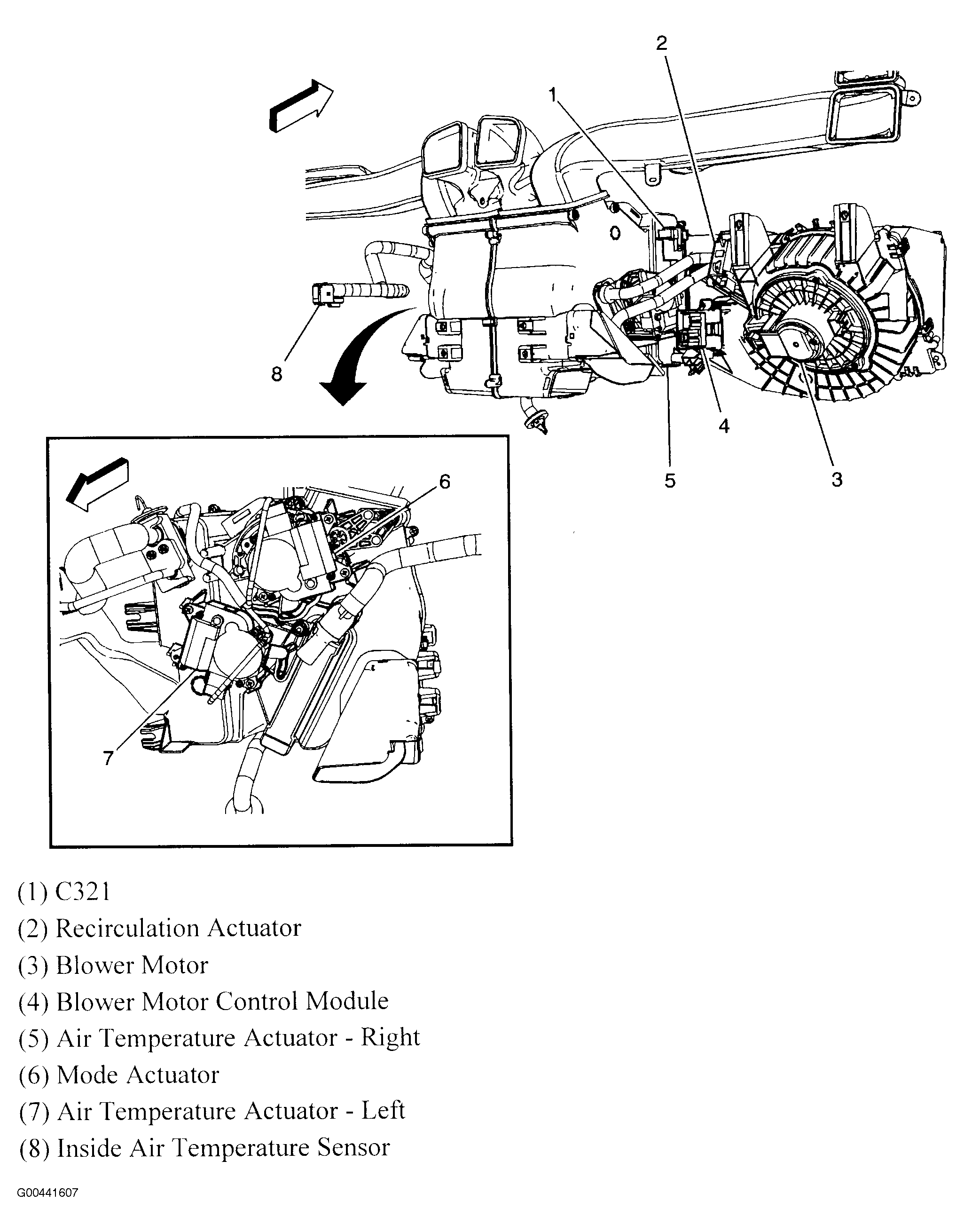

Fig 15: HVAC Module Components
Courtesy of GENERAL MOTORS CORP.
Fig 16: Air Quality Sensor
Courtesy of GENERAL MOTORS CORP.

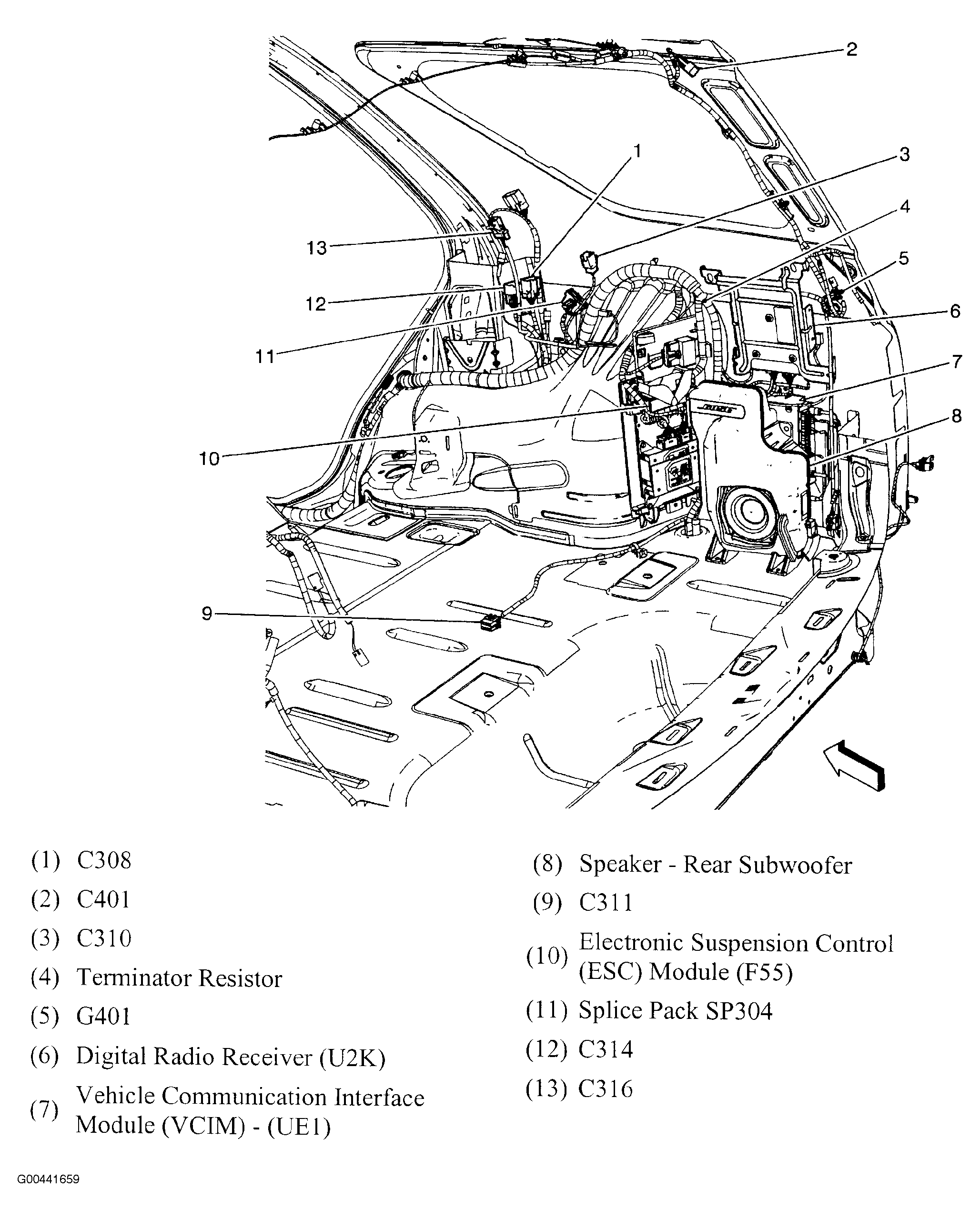

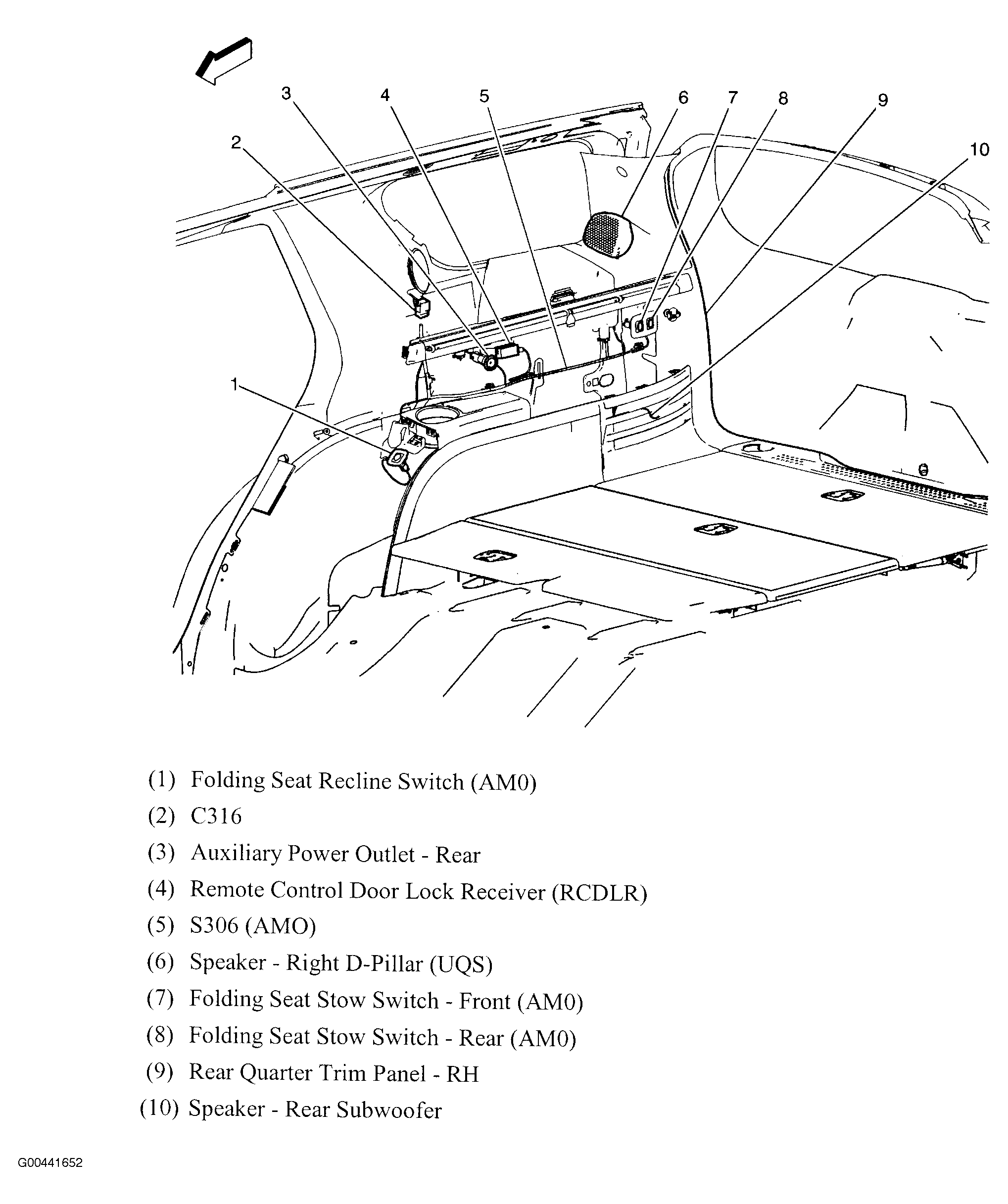

Fig 17: Rear Cargo Area
Courtesy of GENERAL MOTORS CORP.
Fig 18: Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

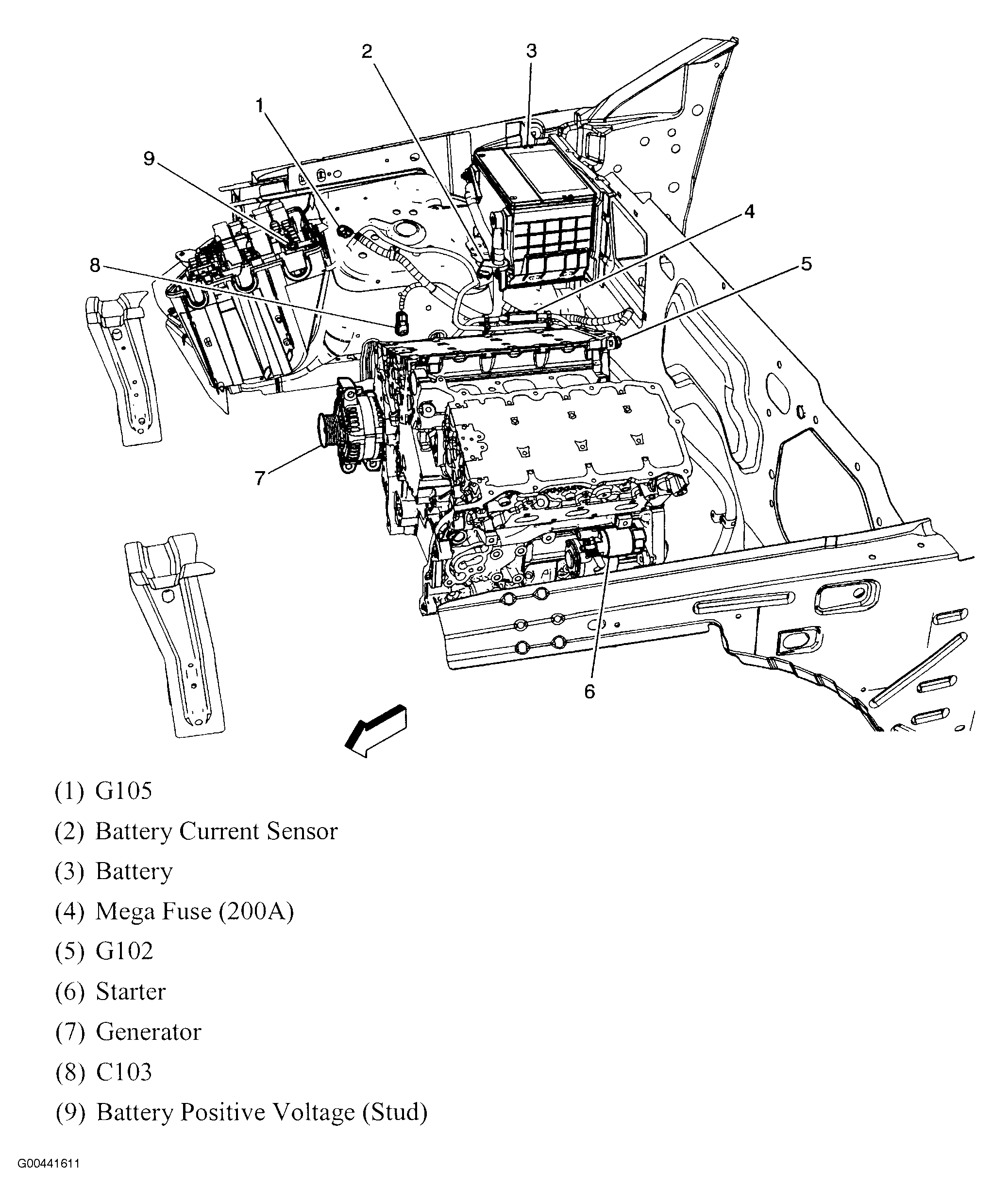

Fig 19: Battery
Courtesy of GENERAL MOTORS CORP.
Fig 20: Left Rear Of Cargo Area
Courtesy of GENERAL MOTORS CORP.
Fig 21: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 22: Accelerator Pedal & Brake Components
Courtesy of GENERAL MOTORS CORP.

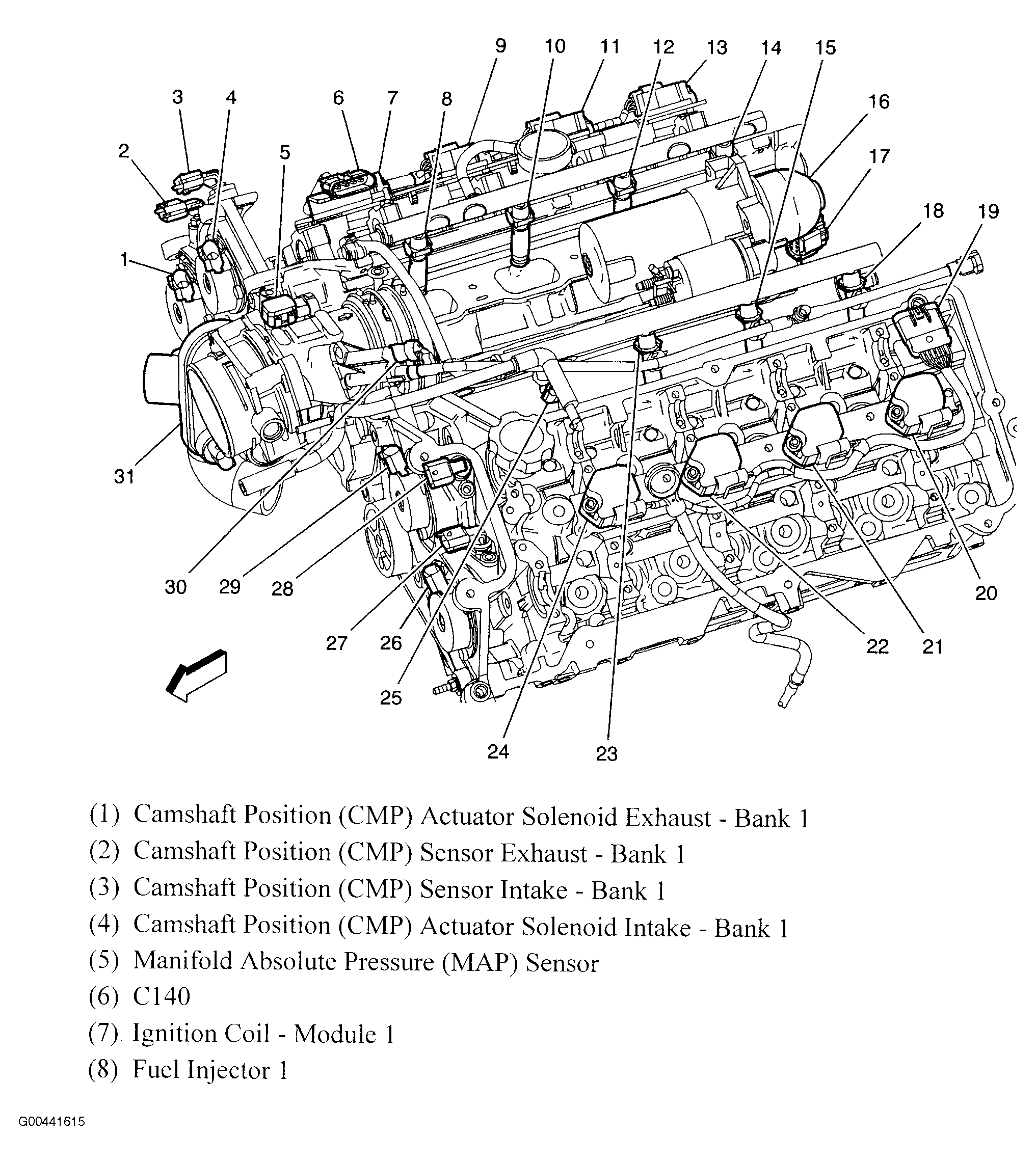

Fig 23: Top Of Engine (4.6L) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

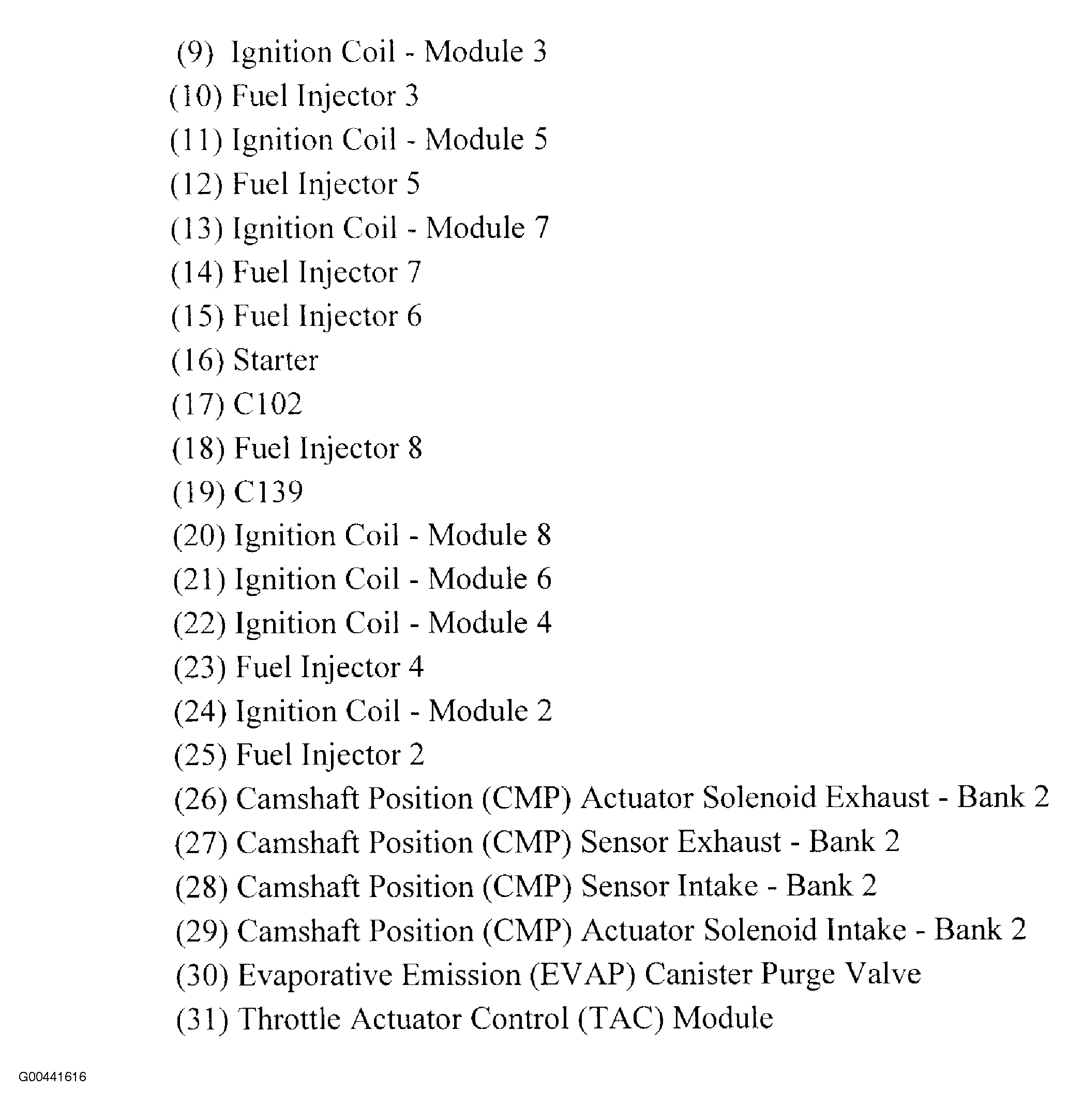

Fig 24: Top Of Engine (4.6L) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 25: A/T Electronic Components (6L50/6L80/6L90)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Starter & Knock Sensors (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 27: Engine Components (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Antenna Components
Courtesy of GENERAL MOTORS CORP.

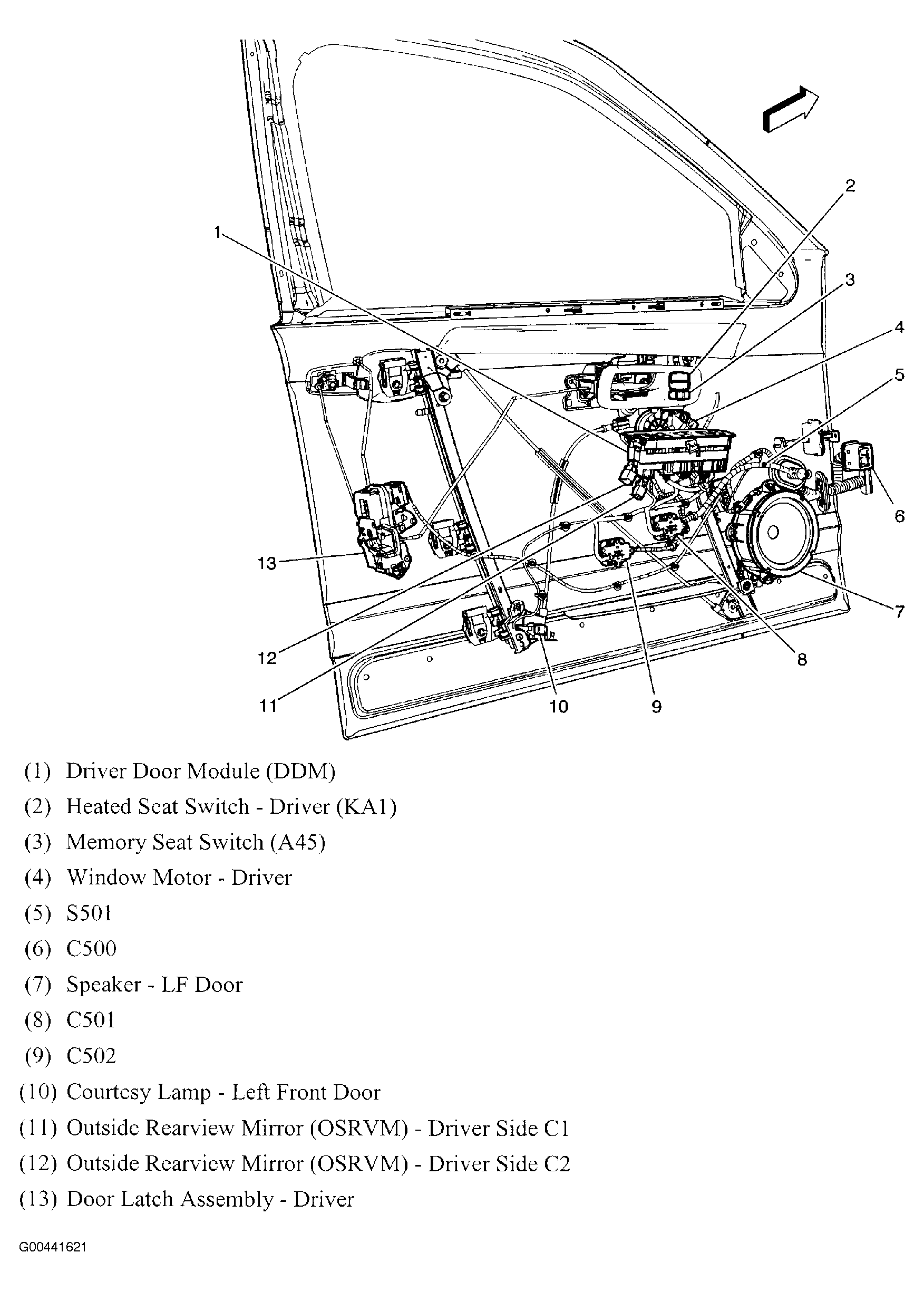

Fig 29: Driver Door Components
Courtesy of GENERAL MOTORS CORP.

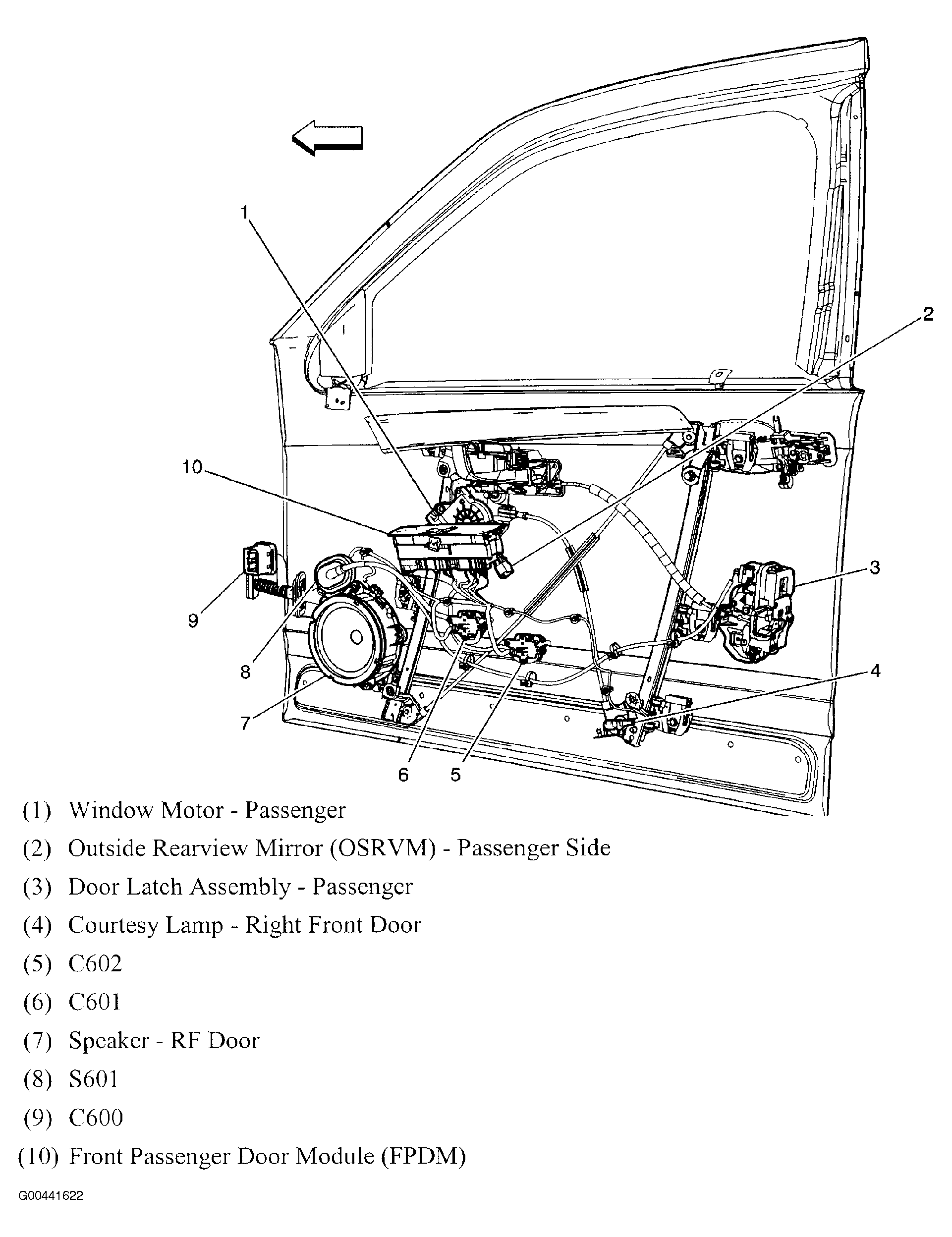

Fig 30: Passenger Door Components
Courtesy of GENERAL MOTORS CORP.

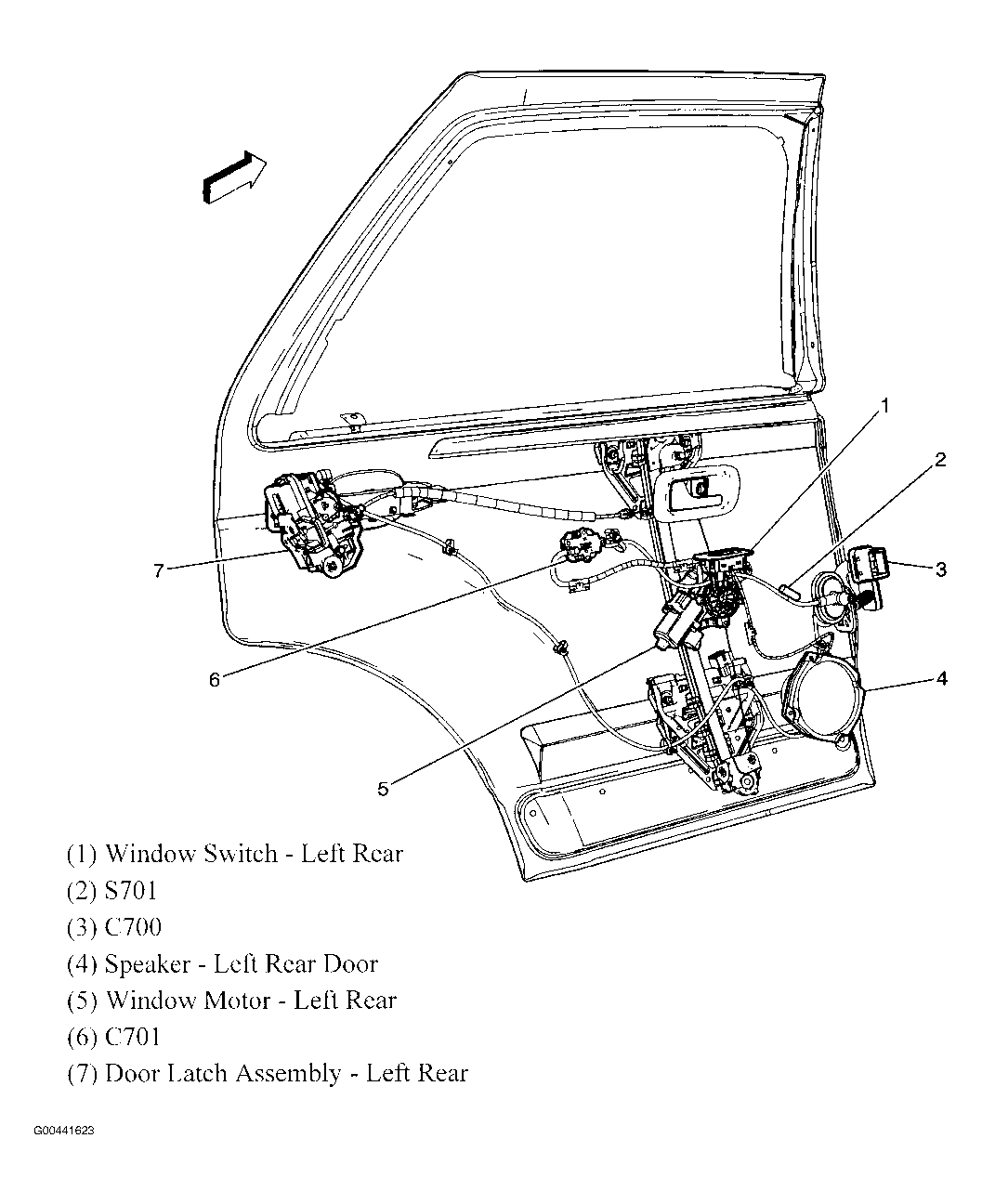

Fig 31: Left Rear Door Components
Courtesy of GENERAL MOTORS CORP.

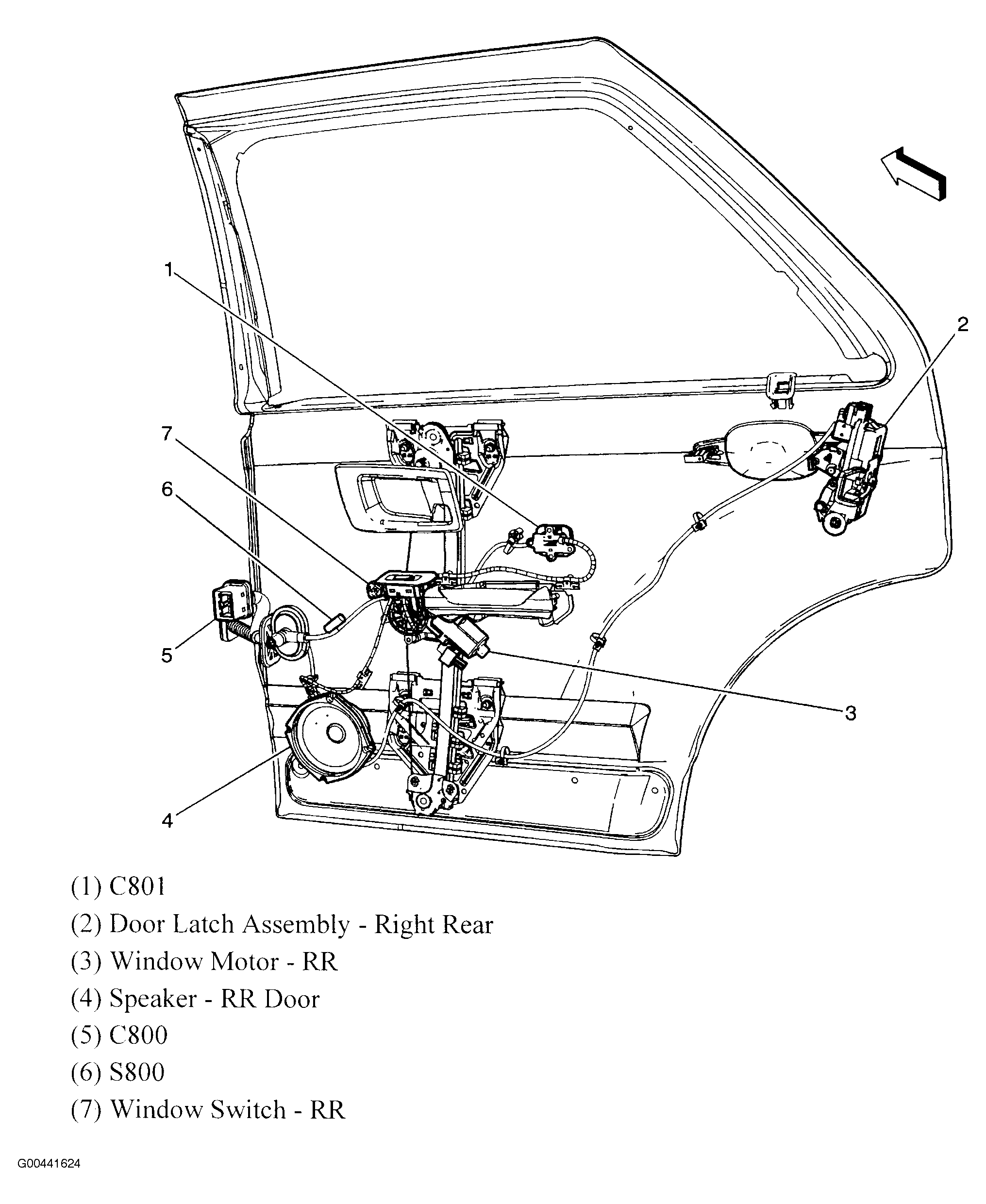

Fig 32: Right Rear Door Components
Courtesy of GENERAL MOTORS CORP.
Fig 33: Front Engine Compartment (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 34: Right Front Engine Compartment (3.6L)
Courtesy of GENERAL MOTORS CORP.

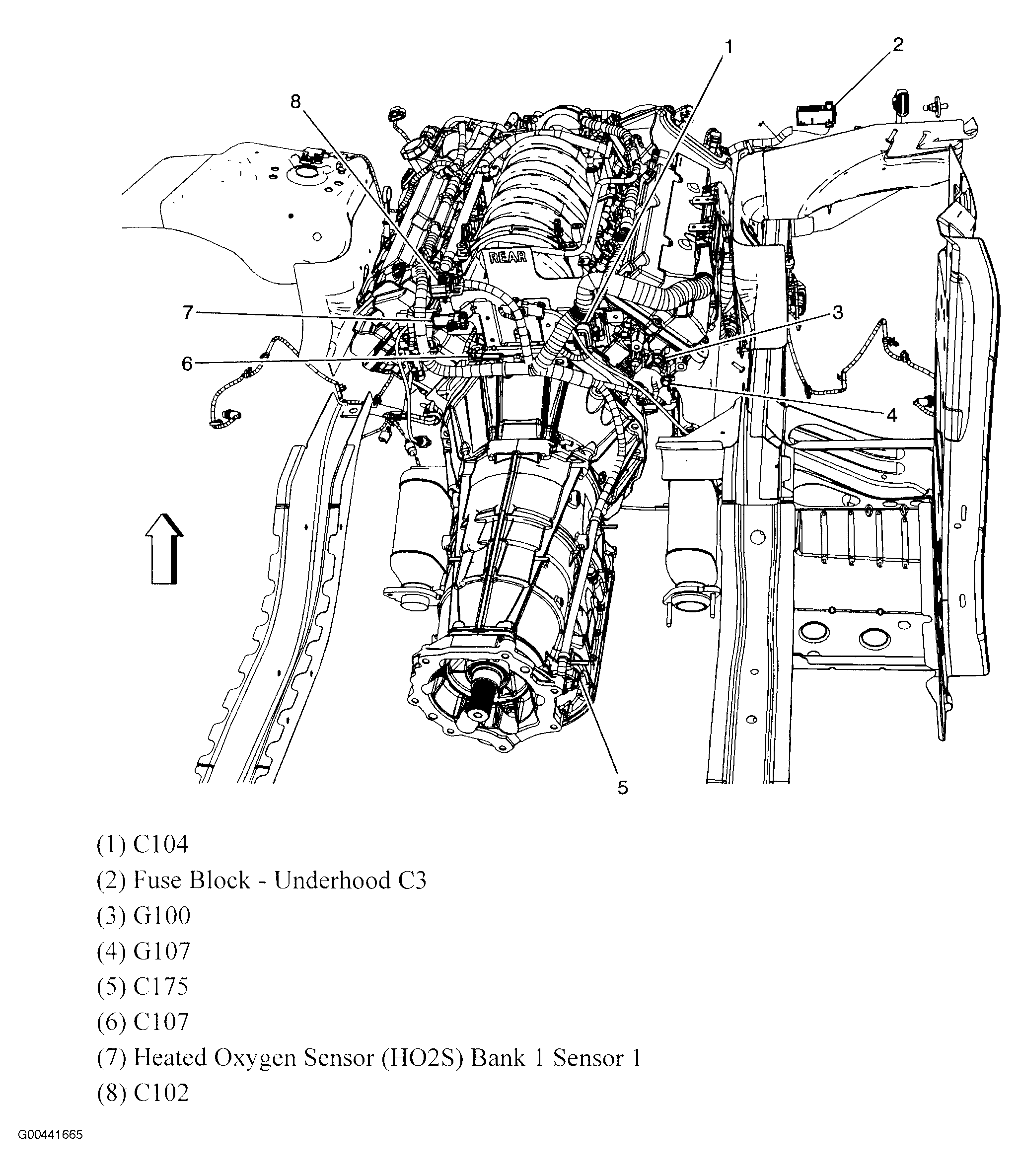

Fig 35: Rear Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Engine Controls Components (3.6L)
Courtesy of GENERAL MOTORS CORP.

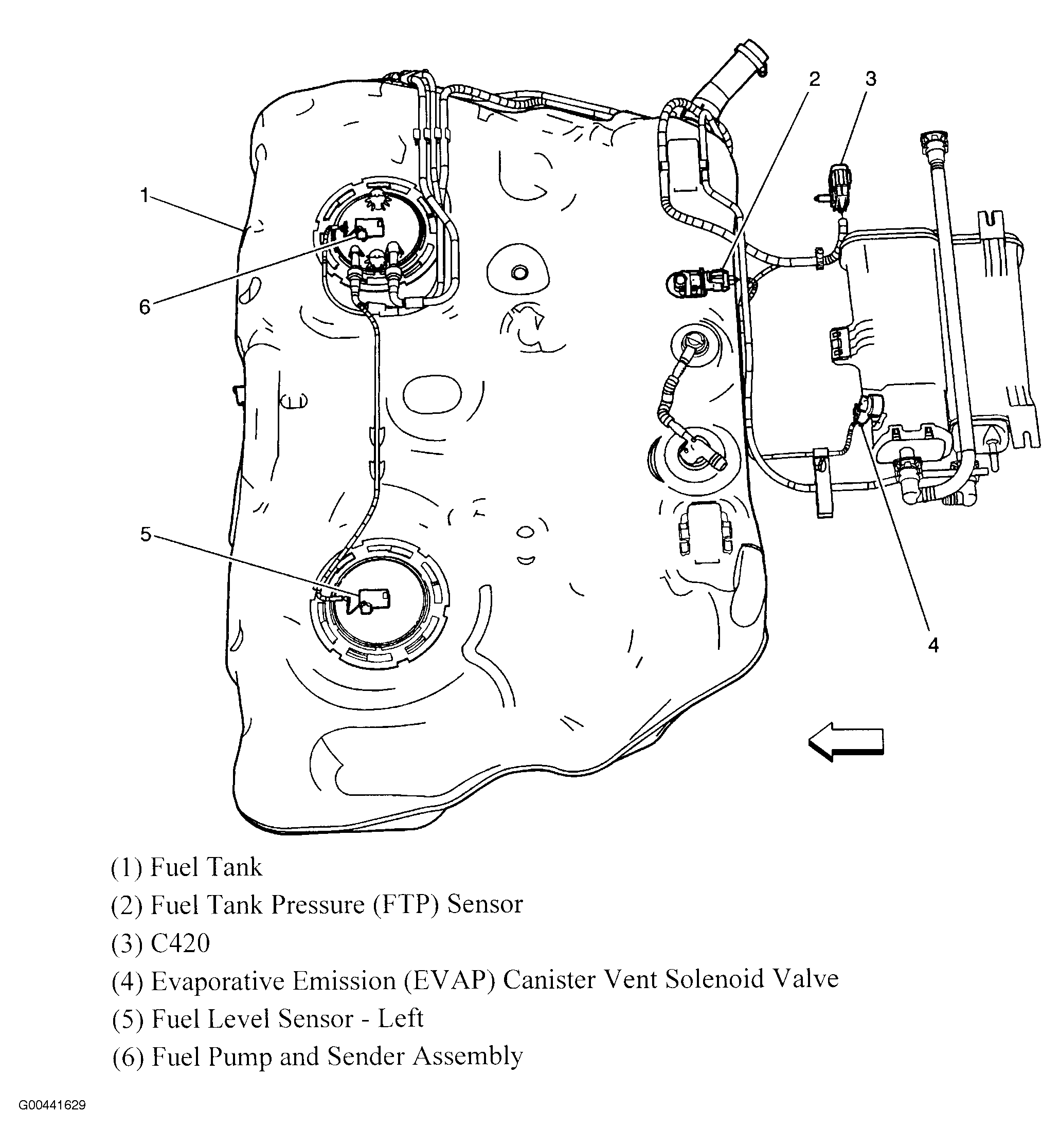

Fig 37: Fuel Tank & EVAP Solenoid
Courtesy of GENERAL MOTORS CORP.
Fig 38: Evaporator Temperature Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 39: Fuel Injectors (3.6L)
Courtesy of GENERAL MOTORS CORP.

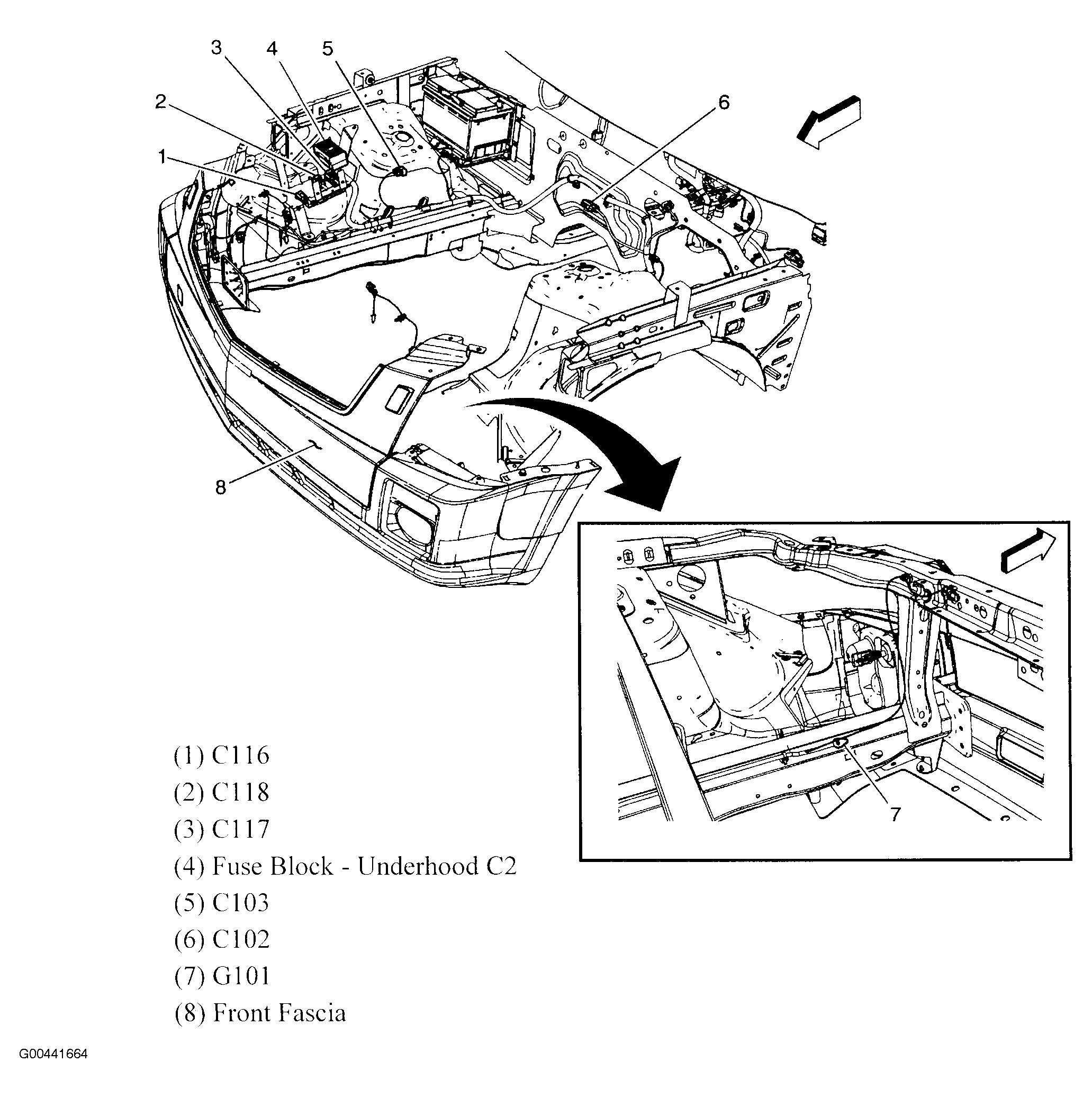

Fig 40: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 41: Headlamp Leveling Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 42: Heated Oxygen Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 43: Front Heated Seat Components
Courtesy of GENERAL MOTORS CORP.
Fig 44: Wiper Washer Components
Courtesy of GENERAL MOTORS CORP.
Fig 45: Theft Deterrent Components
Courtesy of GENERAL MOTORS CORP.

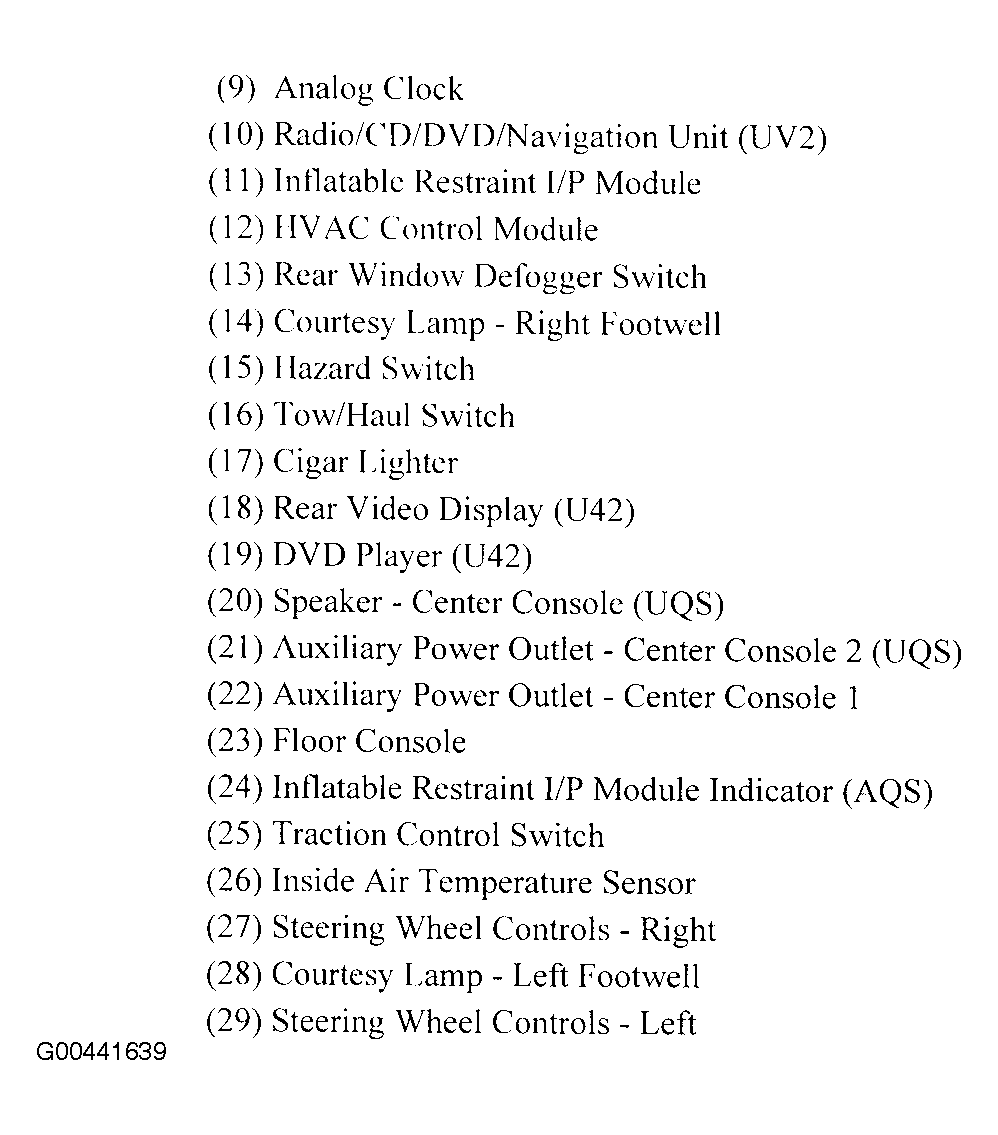

Fig 46: Instrument Panel & Floor Console Components (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 47: Instrument Panel & Floor Console Components (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

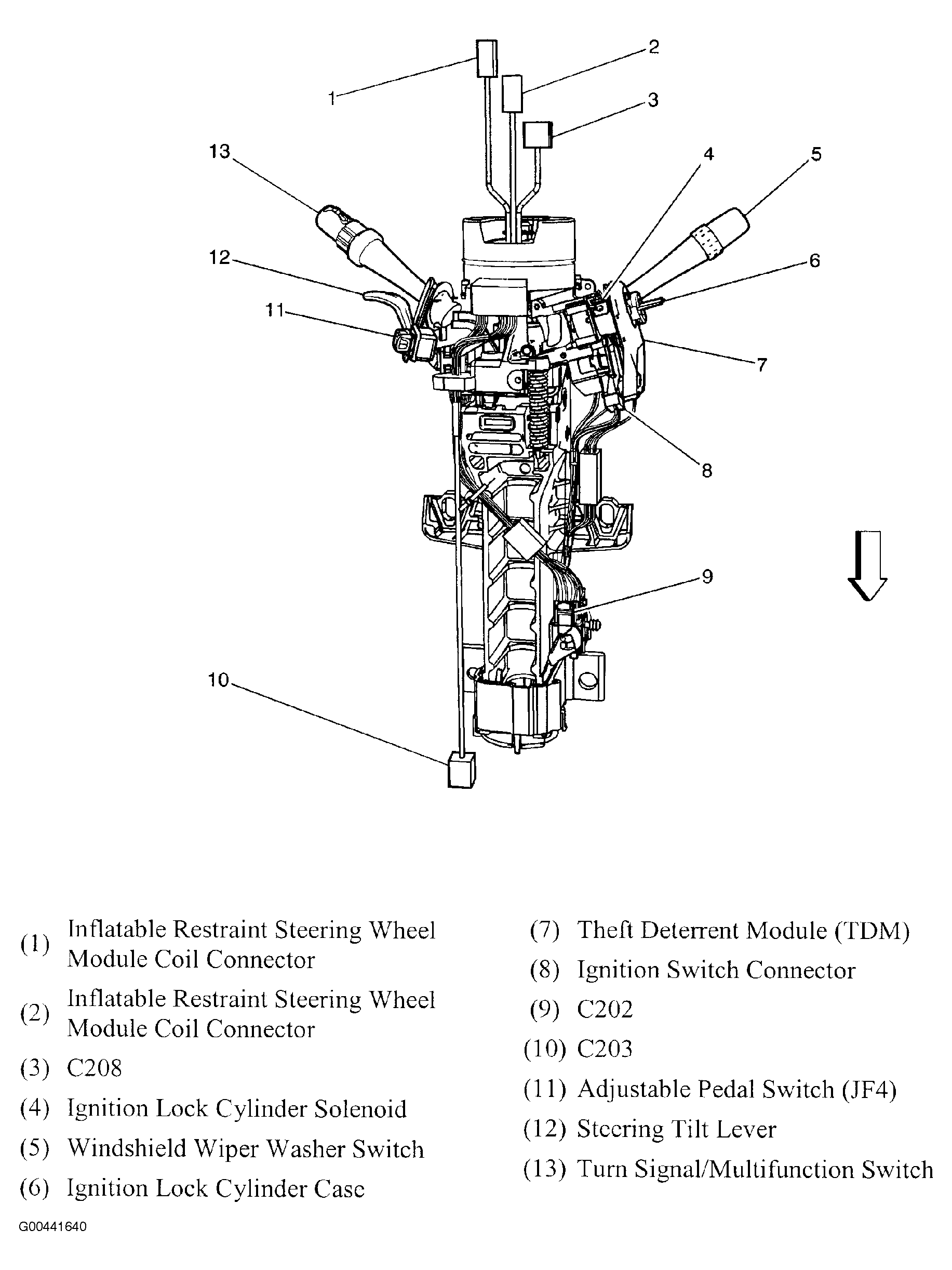

Fig 48: Steering Column Components
Courtesy of GENERAL MOTORS CORP.

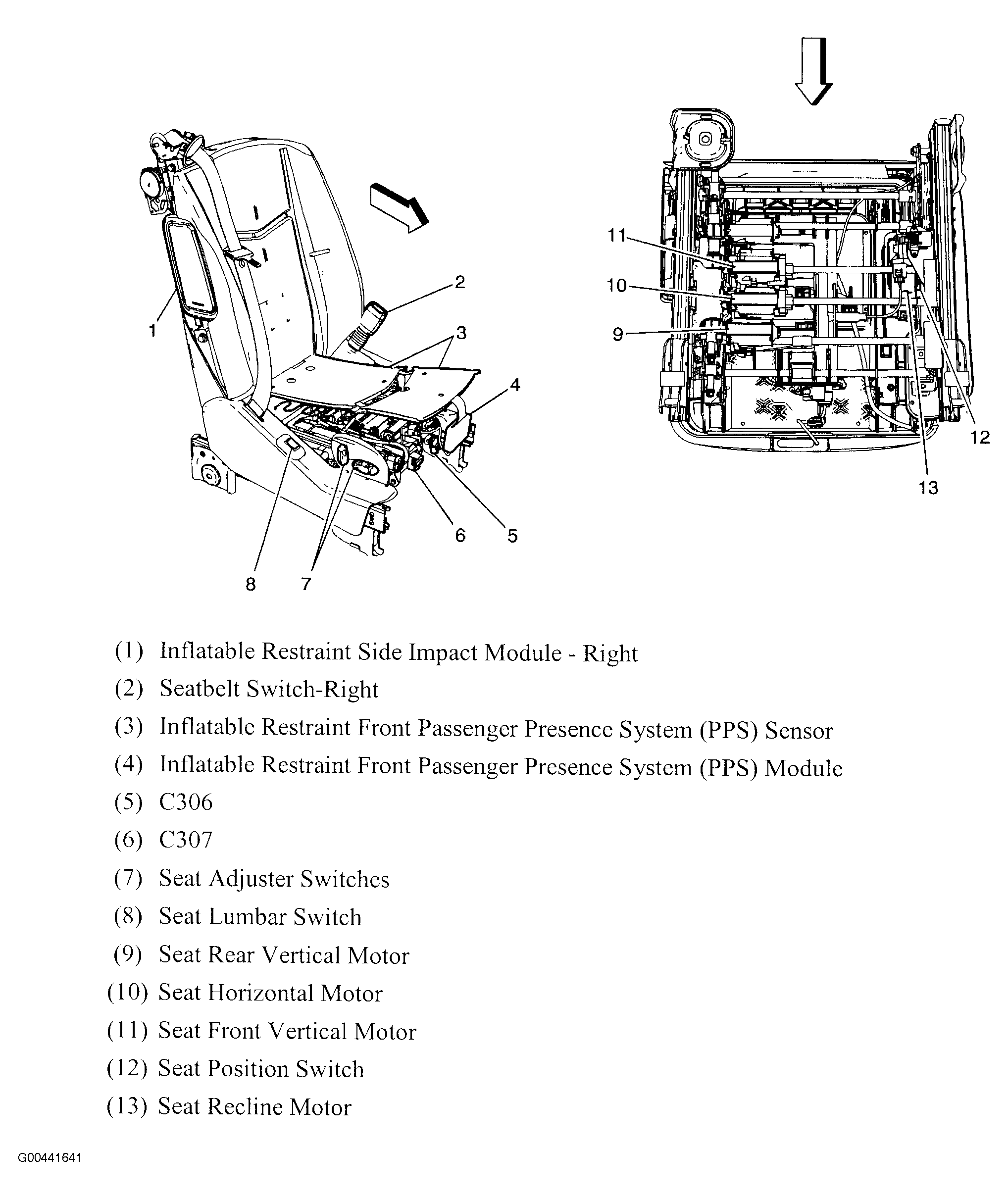

Fig 49: Passenger Seat Components
Courtesy of GENERAL MOTORS CORP.
Fig 50: SIR Components
Courtesy of GENERAL MOTORS CORP.
Fig 51: Right Lower "B" Pillar
Courtesy of GENERAL MOTORS CORP.

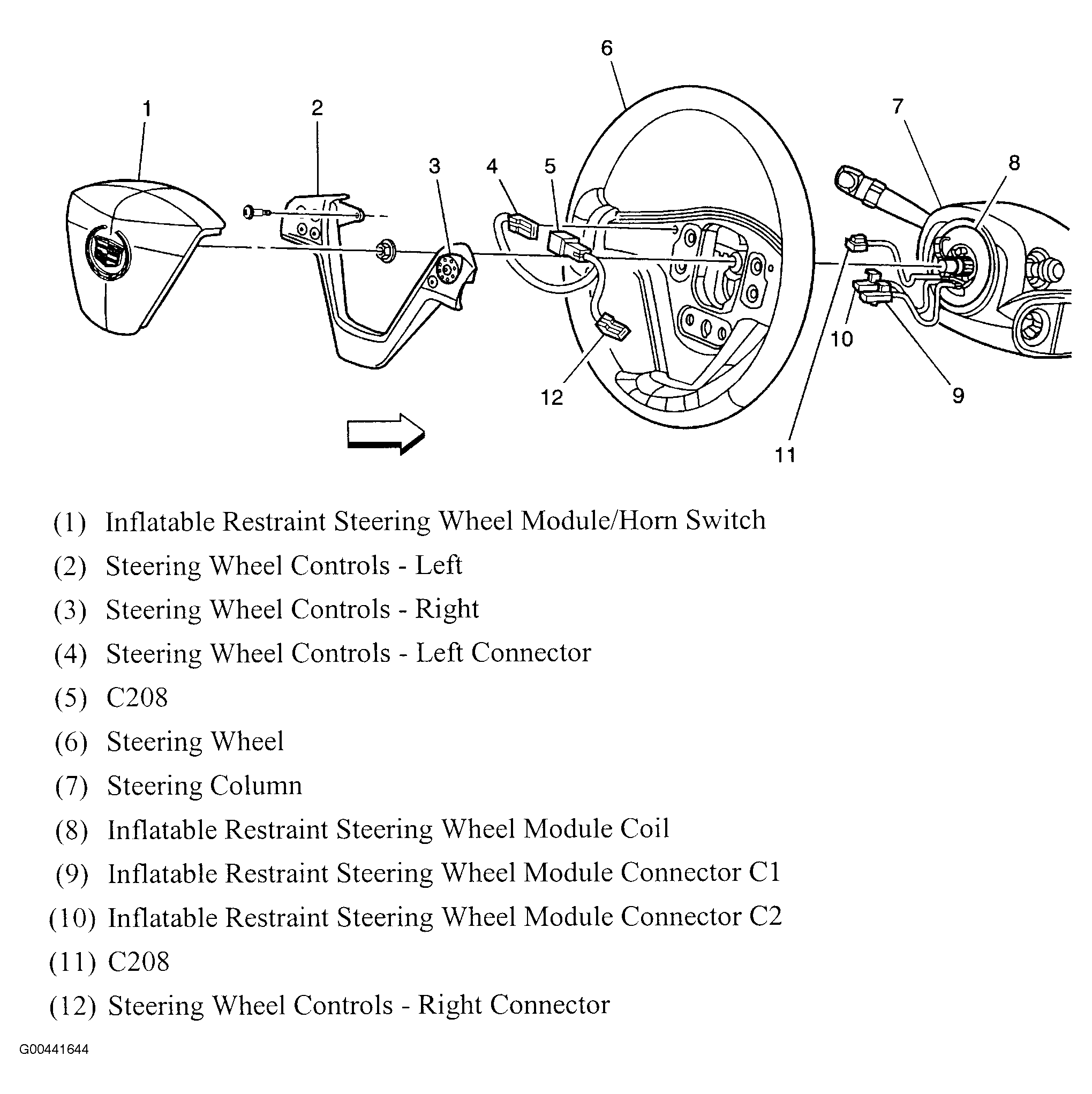

Fig 52: Steering Wheel Components
Courtesy of GENERAL MOTORS CORP.
Fig 53: Lower Center Of Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 54: Liftgate Side Upper Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 55: Overhead Console
Courtesy of GENERAL MOTORS CORP.

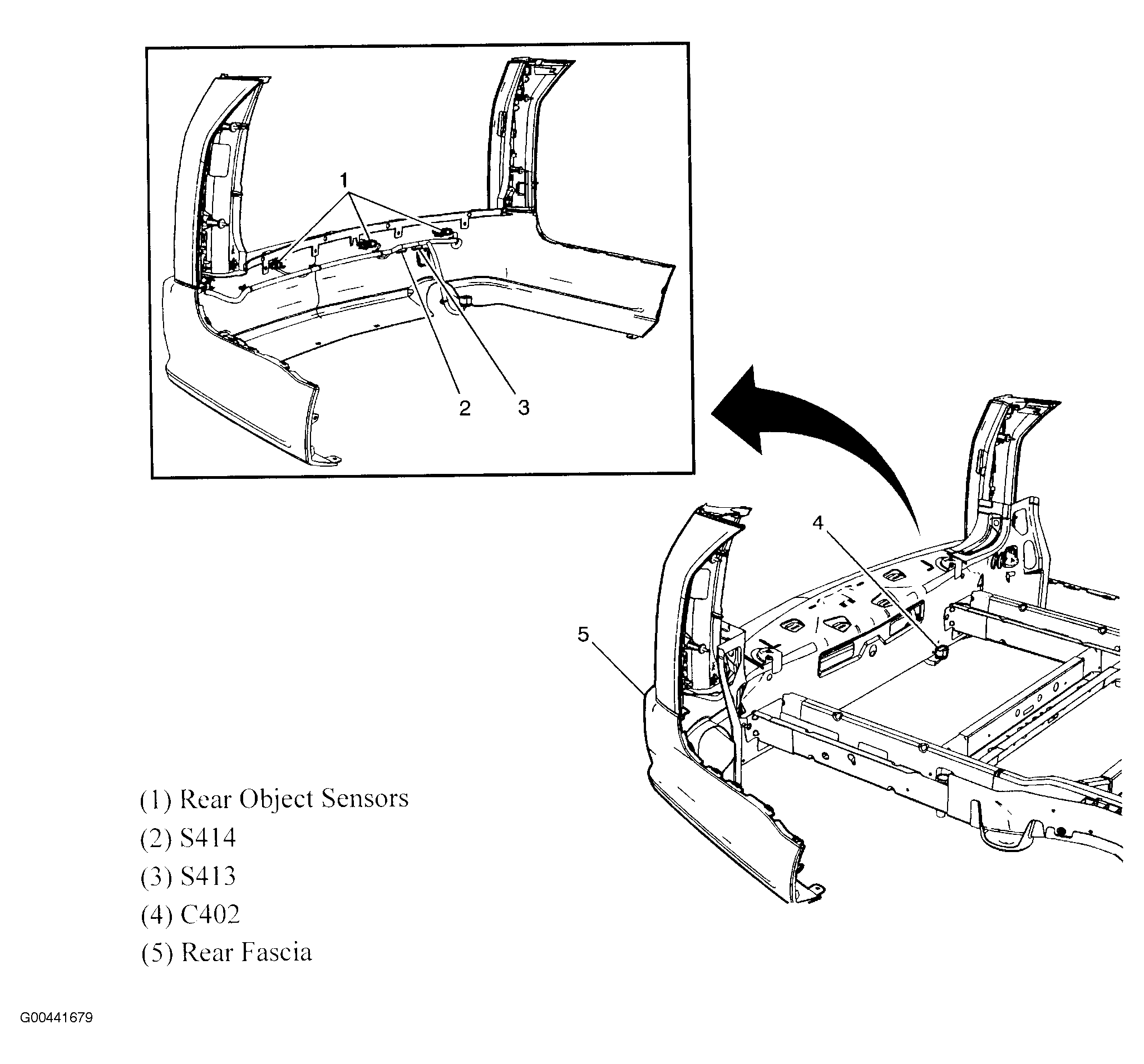

Fig 56: Rear Bumper Object Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 57: Right Rear Compartment Area
Courtesy of GENERAL MOTORS CORP.
Fig 58: Sunroof Components
Courtesy of GENERAL MOTORS CORP.

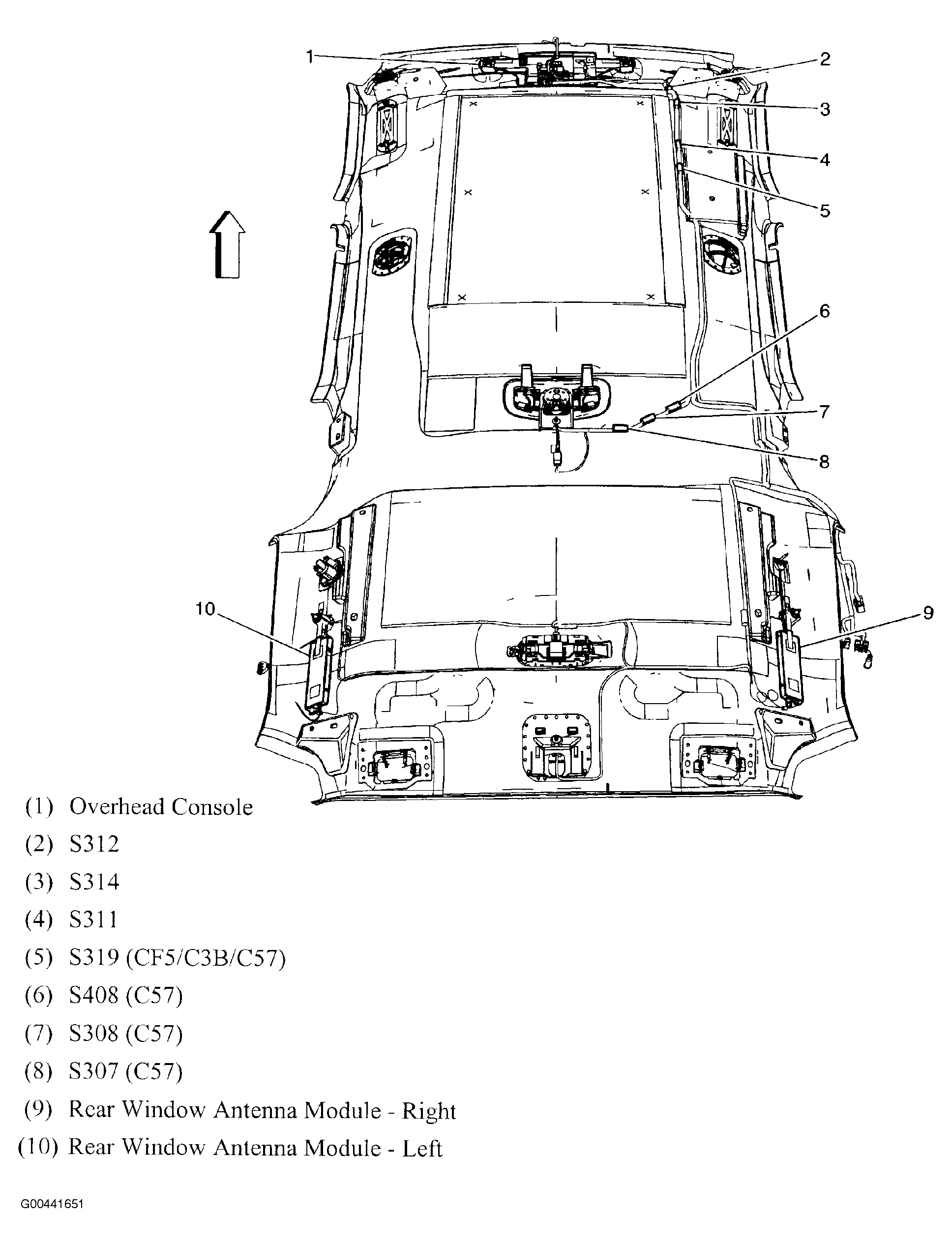

Fig 59: Headliner Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 60: Right Side Of Rear Compartment Components
Courtesy of GENERAL MOTORS CORP.
Fig 61: Steering Angle Sensor
Courtesy of GENERAL MOTORS CORP.

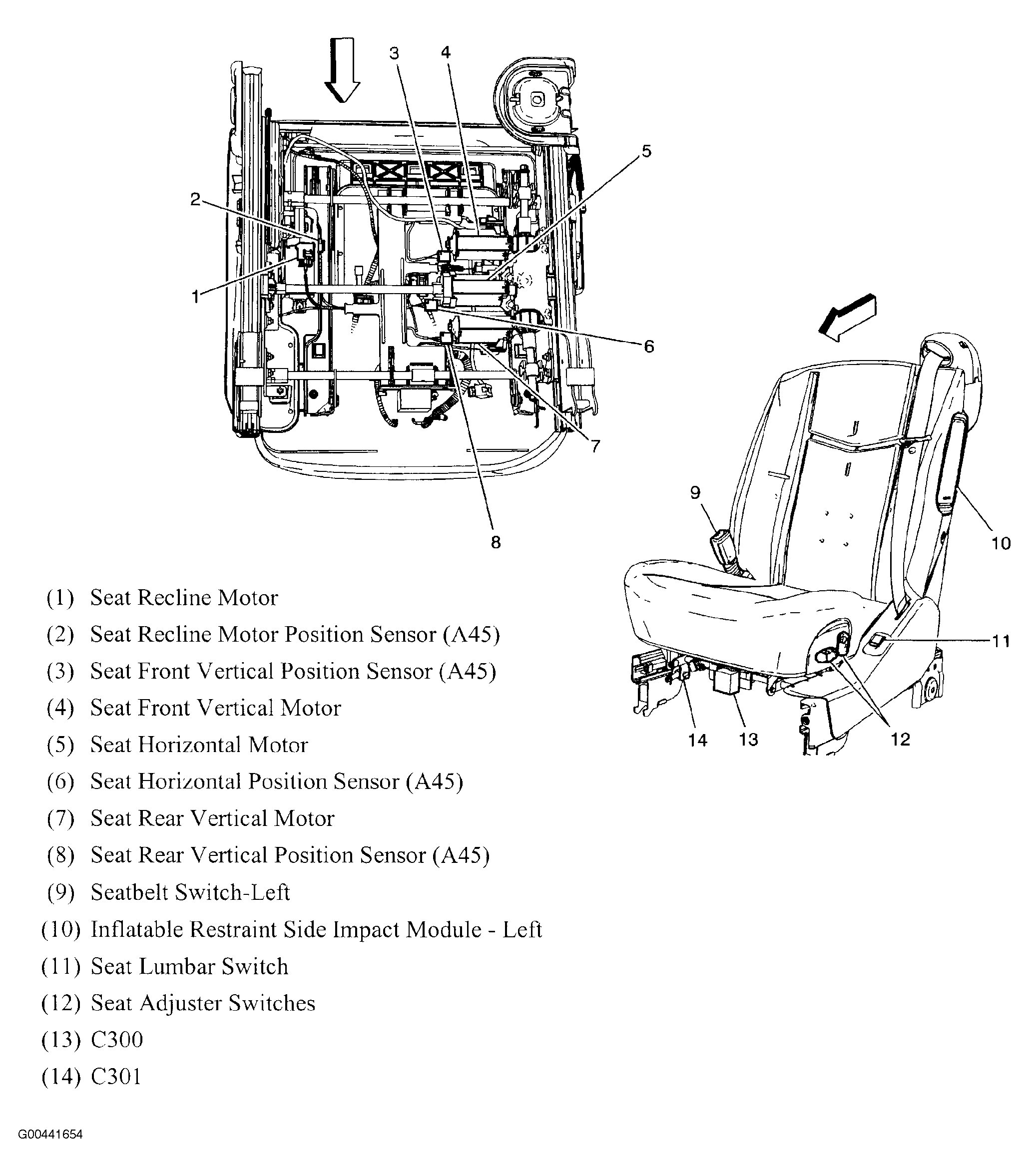

Fig 62: Driver Seat Components
Courtesy of GENERAL MOTORS CORP.
Fig 63: Seat Lumbar Motors
Courtesy of GENERAL MOTORS CORP.
Fig 64: Sunroof Components
Courtesy of GENERAL MOTORS CORP.
Fig 65: Front Suspension Components
Courtesy of GENERAL MOTORS CORP.
Fig 66: Rear Suspension Components
Courtesy of GENERAL MOTORS CORP.
Fig 67: Right Rear Cargo Area
Courtesy of GENERAL MOTORS CORP.
Fig 68: Tire Pressure Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 69: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 70: Under Passenger Seat
Courtesy of GENERAL MOTORS CORP.

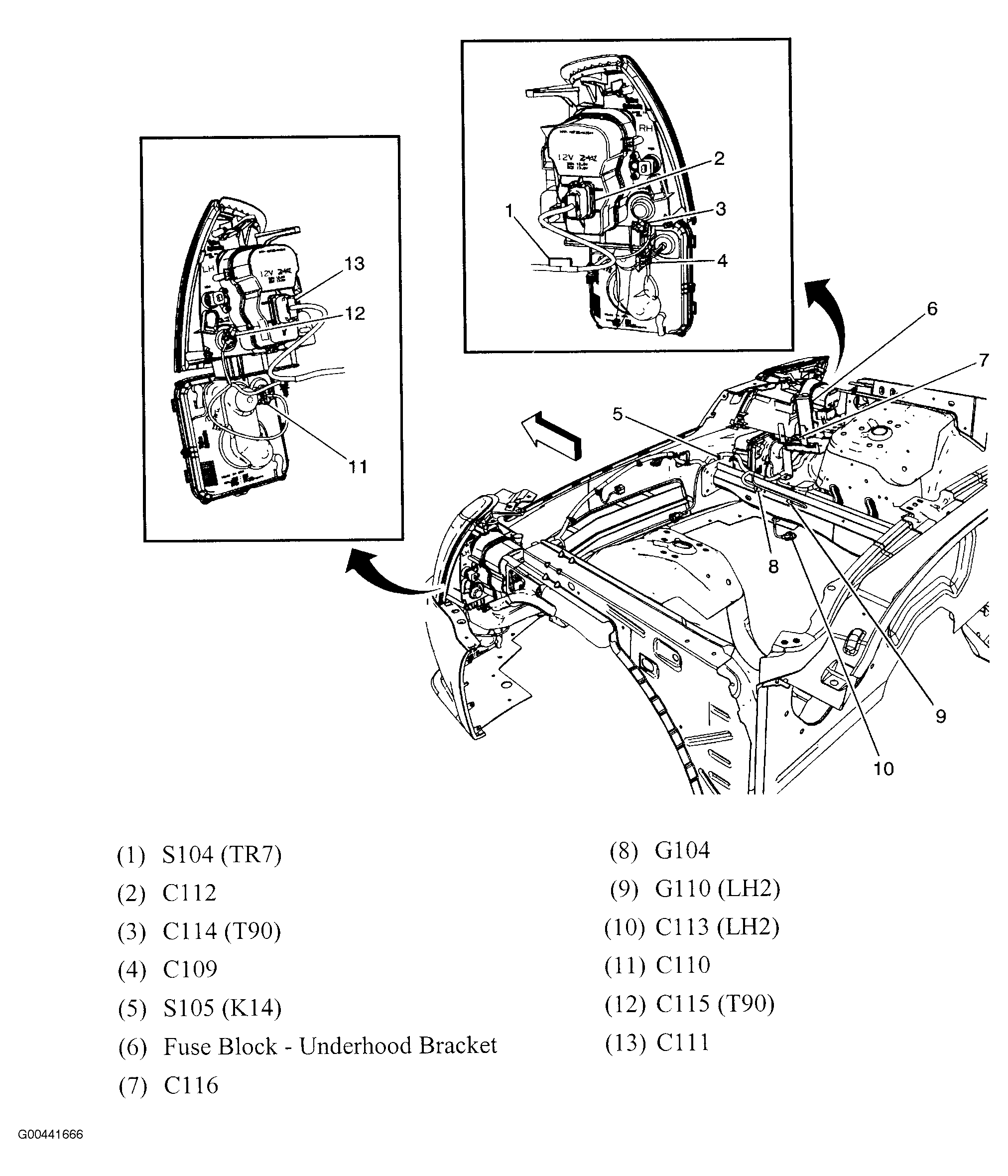

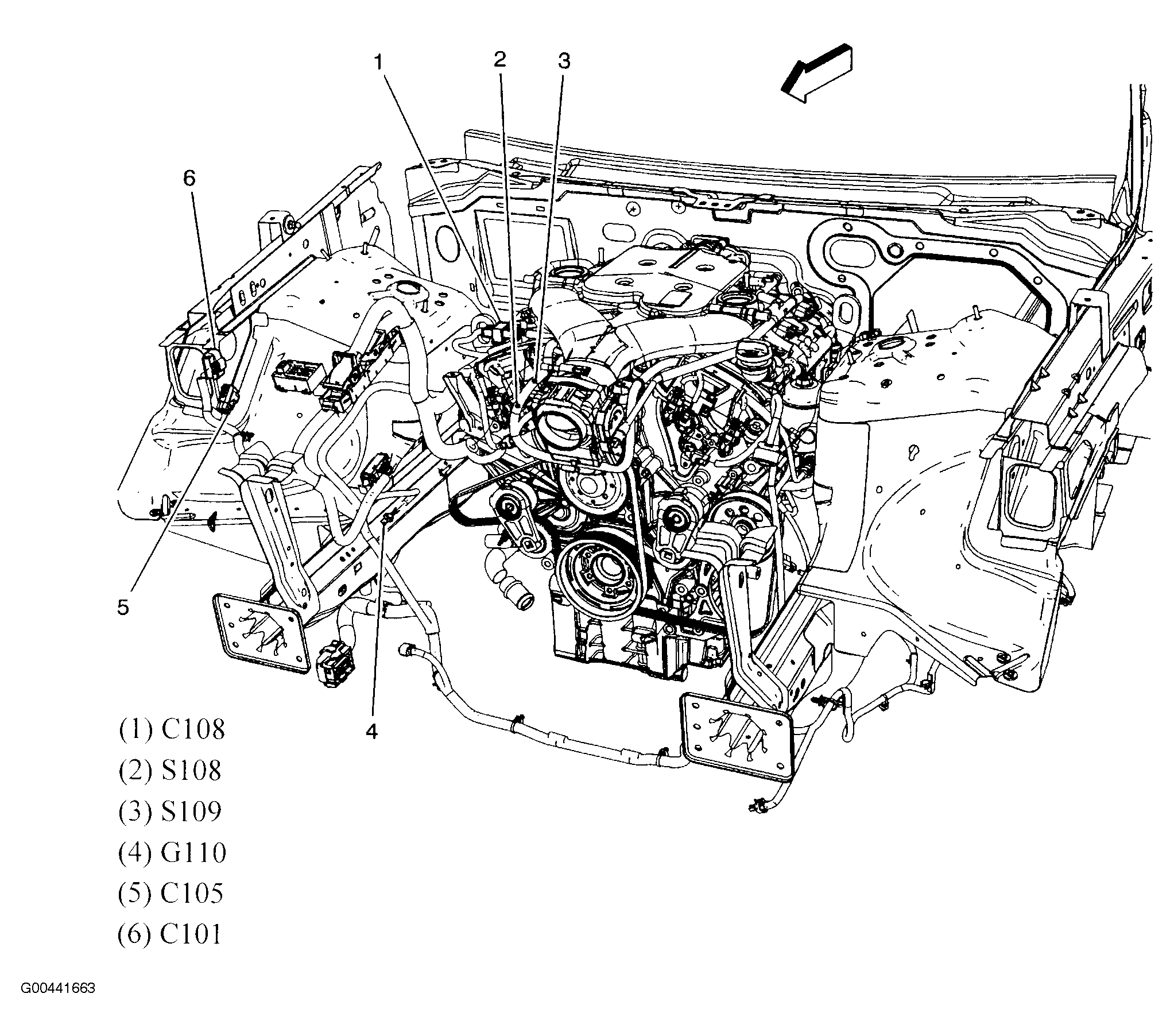

Fig 71: Front Of Engine Compartment (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 72: Front Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 73: Rear Of Engine Compartment (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 74: Forward Lamp Harness
Courtesy of GENERAL MOTORS CORP.

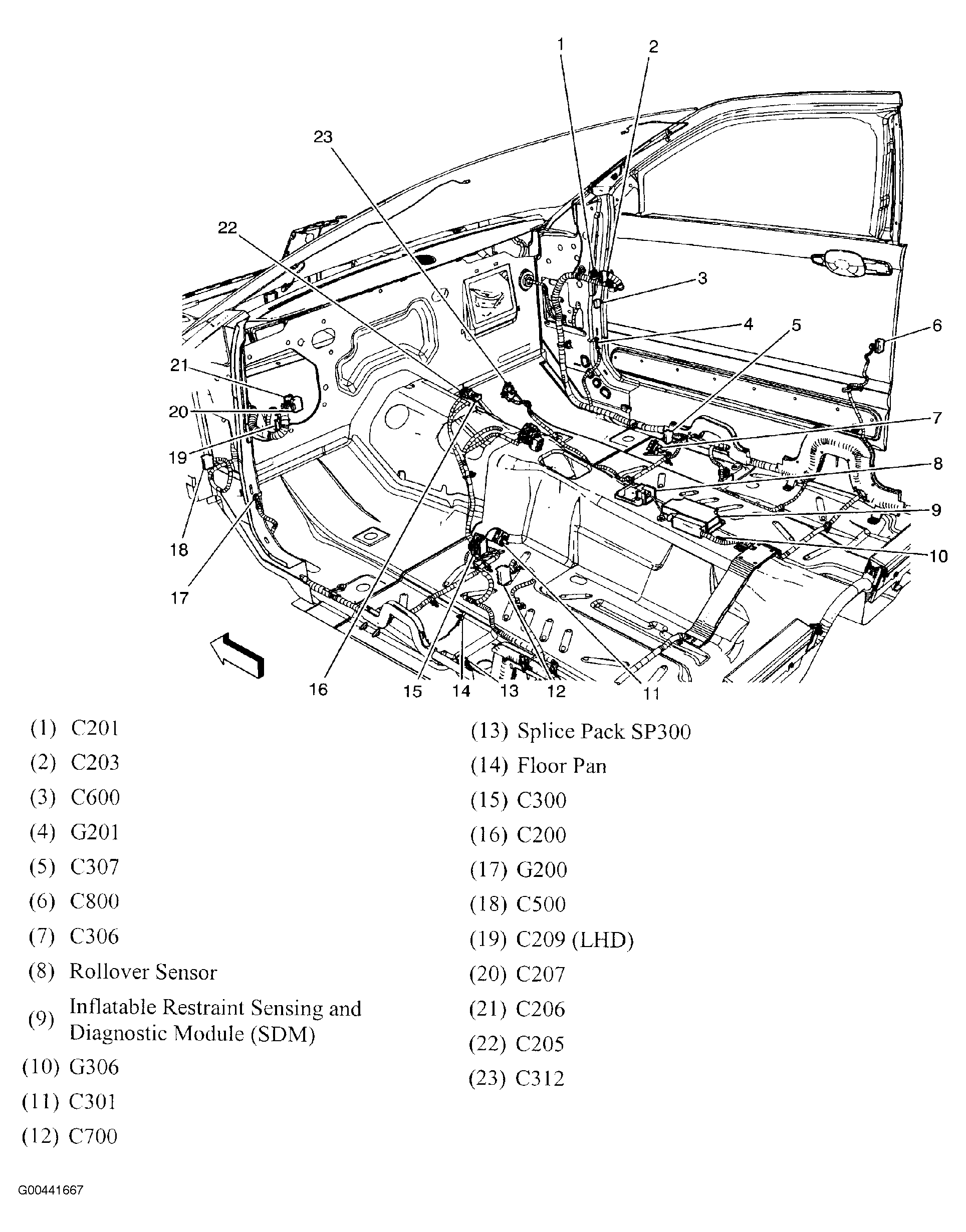

Fig 75: Passenger Compartment Body Harness
Courtesy of GENERAL MOTORS CORP.
Fig 76: Floor Console Harness
Courtesy of GENERAL MOTORS CORP.

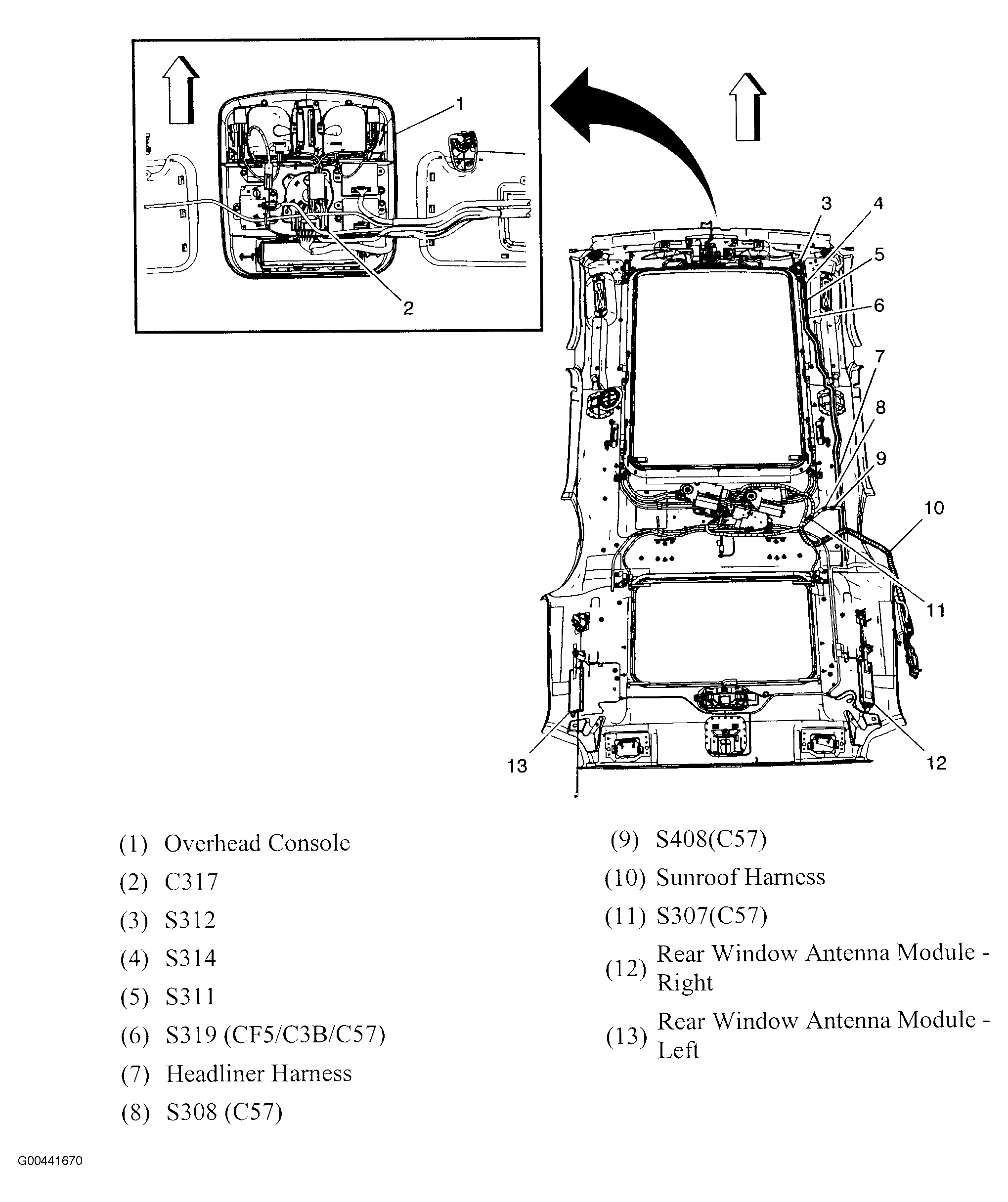

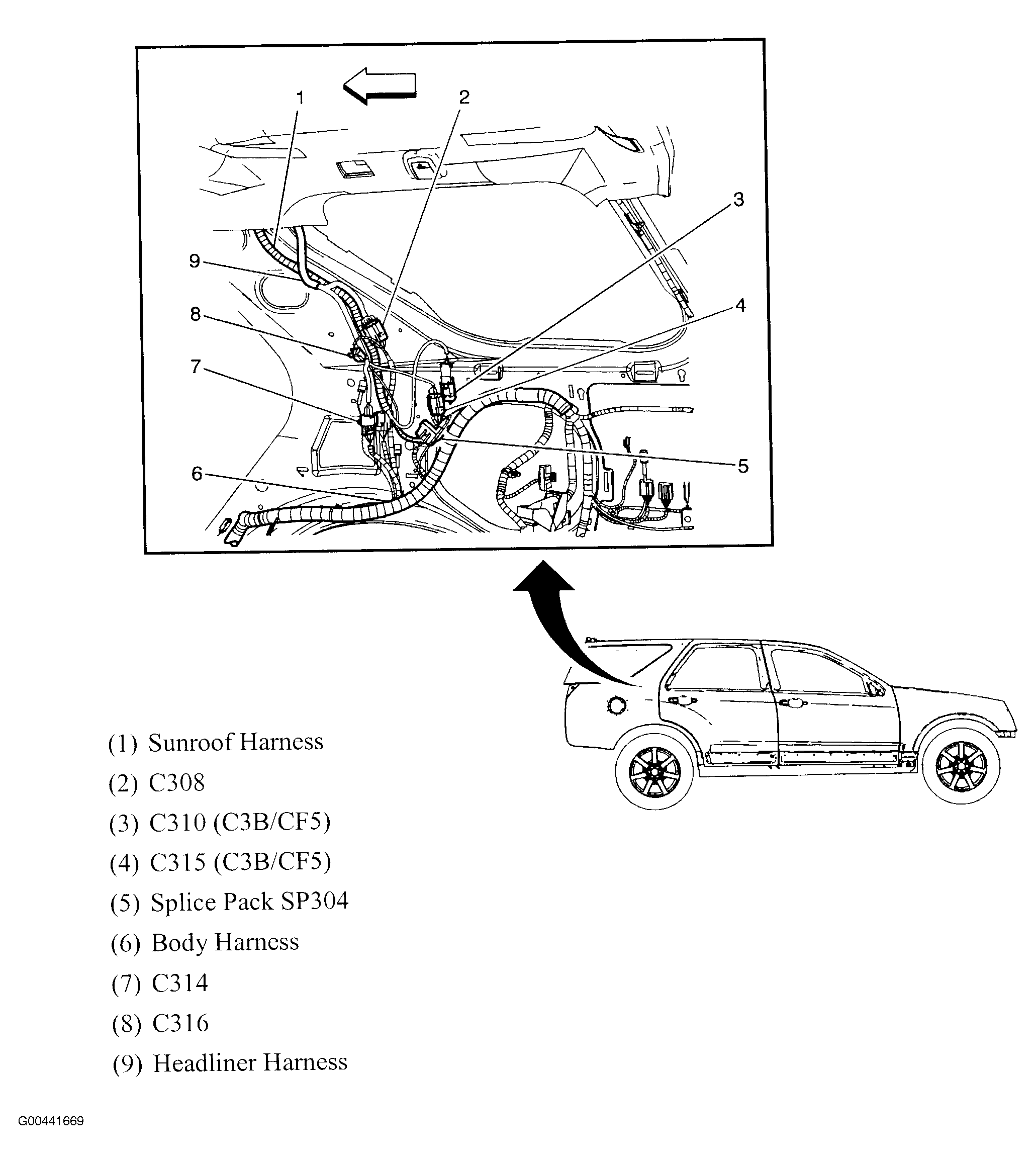

Fig 77: Headliner/Sunroof Harness
Courtesy of GENERAL MOTORS CORP.
Fig 78: Headliner/Sunroof Harness
Courtesy of GENERAL MOTORS CORP.

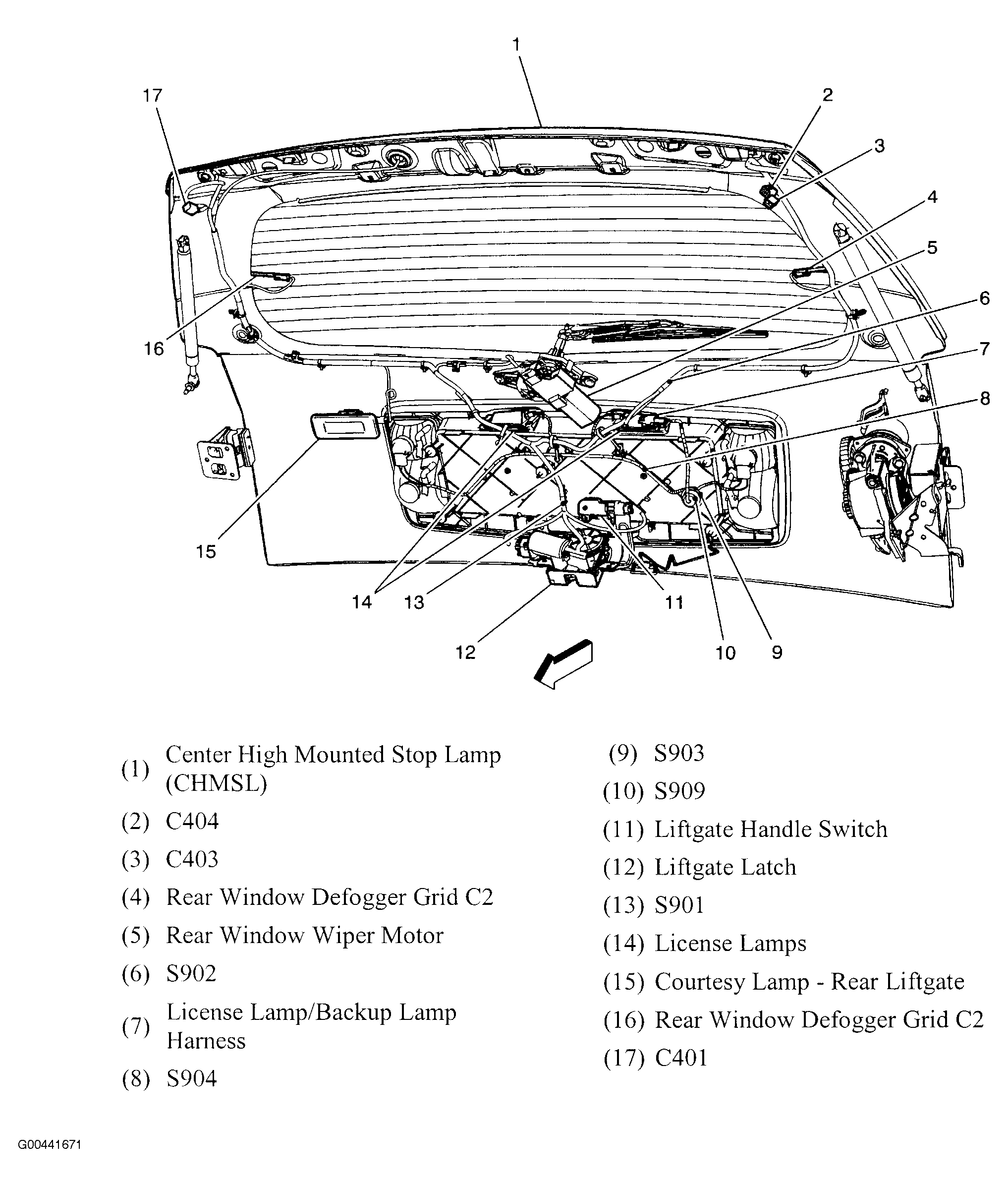

Fig 79: Liftgate Components
Courtesy of GENERAL MOTORS CORP.

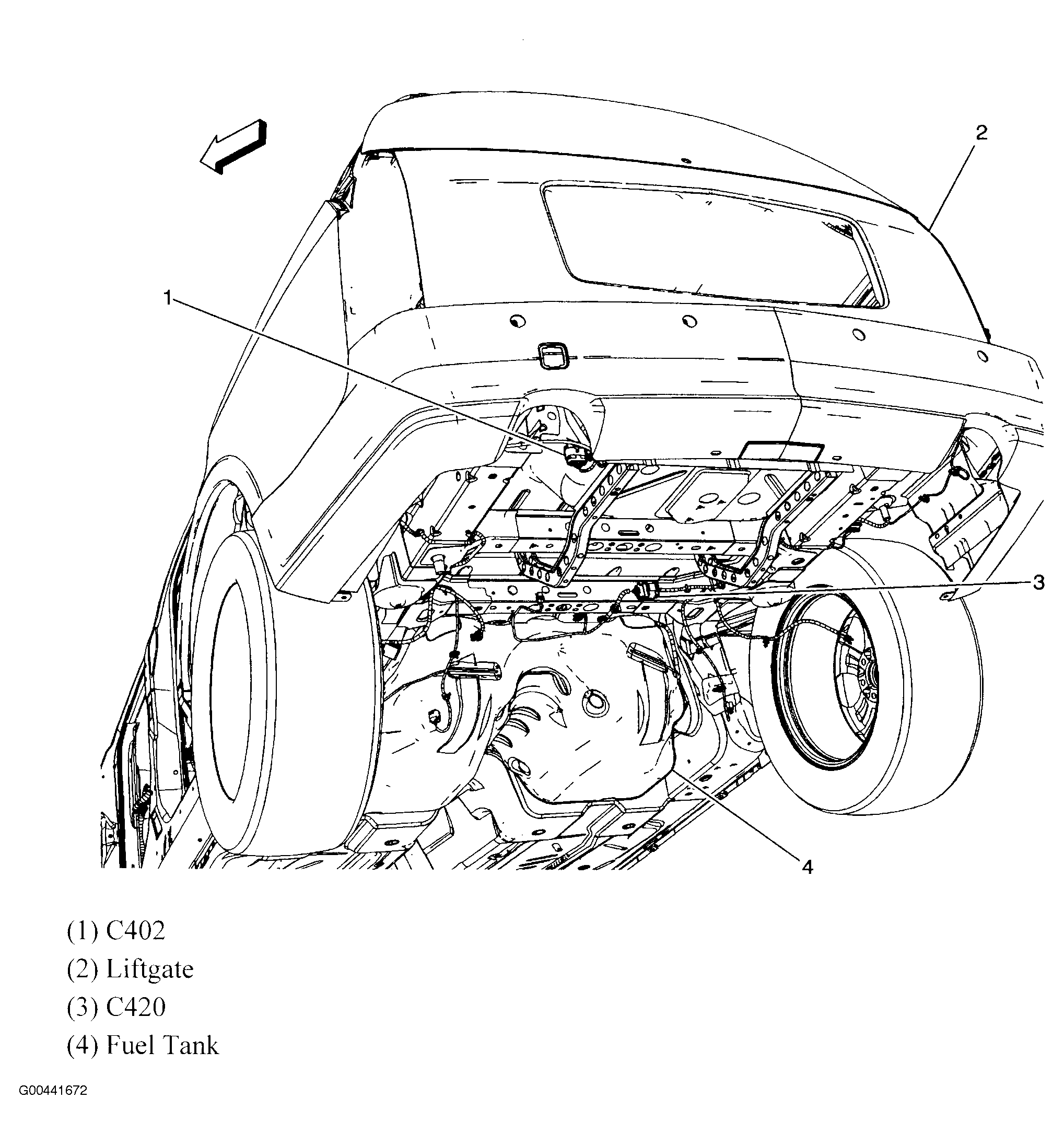

Fig 80: Connector C402 & C420
Courtesy of GENERAL MOTORS CORP.

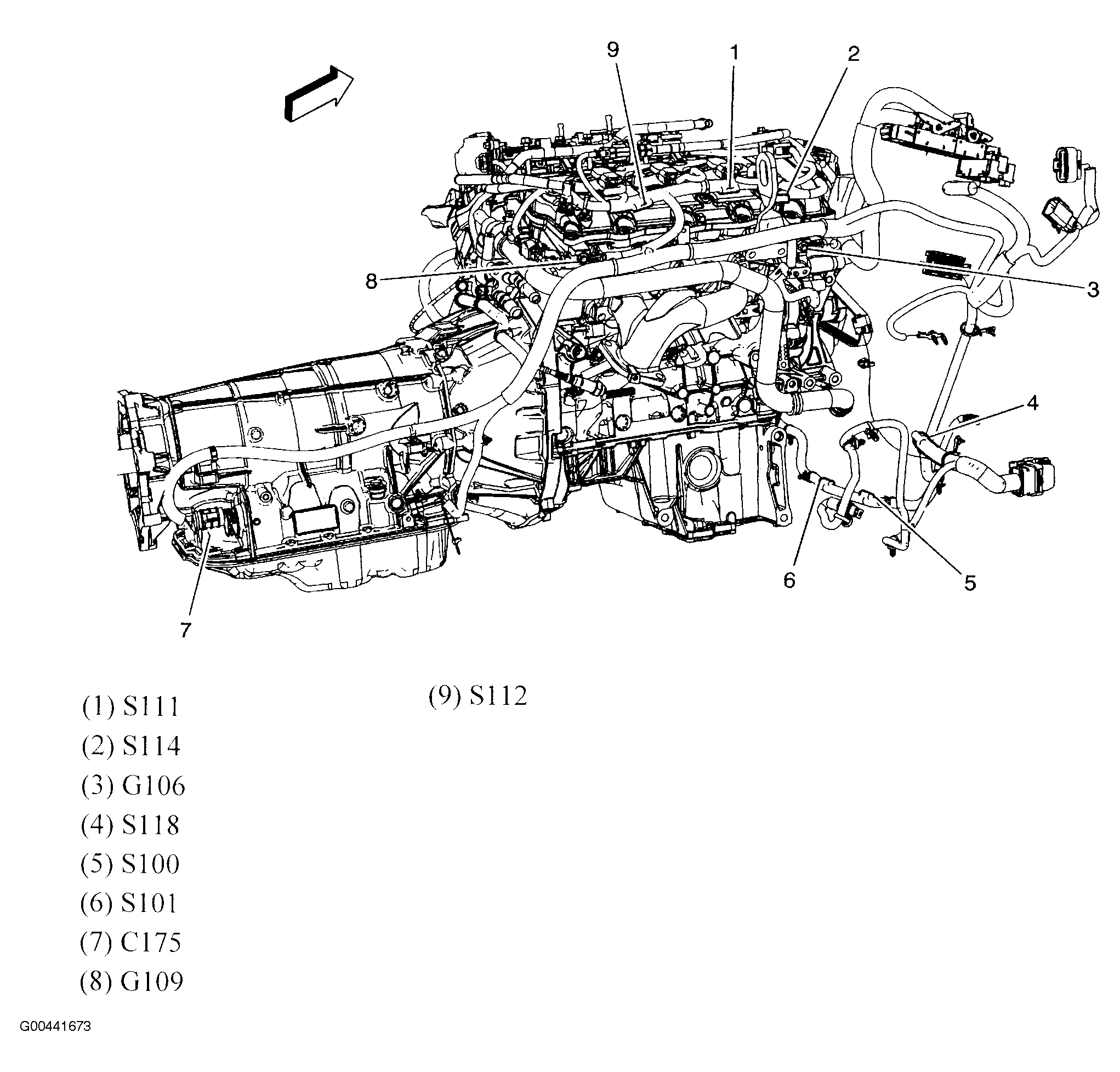

Fig 81: Right Side Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.

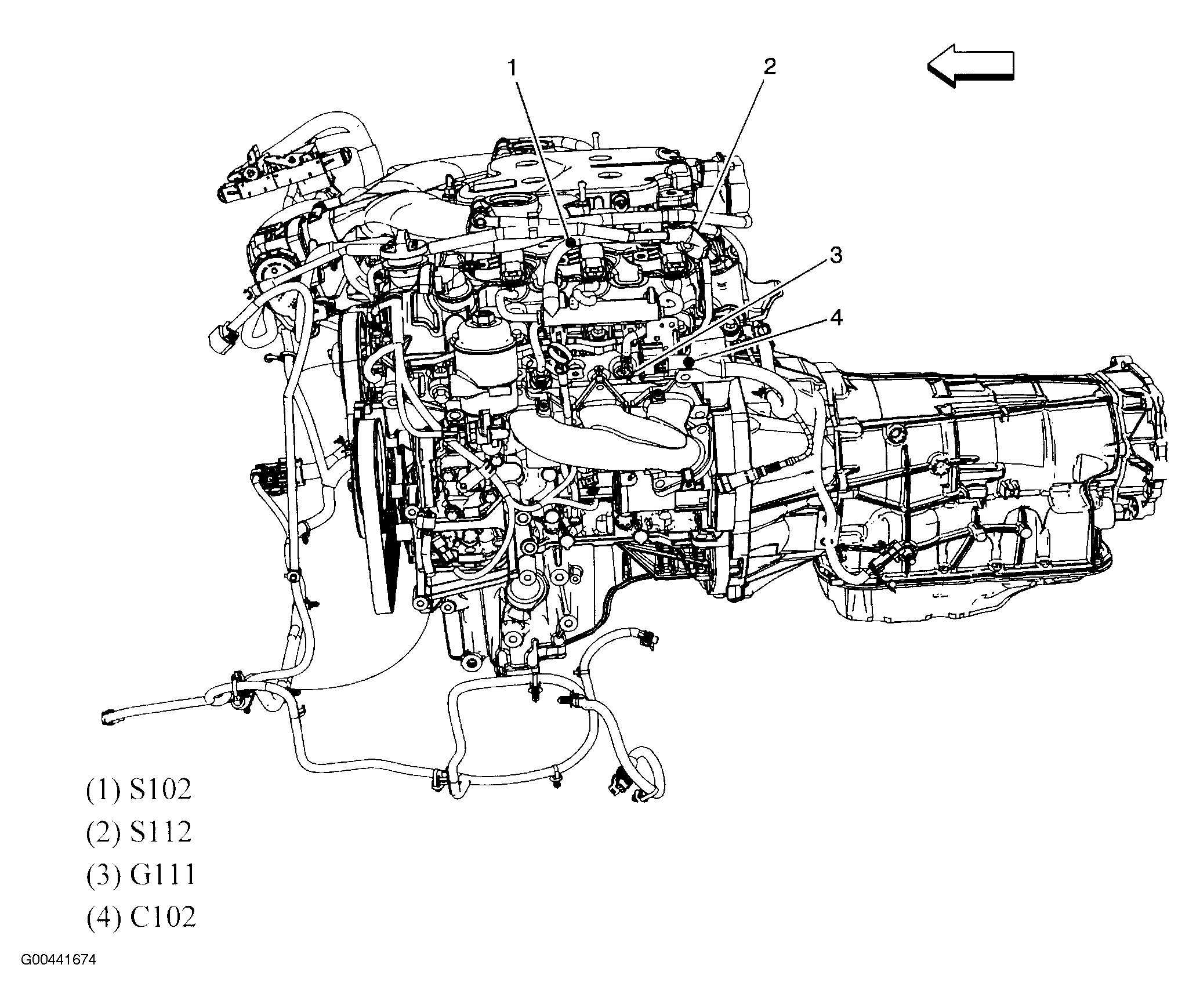

Fig 82: Left Side Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.

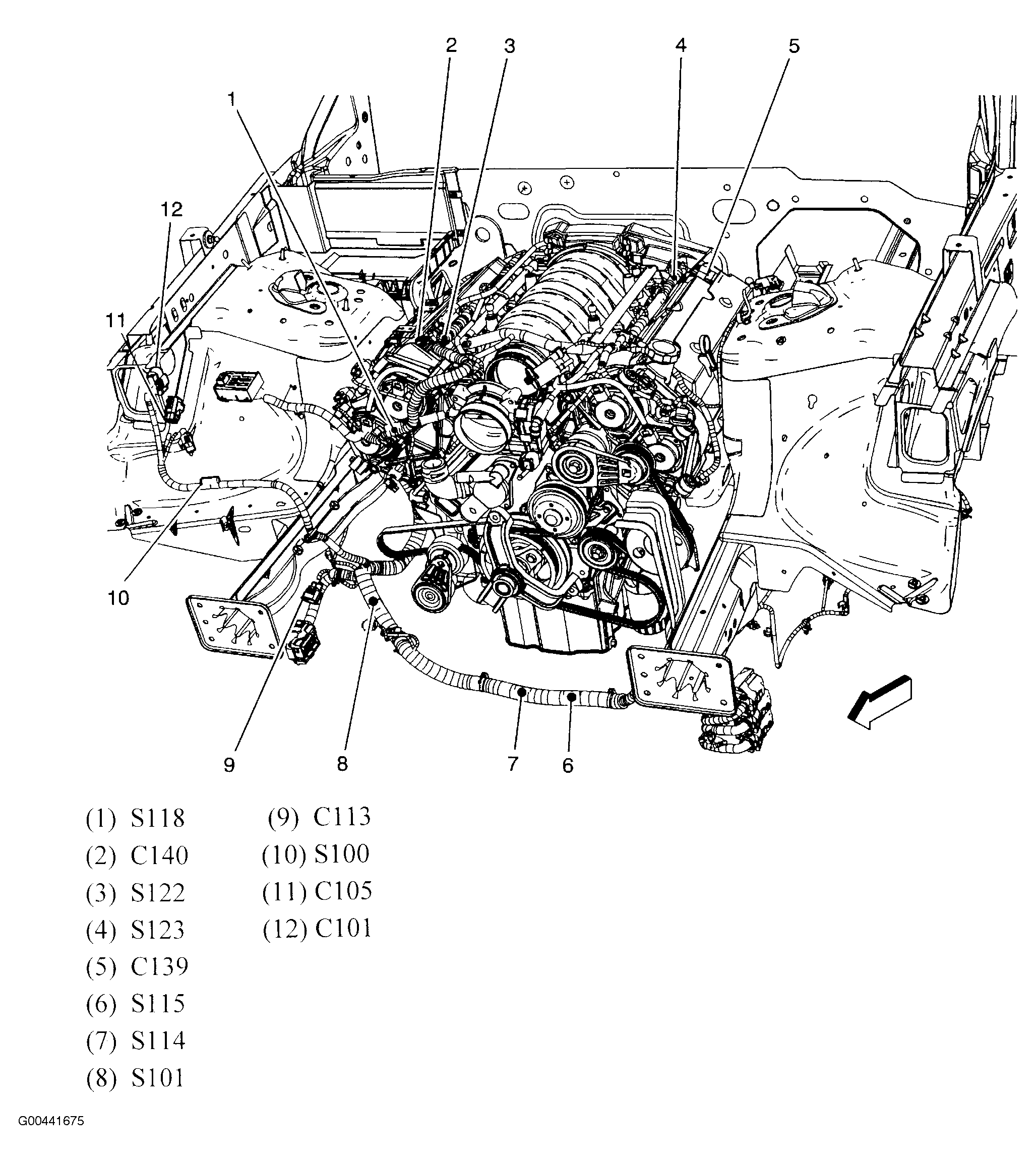

Fig 83: Front Engine Compartment (4.6L)
Courtesy of GENERAL MOTORS CORP.

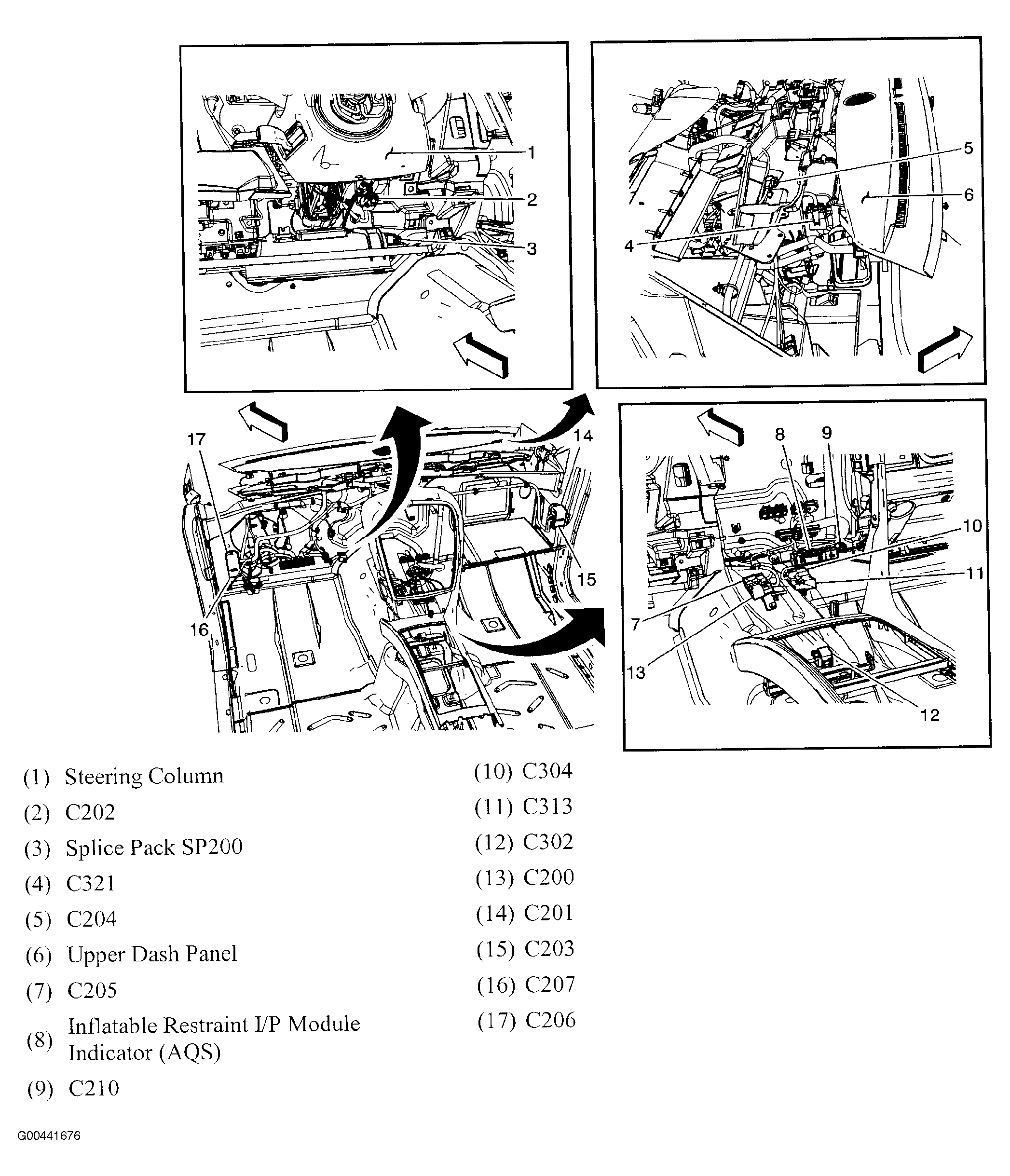

Fig 84: Passenger Compartment Harness Routing
Courtesy of GENERAL MOTORS CORP.

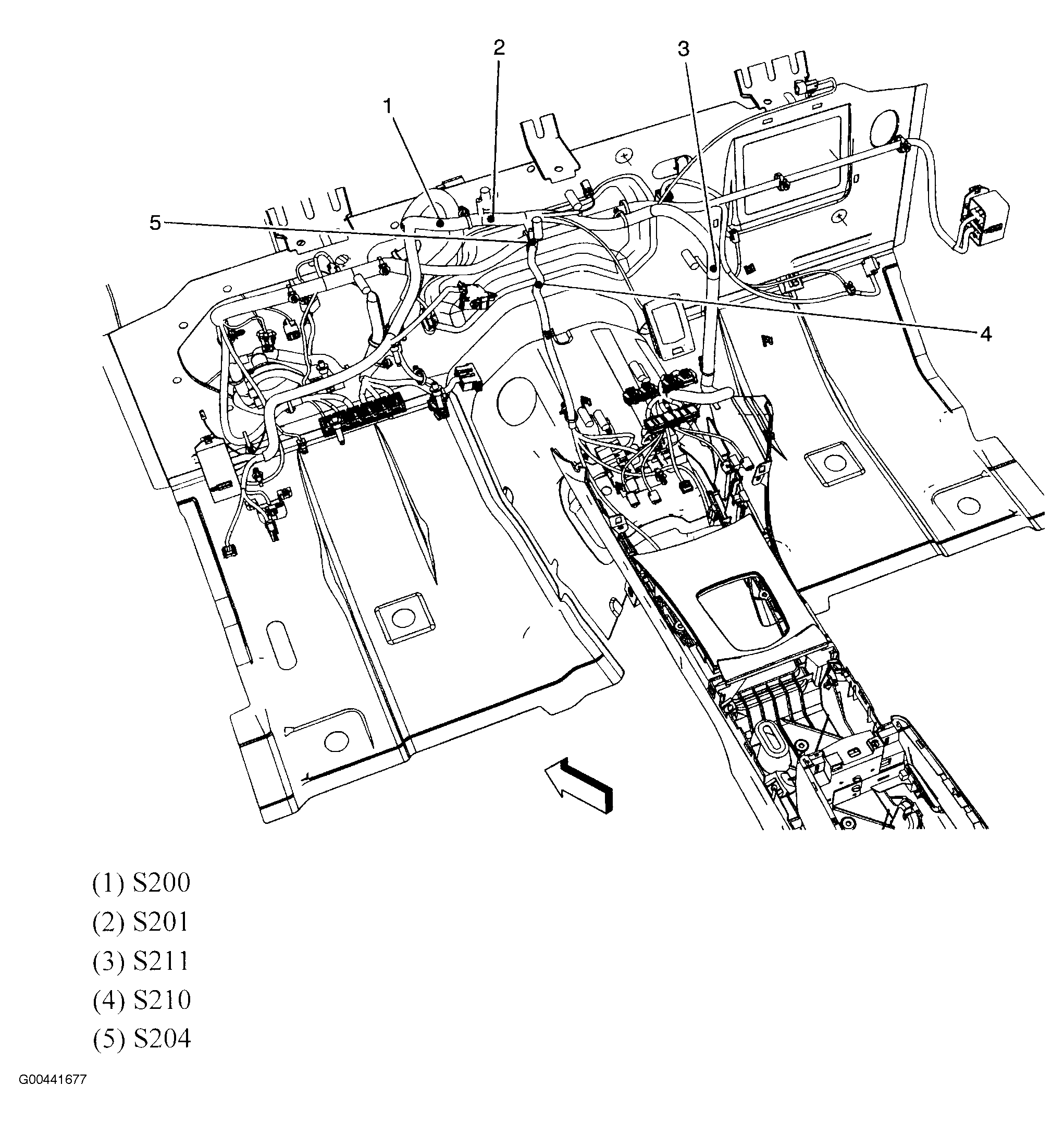

Fig 85: Dash Harness Splices
Courtesy of GENERAL MOTORS CORP.

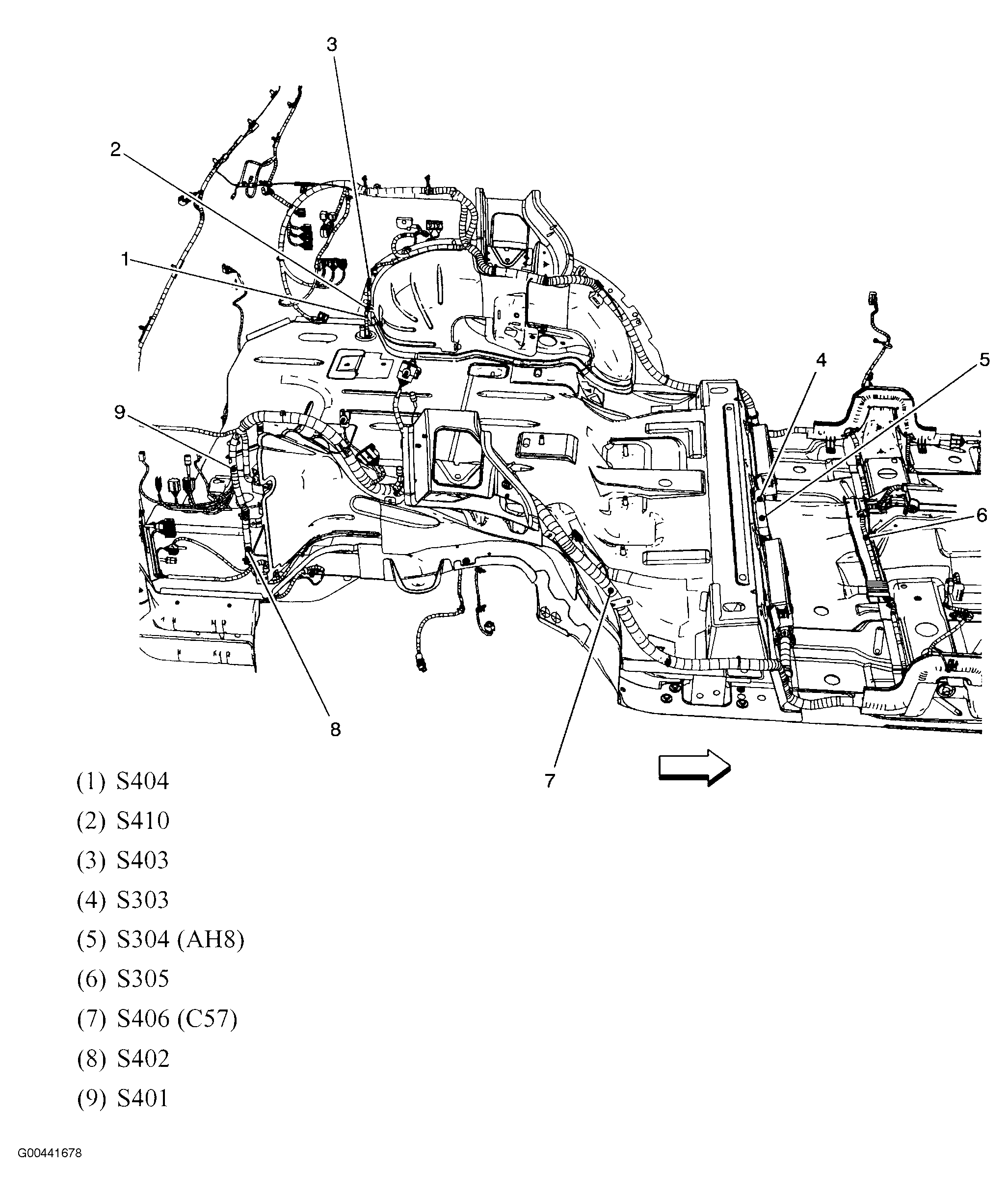

Fig 86: Body Harness Splices
Courtesy of GENERAL MOTORS CORP.
Fig 87: Rear Fascia Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 88: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 89: Left Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 90: Right Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

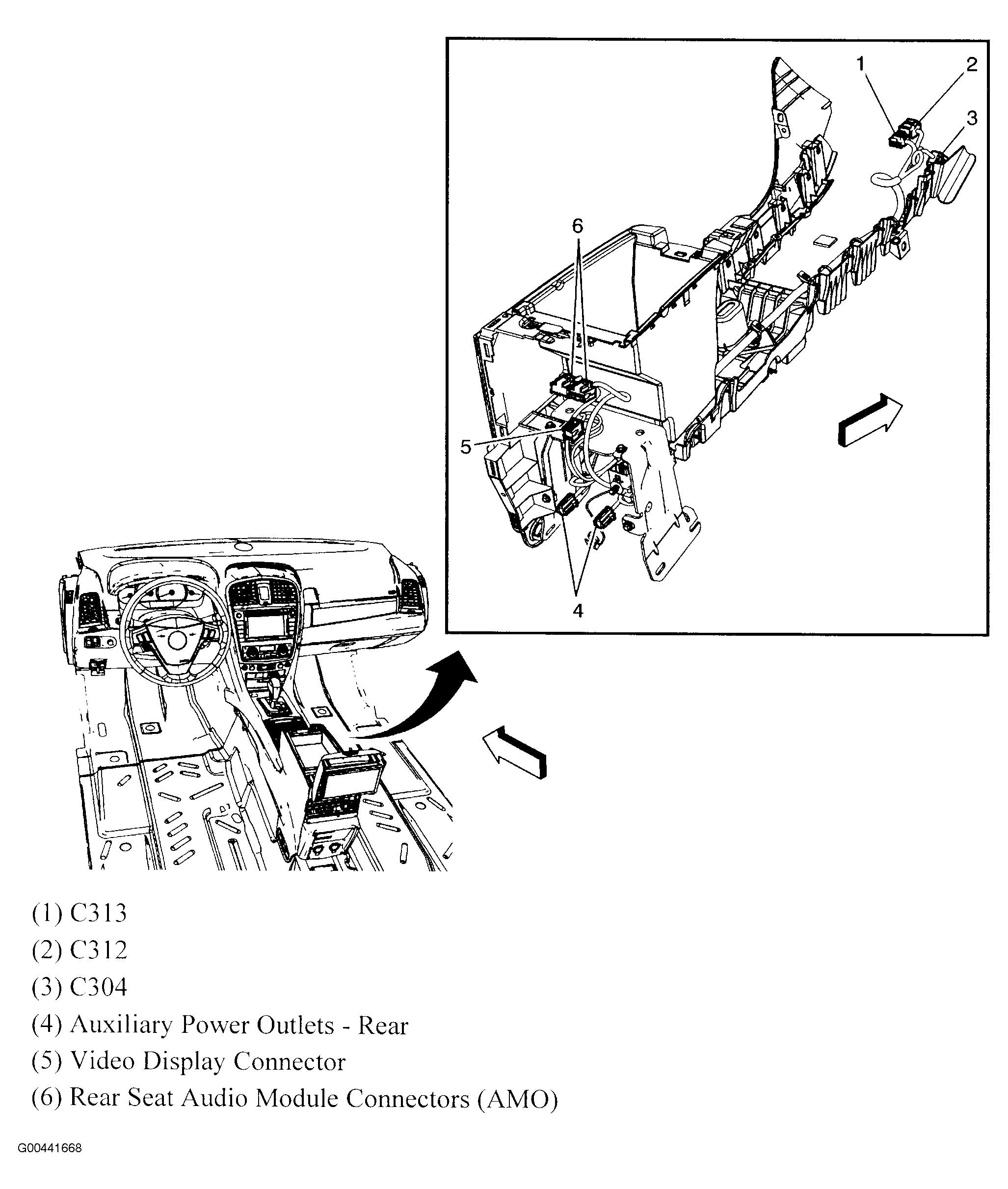

Fig 91: Underneath Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 92: Rear Of "D" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 93: Right Rear Side Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 94: A/T Electronic Components (5L40-E/5L50-E)
Courtesy of GENERAL MOTORS CORP.
Fig 95: Top Right Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 96: Right Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 97: Transmission Control Module (TCM)
Courtesy of GENERAL MOTORS CORP.
Fig 98: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 99: Front Engine Compartment (3.6L)
Courtesy of GENERAL MOTORS CORP.
