Immobilizer Component Views

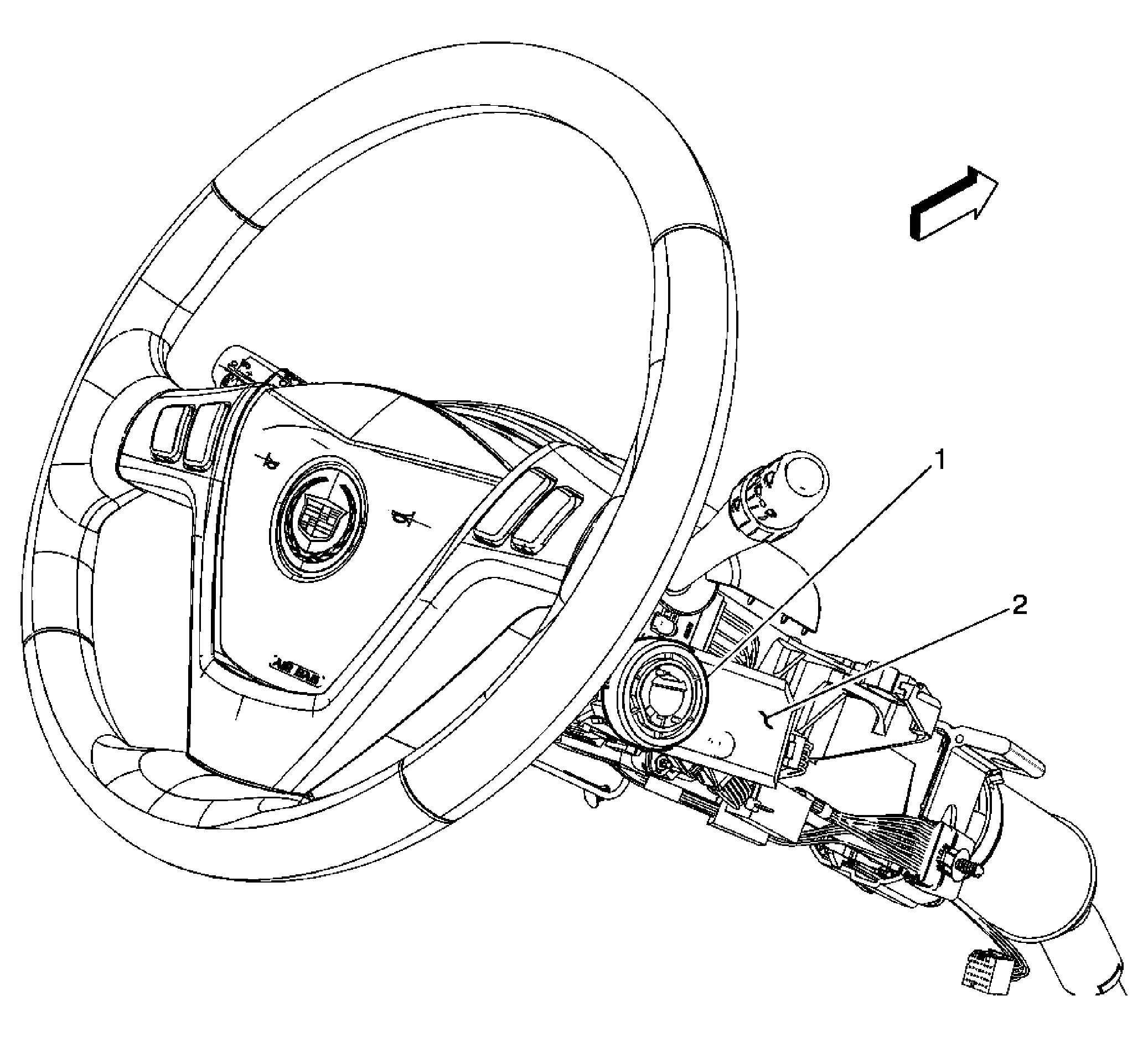

Fig 1: Steering Column Component Views
GM1842210Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Switch
2 Theft Deterrent Module (TDM)
