Adjustable Pedal Component Views (RHD)

Fig 1: Hydraulic Brake Components (RHD) Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Reservoir
2	Brake Fluid level Switch
3	Adjustable Accelerator Pedal Position Sensor (JF4)
4	Adjustable Pedal Motor (JF4)
5	Accelerator Pedal Position (APP) Sensor
6	Park Brake Switch
7	Adjustable Brake Pedal Position Sensor (JF4)

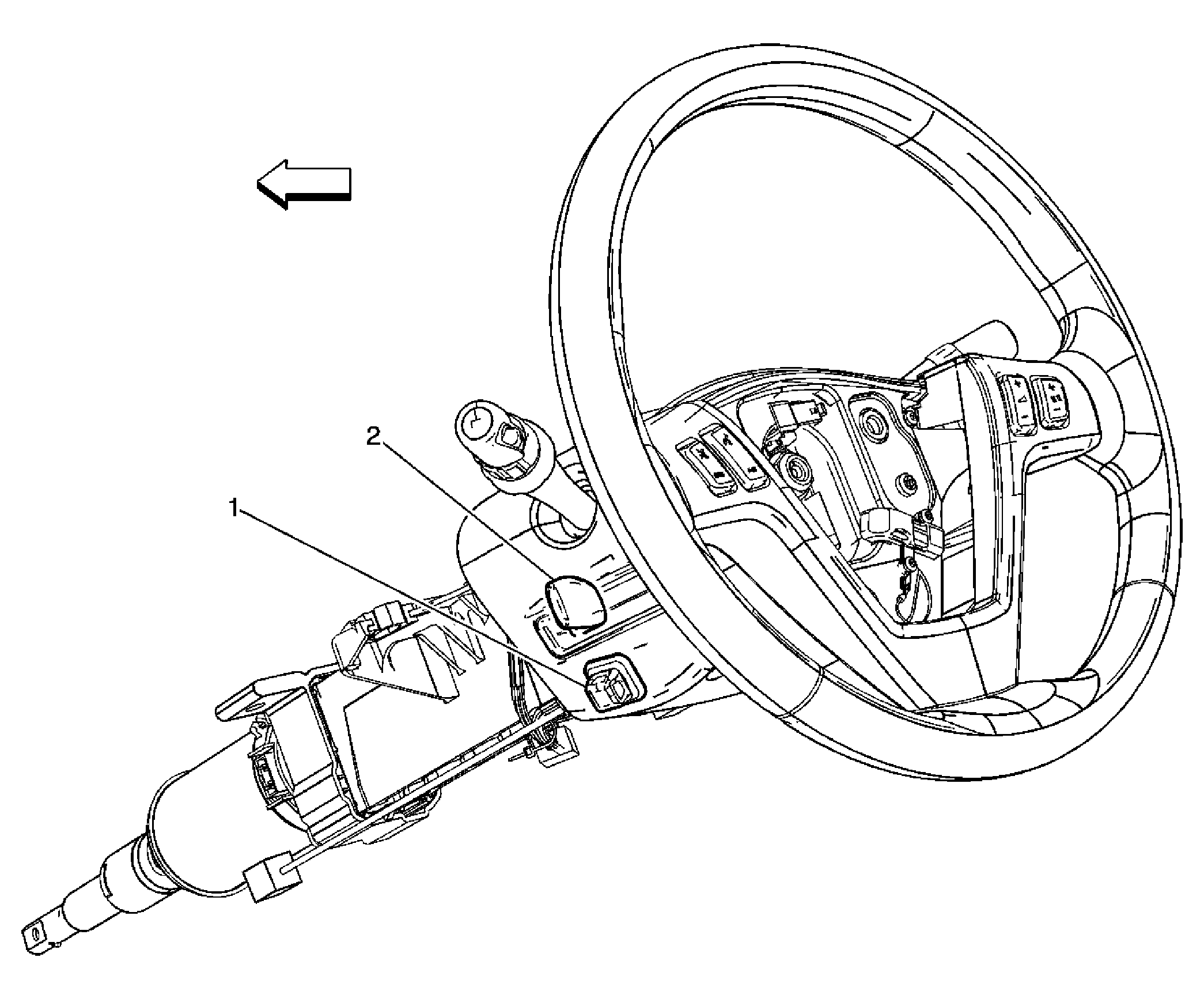

Fig 2: Adjustable Pedal Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Adjustable Pedal Switch (JF4)
2	Tilt Lever
