Installation Procedure

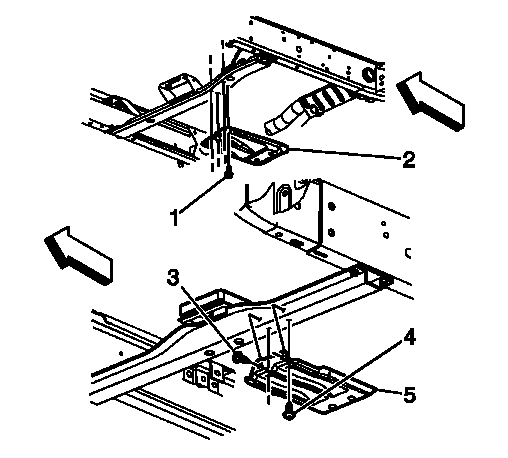

    Fig 1: View Of Transfer Case Shield & Bolts
    GM1696787Courtesy of GENERAL MOTORS CORP.
  1. Position the transfer case shield (1, 3, and 4).
    2. NOTE: Refer to Fastener Notice .
  2. Install the transfer case shield bolts (2 or 5).

    Tighten:  Tighten the bolts to 20 N.m (15 lb ft).

  3. Lower the vehicle.
