Installation Procedure

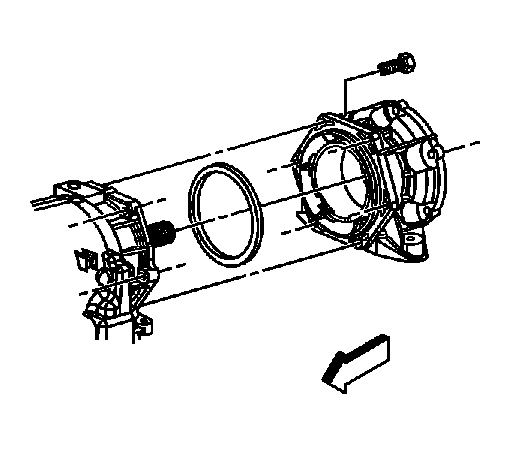

    Fig 1: View Of Transfer Case Adapter, Bolts & Seal
    GM652614Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Always use a new seal for the adapter. Do not use any type of sealant or adhesive in place of or with the seal.
  1. Install a NEW seal onto the adapter.
    2. IMPORTANT: The transfer case adapter must be installed so that the adapter is evenly seated to the transmission before installing the retaining nuts.
  2. Install the adapter.
    3. NOTE: Refer to Fastener Notice .
  3. Install the adapter bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

  4. Install the transfer case. Refer to Transfer Case Assembly Replacement .
