Intermediate Steering Shaft Boot Replacement

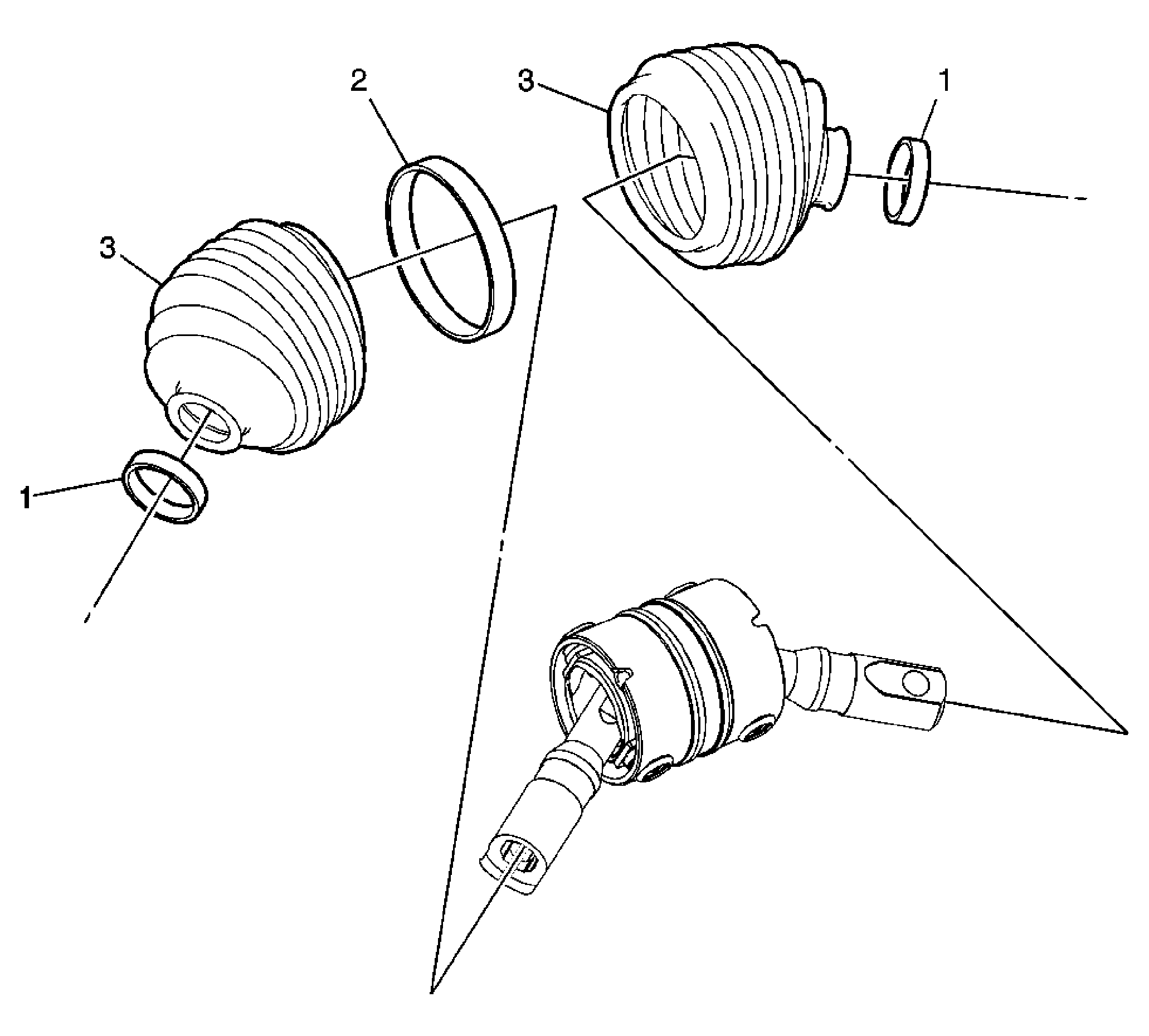

Fig 1: View Of Intermediate Steering Shaft Boots & Clamps

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the lower intermediate steering shaft. Refer to Lower Intermediate Steering Shaft Replacement .
1	Small Intermediate Steering Shaft Clamp (Qty: 2) Tip: For installation use J 43218 Clamp Pliers - Narrow Jaw or equivalent.
2	Large Intermediate Steering Shaft Clamp Tip: For installation use J 46588 Axle Seal Crimp Tool or equivalent. See Special Tools .
3	Intermediate Steering Shaft Boots (Qty: 2)
