Installation Procedure

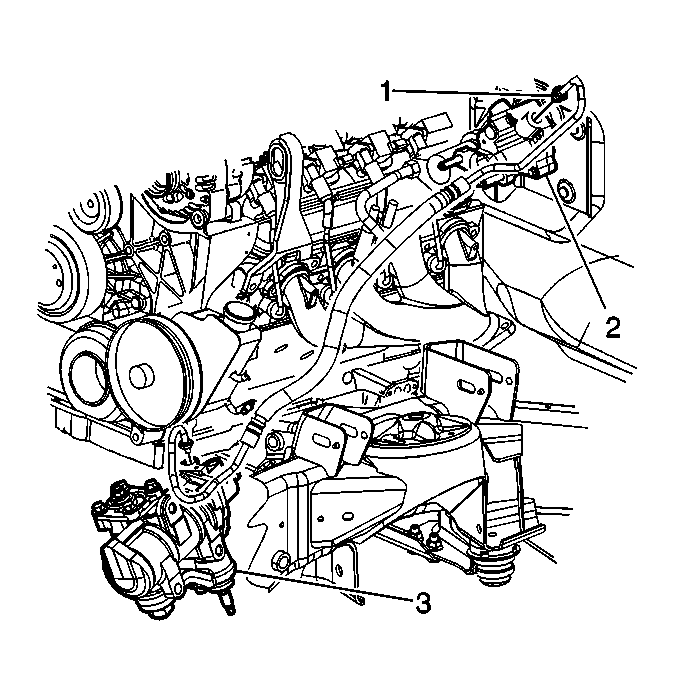

    Fig 1: Power Steering Gear Inlet Pipe/Hose (With Hydroboost)
    GM650863Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Installing Hoses Without Twists or Bends Notice .
  1. Route the hose in the same position the hose occupied prior to removal.
  2. Install the power steering gear inlet hose (1) to the brake booster (2). Hand tighten only.
    3. NOTE: Refer to Fastener Notice .
  3. Install the power steering gear inlet hose to the power steering gear.

    Tighten:  Tighten both power steering gear inlet hose fittings to 32 N.m (24 lb ft).

  4. Remove the drain pan from under the vehicle.
  5. Bleed the power steering system. Refer to Power Steering System Bleeding .
