SIR Component Views

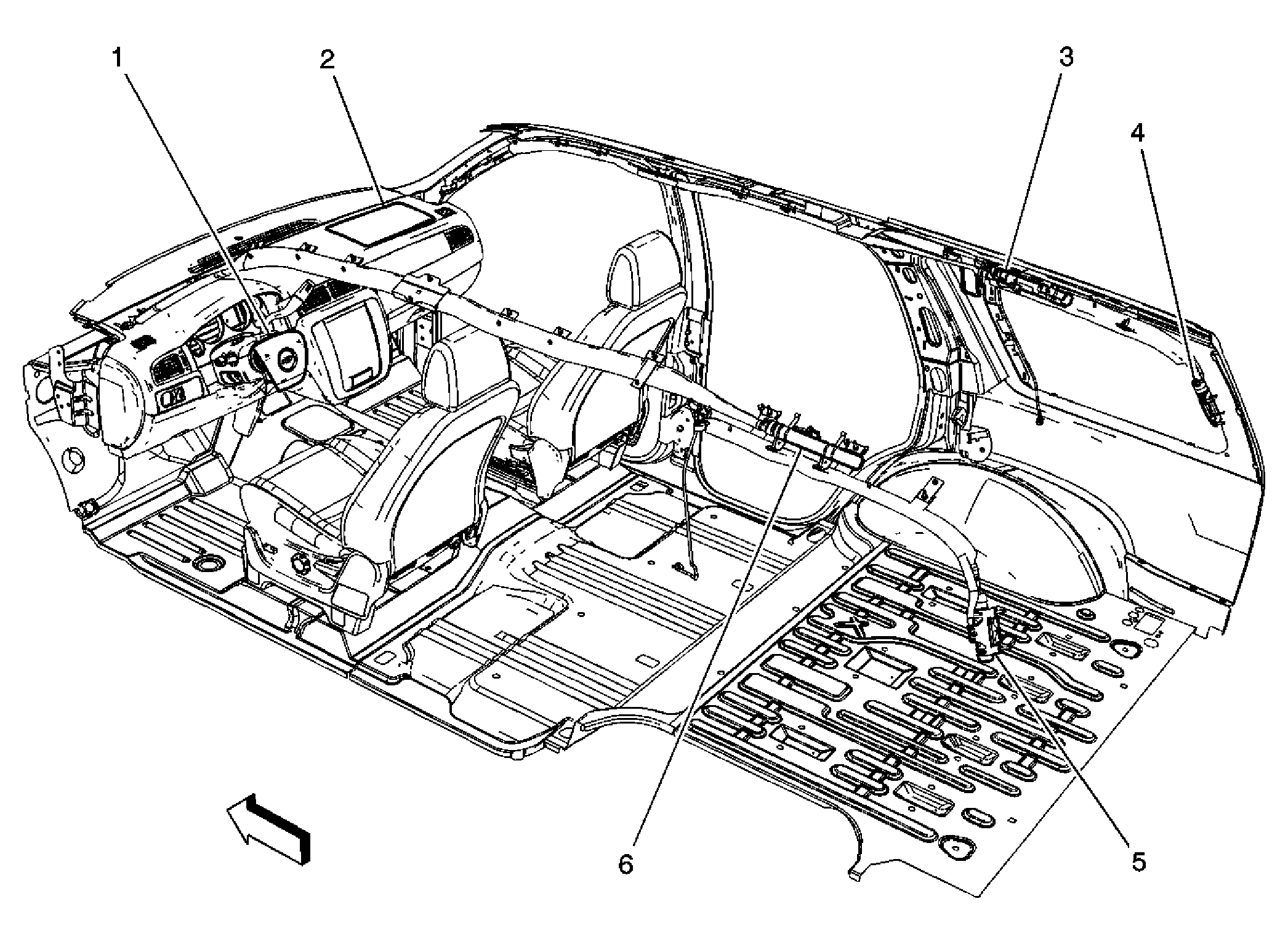

Fig 1: Air Bags

GM1714225

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module
2	Inflatable Restraint I/P Module
3	Inflatable Restraint Roof Rail Module - RF (ASF)
4	Inflatable Restraint Roof Rail Module - RR (ASF)
5	Inflatable Restraint Roof Rail Module - LR (ASF)
6	Inflatable Restraint Roof Rail Module - LF (ASF)

Fig 2: Front of the I/P (Except Z75)

GM1714203

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil
3	Instrument Panel Cluster (IPC)
4	Tow/Haul Switch
5	Driver Information Center (DIC) Switch
6	Ambient Light/Sunload Sensor Assembly (CJ2) or Ambient Light Sensor (CJ3)
7	HVAC Control Module
8	Auxiliary Power Outlet - Front 2
9	I/P Multifunction Switch Assembly
10	Auxiliary Power Outlet - Front 1
11	Radio
12	Transfer Case Shift Control Switch
13	Headlamp and Panel Dimmer Switch

Fig 3: Driver Door

GM1714202

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror - Driver
3	Memory/Heated Seat Switch (AN3 Except KB6) / Memory Seat Switch (KB6)
4	Driver Door Switch (DDS)
5	Speaker - LF Door
6	Window Motor - Driver
7	Inflatable Restraint Side Impact Sensor (SIS) - LF (ASF)
8	Door Latch Assembly - Driver

Fig 4: Passenger Door

GM1714232

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Passenger Door Switch (PDS)
3	Door Latch Assembly - Passenger
4	Inflatable Restraint Side Impact Sensor (SIS) - RF (ASF)
5	Speaker - RF Door
6	Window Motor - Passenger
7	Heated Seat Switch (KA6)

Fig 5: LR Door

GM1732576

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Window Motor - LR
3	Window Switch - LR
4	Speaker - LR Door
5	Inflatable Restraint Side Impact Sensor (SIS) - LR (ASF)
6	Door Latch Assembly - LR

Fig 6: RR Door

GM1714215

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - RR
2	Door Frame
3	Inflatable Restraint Side Impact Sensor (SIS) - RR (ASF)
4	Speaker - RR Door
5	Window Motor - RR
