Sunroof Window Replacement

WARNING: This page is about a different car, the 2006 GMC Sierra and 2006 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
NOTE: Refer to Fastener Notice . Refer to Fastener Tightening Specifications . Preliminary Procedures Open the sunshade. Open the sunroof window to the fully open position.
1	Sunroof Window Screws (Qty: 6) Tighten: 4 N.m (35 lb in) Tip: Open the sunshade. Screws are located on the inside edge of the window.
2	Sunroof Window Tip: Remove the window from the outside the vehicle.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Refer to Fastener Tightening Specifications .

Preliminary Procedures

Open the sunshade.
Open the sunroof window to the fully open position.

Sunroof Window Screws (Qty: 6)

Tighten: 4 N.m (35 lb in)

Tip:

Open the sunshade.
Screws are located on the inside edge of the window.

Sunroof Window
Tip: Remove the window from the outside the vehicle.

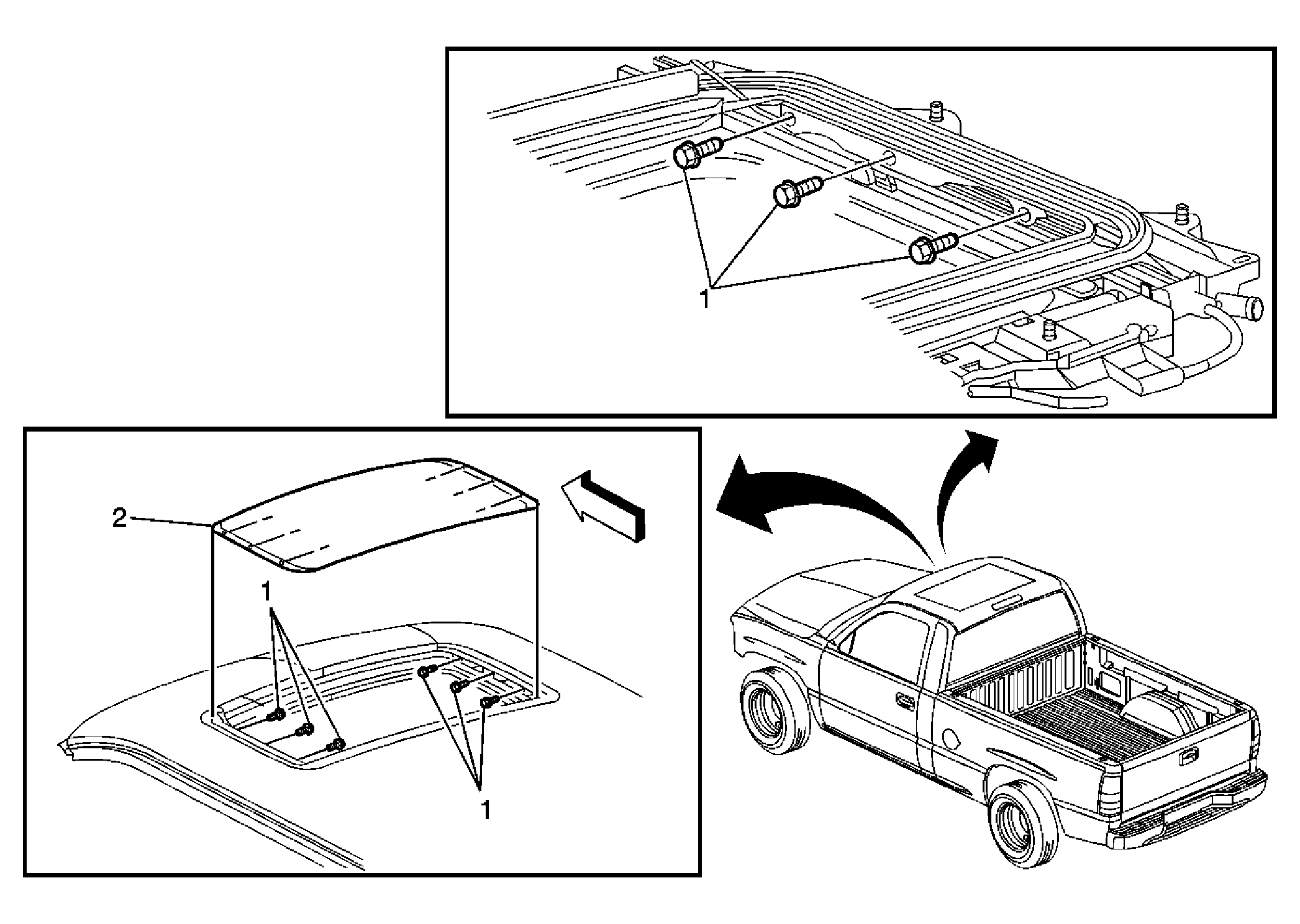

Fig 1: Locating Sunroof Window Screws

Courtesy of GENERAL MOTORS CORP.
