Engine Controls Component Views

WARNING: This page is about a different car, the 2006 GMC Sierra and 2006 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Powertrain Control Module (PCM) Component View

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 1

Callout	Component Name
1	Fuse Block - Underhood
2	Battery - Left
3	Powertrain Control Module (PCM)
4	Battery - Right (8Y9/TP2)

Fig 2: View Of Generator - 4.3L

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 2

Callout	Component Name
1	Air Cleaner Assembly
2	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
3	Air Inlet Tube
4	Generator

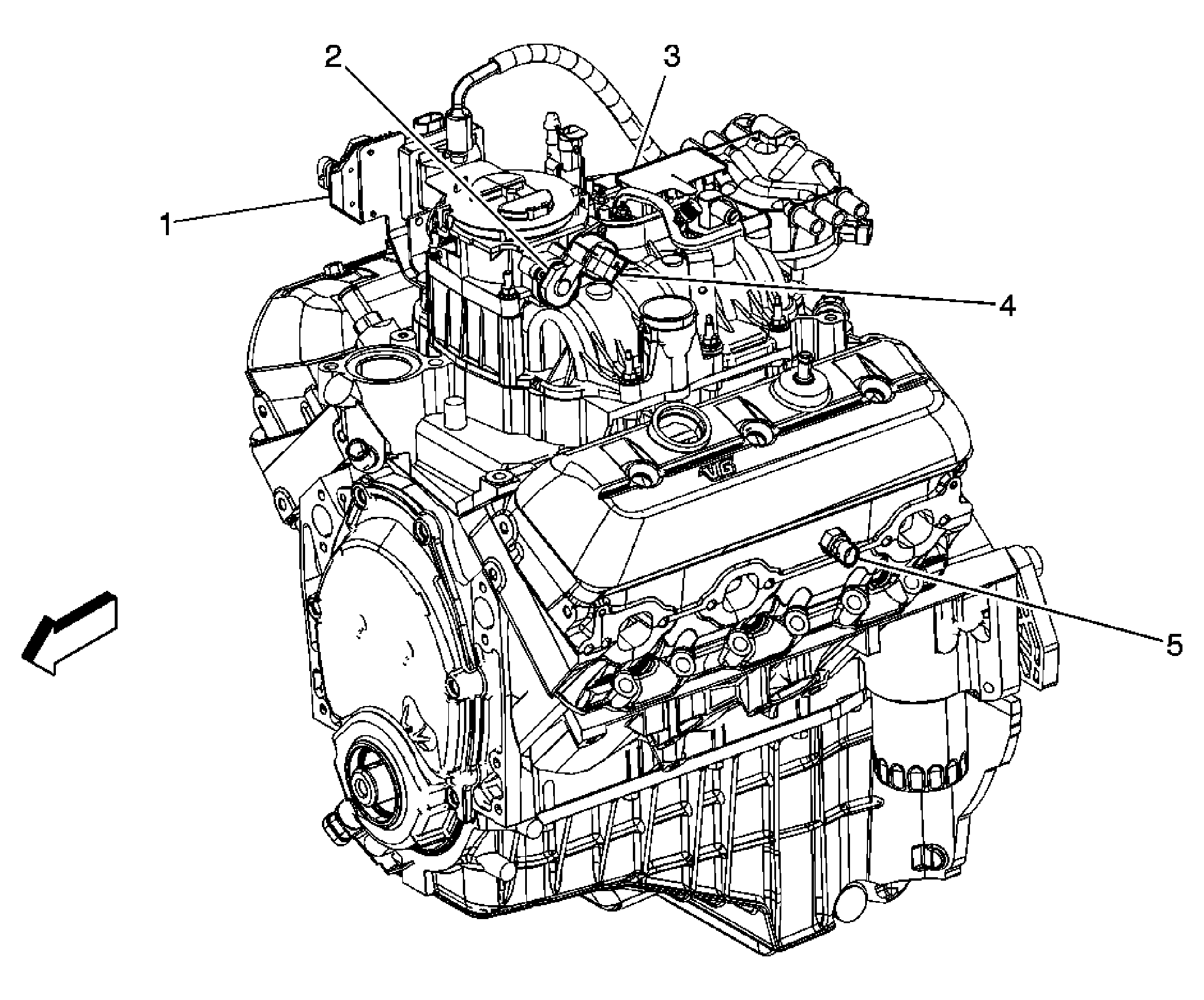

Fig 3: Left Front of Engine

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 3

Callout	Component Name
1	Ignition Control Module (ICM)
2	Throttle Position (TP) Sensor
3	Central Sequential Fuel Injection (Central SFI)
4	Idle Air Control (IAC) Valve
5	Engine Coolant Temperature (ECT) Sensor

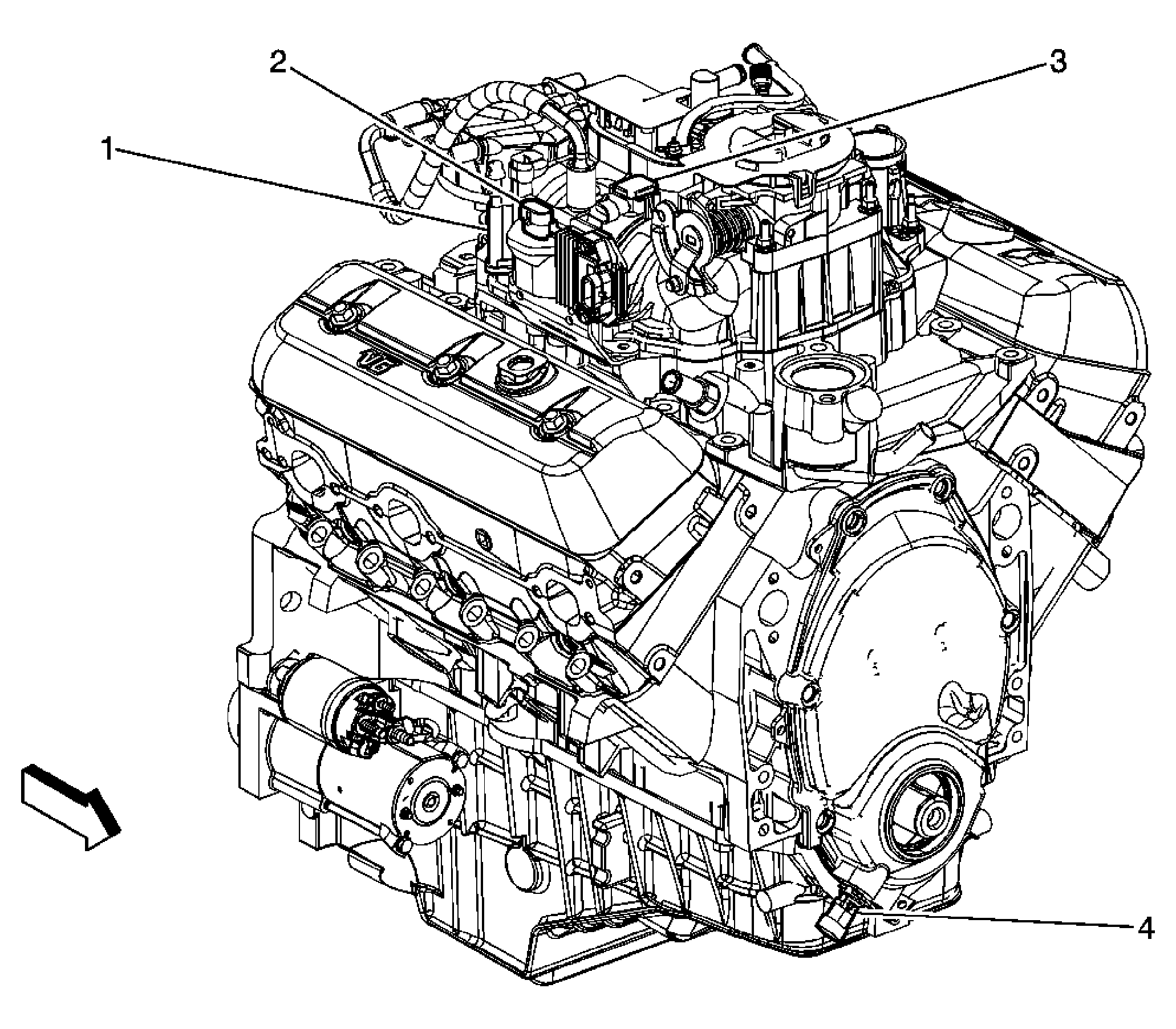

Fig 4: Right Front of the Engine

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 4

Callout	Component Name
1	Evaporative Emission (EVAP) Canister Purge Solenoid
2	Ignition Coil
3	Manifold Absolute Pressure (MAP) Sensor
4	Crankshaft Position (CKP) Sensor

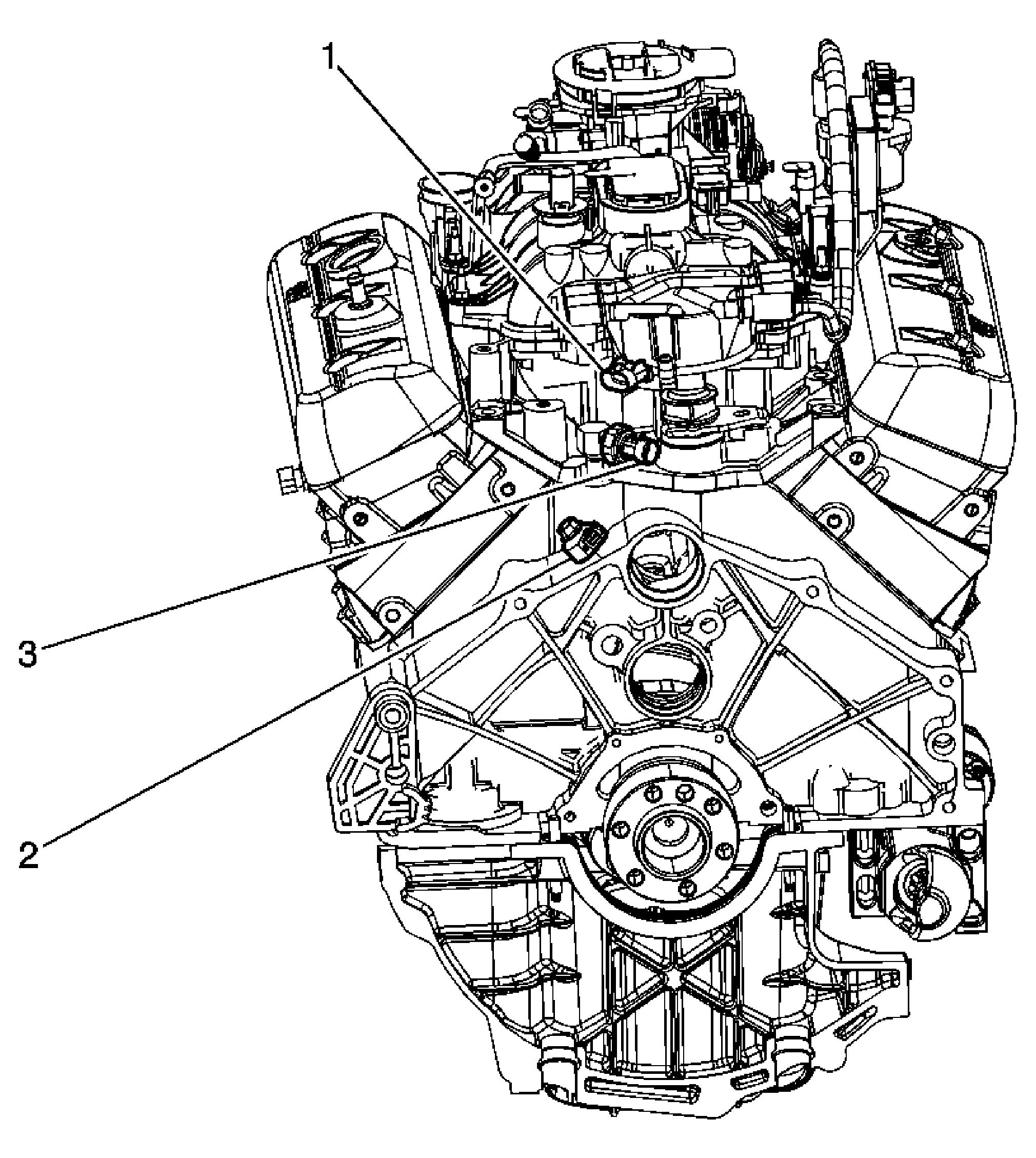

Fig 5: Rear of the Engine

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 5

Callout	Component Name
1	Camshaft Position (CMP) Sensor
2	Knock Sensor (KS)
3	Engine Oil Pressure (EOP) Sensor

Fig 6: Heated Oxygen Sensors Component View

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 6

Callout	Component Name
1	HO2S Bank 2 Sensor 2
2	HO2S Bank 1 Sensor 2
3	HO2S Bank 1 Sensor 1
4	HO2S Bank 2 Sensor 1

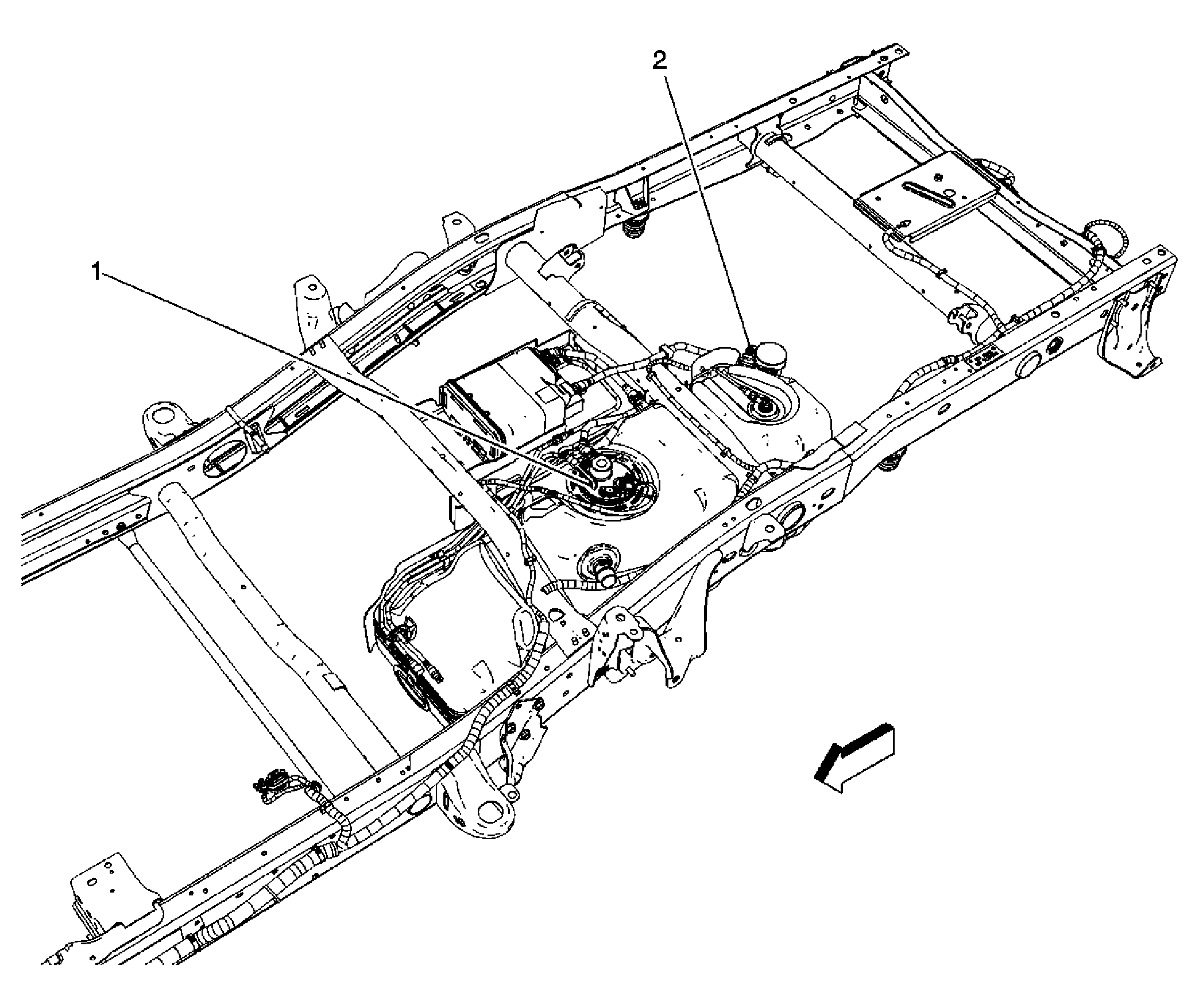

Fig 7: Chassis Mounted Fuel/EVAP Controls - 10 Series

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 7

Callout	Component Name
1	Fuel Pump and Sender Assembly
2	Evaporative Emissions (EVAP) Canister Vent Solenoid

Fig 8: Fuel Tank Pressure (FTP) Sensor and Fuel Pump and Sender Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 8

Callout	Component Name
1	Fuel Tank
2	Fuel Tank Pressure (FTP) Sensor Connector
3	Fuel Level Sensor
4	Fuel Pump and Sender Assembly
