Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster panel. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER .
  2. Remove the screws (2) that secure the radio to the support bracket (1).
  3. Remove the radio from the support bracket enough to access the connectors at rear of the radio.
  4. Disconnect the electrical/audio and antenna cable connectors from the radio.
  5. Remove the radio.

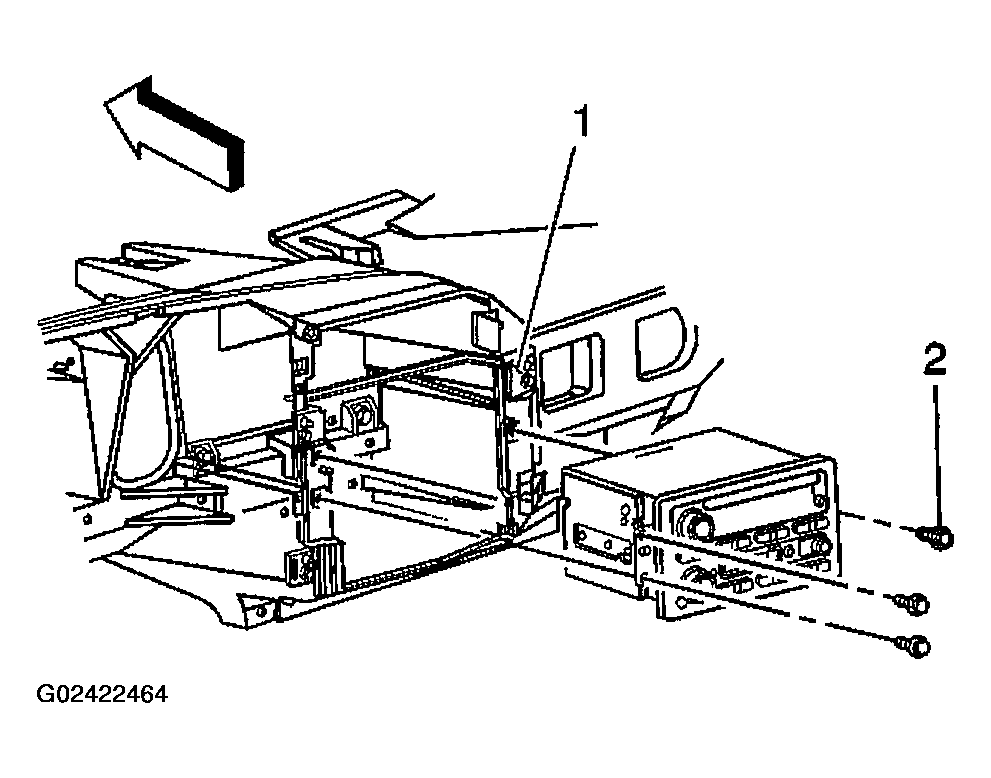

    Fig 1: Removing Radio
    G02422464Courtesy of GENERAL MOTORS CORP.
  6. If removing the radio mounting bracket. Perform the following steps:
    1. Detach the clip retaining the HVAC harness to the radio mounting bracket.
    2. Remove the screws (2) retaining the radio mounting bracket (1) to the instrument panel carrier.
    3. Remove the radio mounting bracket from the vehicle.

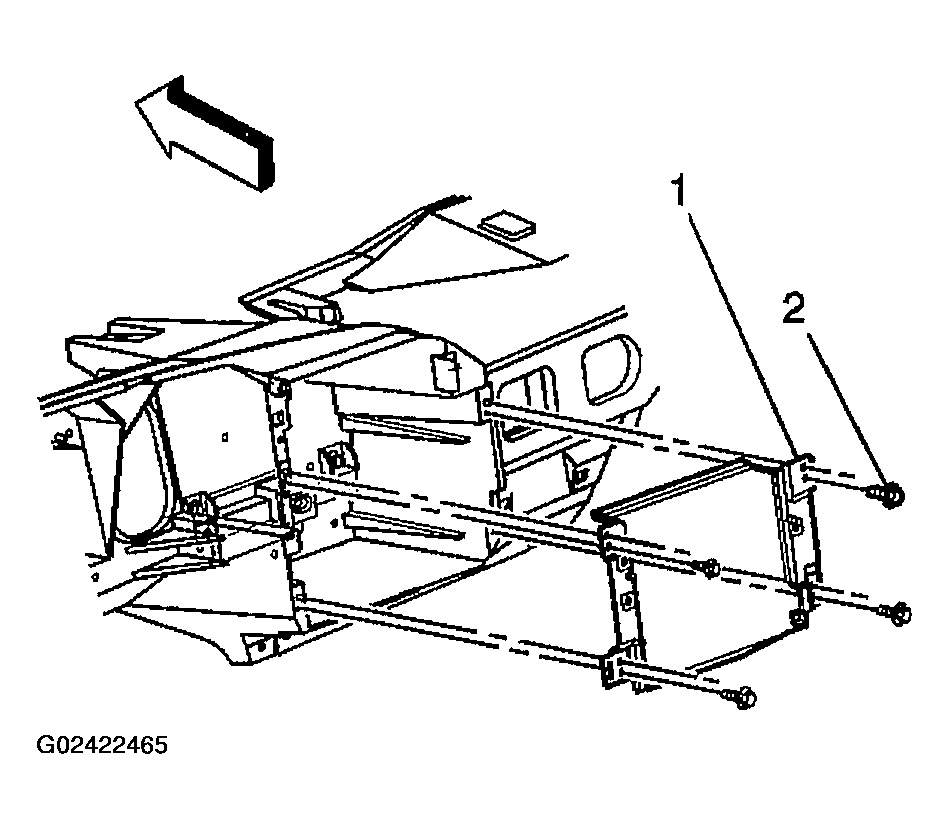

    Fig 2: Removing Radio Mounting Bracket
    G02422465Courtesy of GENERAL MOTORS CORP.
