Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the antenna cable (1) to the vehicle.

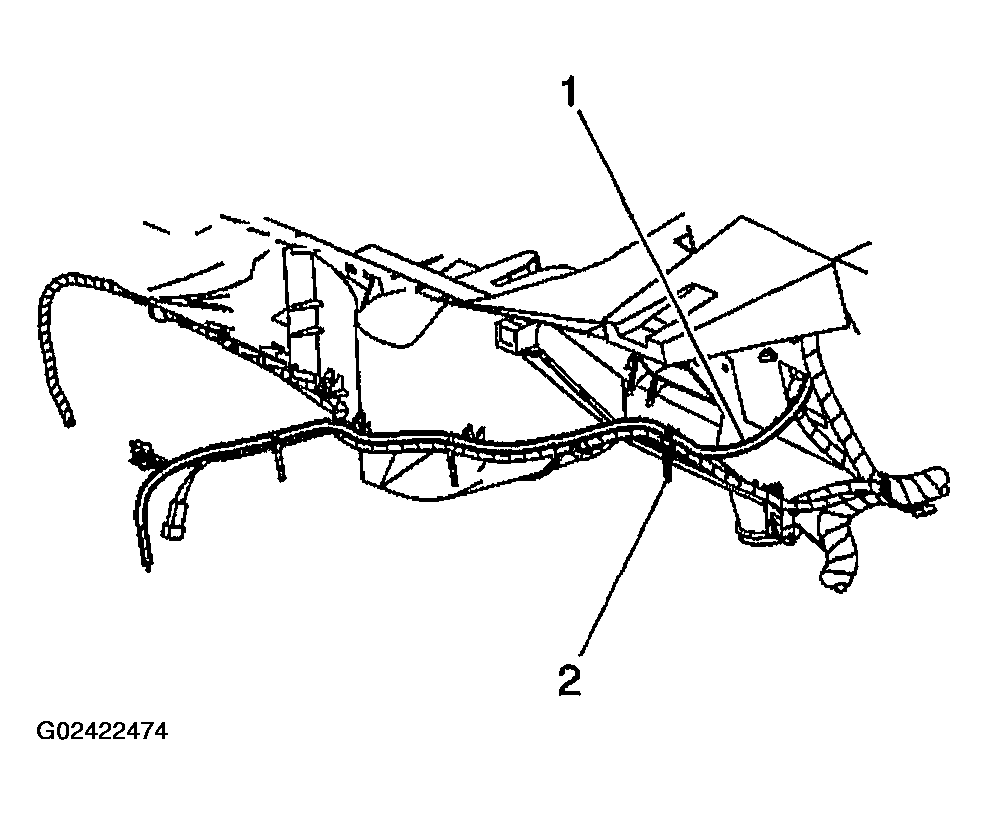

    Fig 1: Installing Antenna Cable To Vehicle
    G02422474Courtesy of GENERAL MOTORS CORP.
  2. Install the cable (1) to the retaining clips on the instrument panel carrier.
  3. Connect the antenna cable connector at the lower right of the instrument panel.
  4. Install the engine cover. Refer to ENGINE COVER REPLACEMENT .
  5. Install the radio mounting bracket and radio. Refer to Radio Replacement .

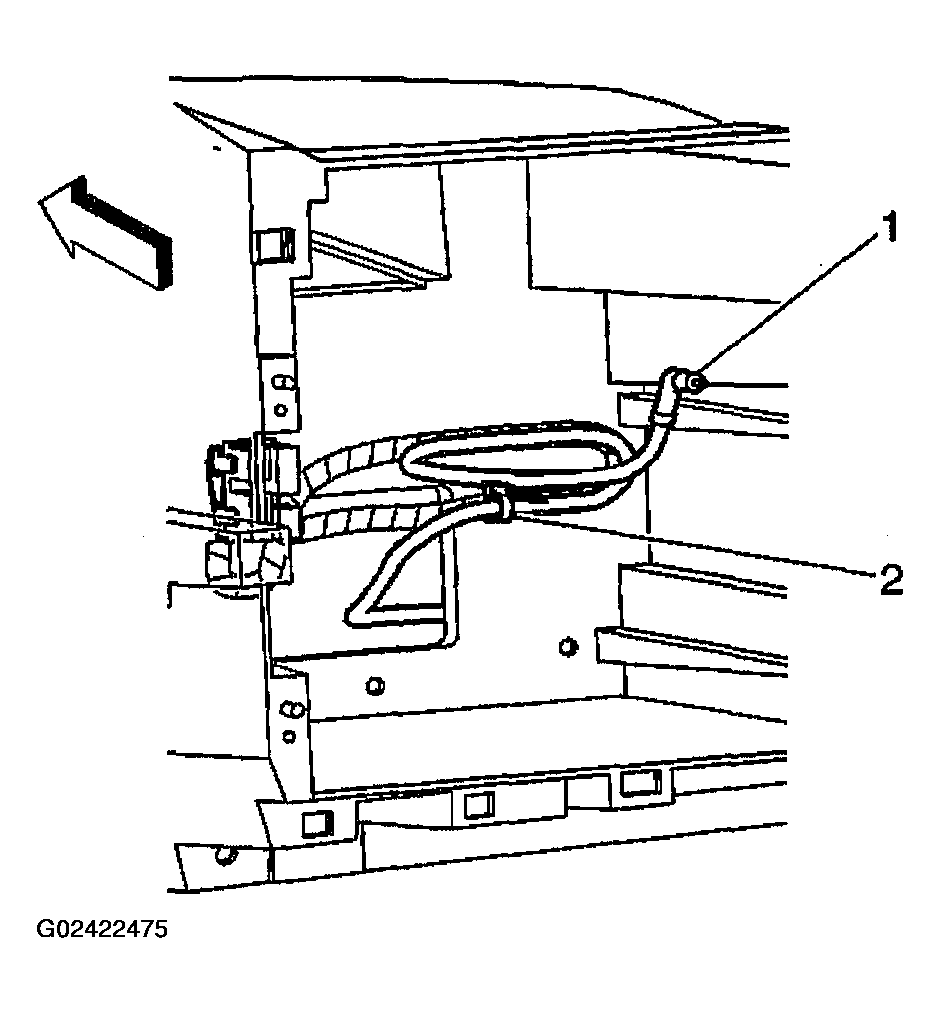

    Fig 2: Installing Antenna Cable To Retaining Clips
    G02422475Courtesy of GENERAL MOTORS CORP.
