Junction Block - Left I/P X8

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

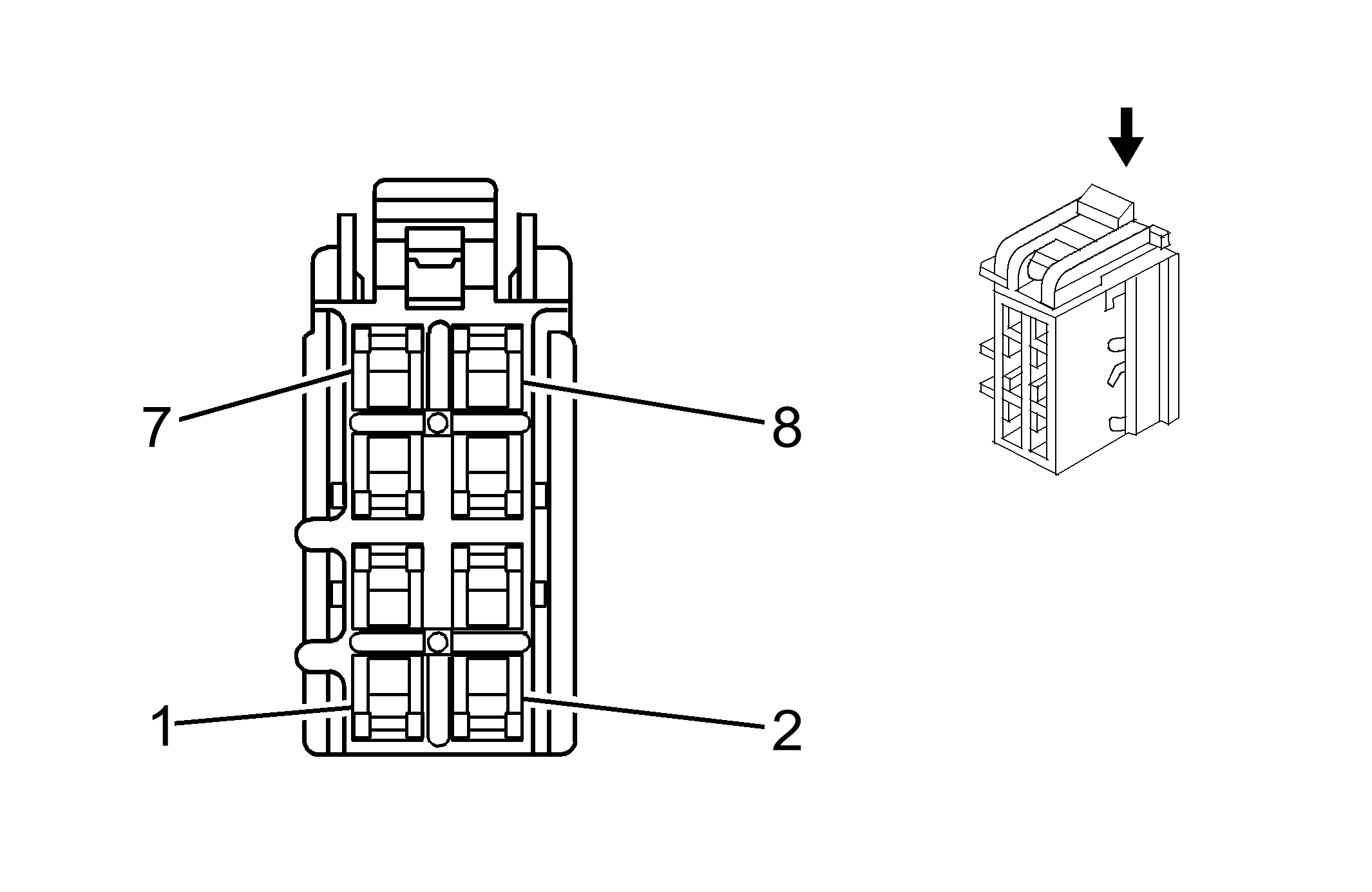

Fig 1: Junction Block - Left I/P X8

Courtesy of GENERAL MOTORS CORP.

Pin	Wire Color	Circuit No.	Function
1-2	-	-	Not Used
3	1 BK	1050	Ground
4	0.35 YE	43	Accessory Voltage (A48)
5	0.35 PU	5234	Passenger Seat Belt Indicator (AL0)
6	0.35 D-BU	2307	Passenger Air Bag On Indicator Control (AL0/C99)
7	0.35 D-GN/BK	2308	Passenger Air Bag Off Indicator Control (AL0/C99)
8	-	-	Not Used

Connector Part Information

OEM: 13516835
Service: 19149293
Description: 8-Way F GT 280 Series (GN)

Terminal Part Information

Pins: 3, 4, 5, 6, 7
Terminal/Tray: 13525970/4
Core/Insulation Crimp: Pins 3 - 2/A
Core/Insulation Crimp: Pins 4, 5, 6, 7 - E/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)
