Audio Amplifier X2 (UQA, without STZ or Y91)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

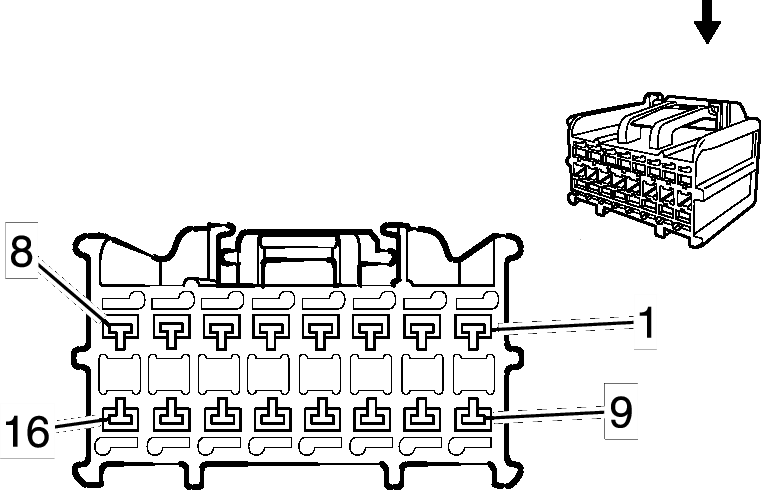

Audio Amplifier X2 (UQA, without STZ or Y91)
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 0.8 D-GN | 117 | Right Front Speaker Output (-) |
| 2 | 0.8 L-GN | 200 | Right Front Speaker Output (+) |
| 3 | 0.8 GY | 118 | Left Front Speaker Output (-) |
| 4 | 0.8 TN | 201 | Left Front Speaker Output (+) |
| 5 | 0.8 L-BU | 115 | Right Rear Speaker Output (-) |
| 6 | 0.8 D-BU | 46 | Right Rear Speaker Output (+) |
| 7 | 0.8 YE | 116 | Left Rear Speaker Output (-) |
| 8 | 0.8 BN | 199 | Left Rear Speaker Output (+) |
| 9-16 | - | - | Not Used |
Connector Part Information
|
Terminal Part Information
|
