Transfer Case Shift Control Module Replacement

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

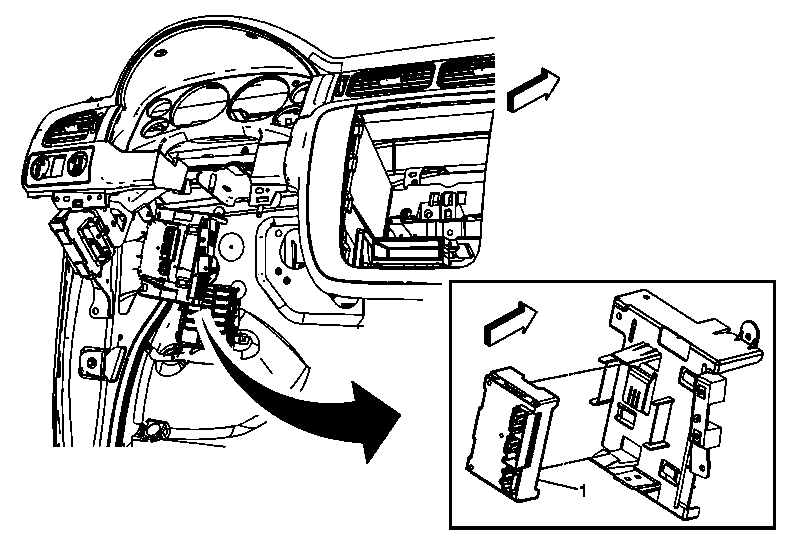

Fig 1: Transfer Case Shift Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Shift Control Module Procedure Disconnect the electrical connector. Remove the module from the module bracket by releasing the retaining tabs. If installing a new module, perform the transfer case shift sontrol module programing and setup. Refer to Control Module References .
