Front Seat Lumbar Control Switch Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

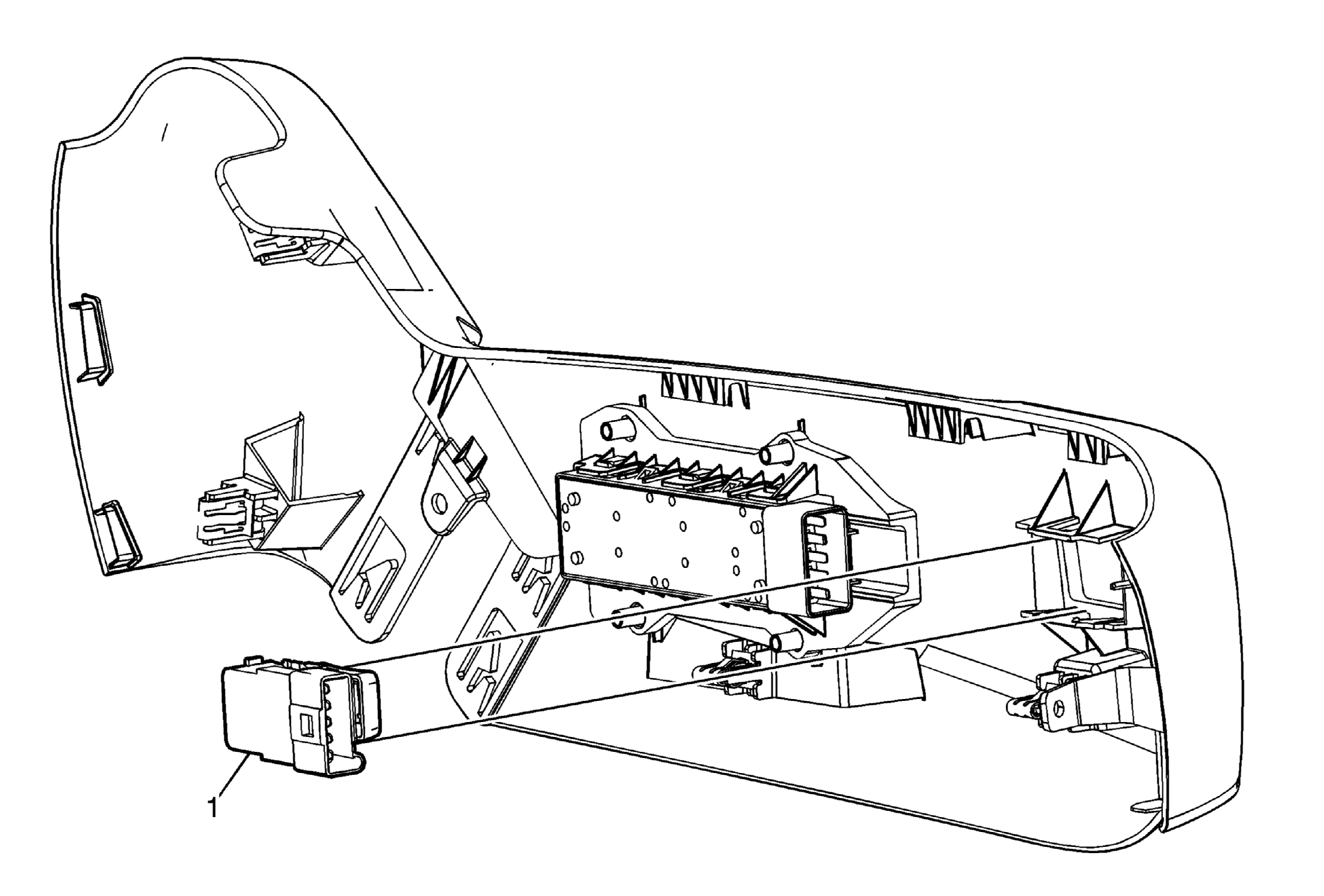

Fig 1: Front Seat Lumbar Control Switch Replacement
GM1969526Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the front seat adjuster switch bezel. Refer to Driver Seat and Passenger Seat Adjuster Switch Bezel Replacement .
1 Front Seat Lumbar Control Switch
Tip:  Use a flat-bladed tool to release the switch from the switch bezel.
