Driver Seat Adjuster Memory Switch Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

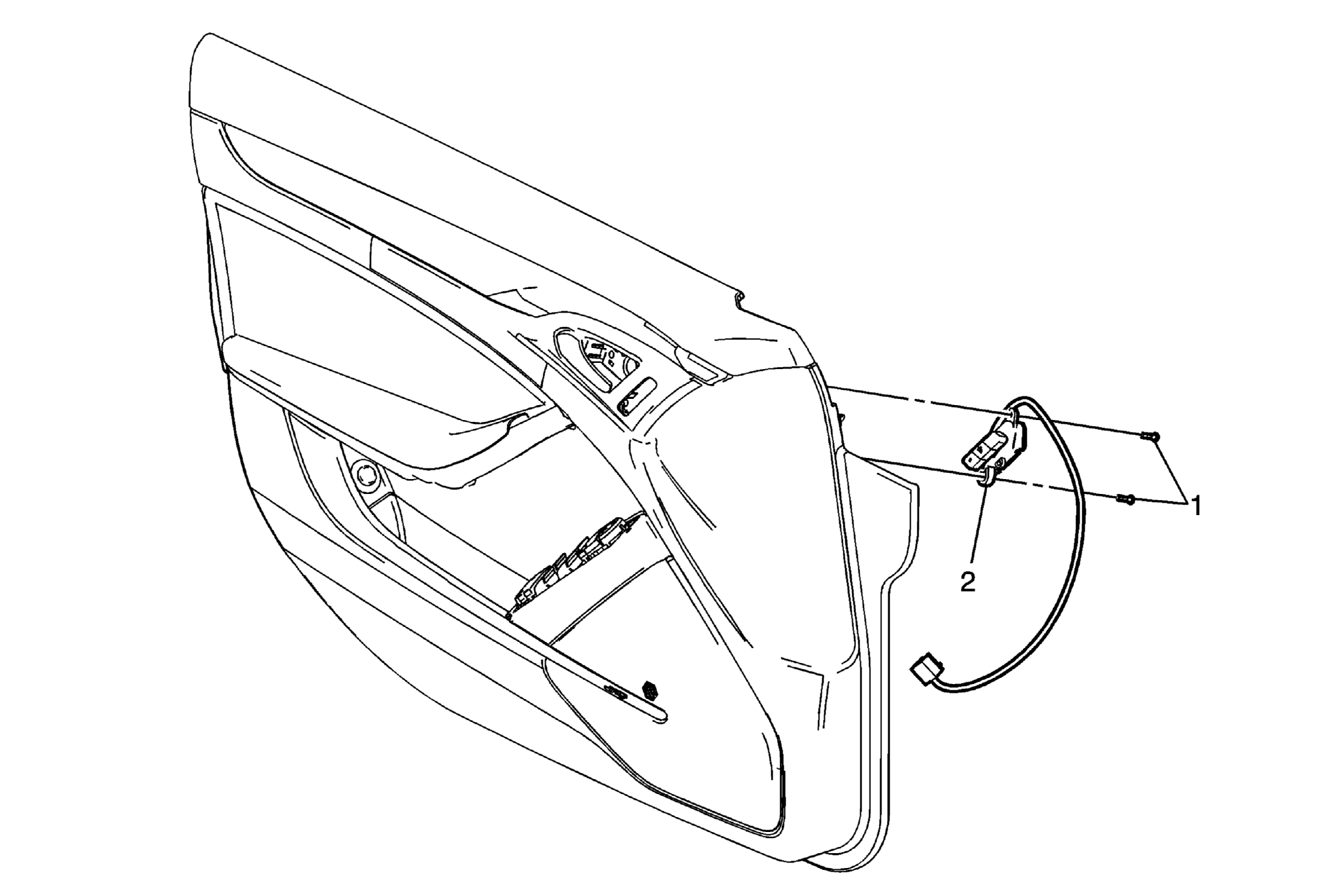

Fig 1: Driver Seat Adjuster Memory Switch Replacement
GM1971228Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedures:
Remove the driver door panel trim. Refer to Front Side Door Trim Panel Replacement .
1 Driver Seat Adjuster Memory Switch Screw (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)
2 Driver Seat Adjuster Memory Switch

Procedure

  1. Disconnect the electrical connector.
  2. Refer to Control Module References for programming and setup information.
