Front Fog Lamp Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

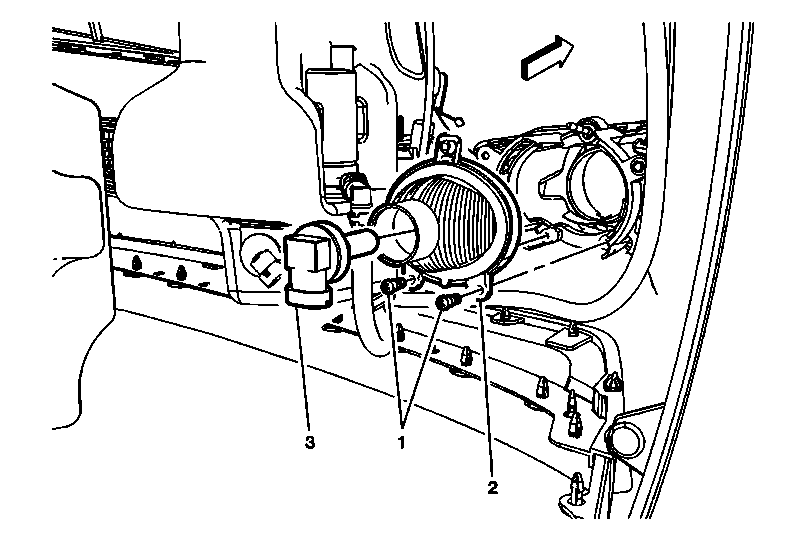

Fig 1: Front Fog Lamp Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove either the LF or RF wheelhouse extension. Refer to Wheelhouse Extension Replacement . Disconnect the fog lamp bulb socket electrical connector.
1	Front Fog Lamp Adjuster Screw Procedure Remove the adjuster screw from the fog lamp bracket and lamp assembly. Count the number of turns when removing the adjuster screw for a reference upon installation. Aim the fog lamps after installation. Refer to Fog Lamp Aiming .
2	Front Fog Lamp Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Front Fog Lamp Assembly Tip: Remove the lamp assembly from the fog lamp bracket.
4	Front Fog Lamp Bulb Socket CAUTION: Refer to Halogen Bulb Caution . Tip: Turn the bulb socket counterclockwise and remove from the lamp assembly.
