Displays and Gages Component Views

Fig 1: Right Side Of The Engine
GM1714216Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Coil 8
2 Ignition Coil 6
3 Ignition Coil 4
4 Manifold Absolute Pressure (MAP) Sensor
5 Throttle Body
6 Ignition Coil 2
7 Knock Sensor (KS) - 2
8 Oil Level Switch
9 Starter
10 Valve Lifter Oil Manifold (VLOM) Assembly (DOD)
11 Engine Oil Pressure (EOP) Sensor
Fig 2: Front Of The I/P (Except Z75)
GM1714203Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal Multifunction Switch
2 Inflatable Restraint Steering Wheel Module Coil
3 Instrument Panel Cluster (IPC)
4 Tow/Haul Switch
5 Driver Information Center (DIC) Switch
6 Ambient Light/Sunload Sensor Assembly (CJ2) or Ambient Light Sensor (CJ3)
7 HVAC Control Module
8 Auxiliary Power Outlet - Front 2
9 I/P Multifunction Switch Assembly
10 Auxiliary Power Outlet - Front 1
11 Radio
12 Transfer Case Shift Control Switch
13 Headlamp and Panel Dimmer Switch
Fig 3: Front Of The I/P (Z75)
GM1732568Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Cluster (IPC)
2 Driver Information Center (DIC) Switch
3 Ambient Light/Sunload Sensor Assembly (CJ2)
4 Speaker - Center
5 Analog Clock
6 Radio
7 Traction Control / Rear Object Detection Switch
8 HVAC Control Module
9 I/P Multifunction Switch Assembly
10 Auxiliary Power Outlet - Front 1
11 Noise Compensation Microphone (Y91)
12 Transfer Case Shift Control Switch
13 Fuse Block - I/P
14 Headlamp and Panel Dimmer Switch
Fig 4: Chassis Fuel Components (Short Wheel Base)
GM1714208Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis
2 Evaporative Emissions (EVAP) Canister Vent Solenoid Valve
3 Fuel Tank Pressure (FTP) Sensor
4 Fuel Pump and Sender Assembly

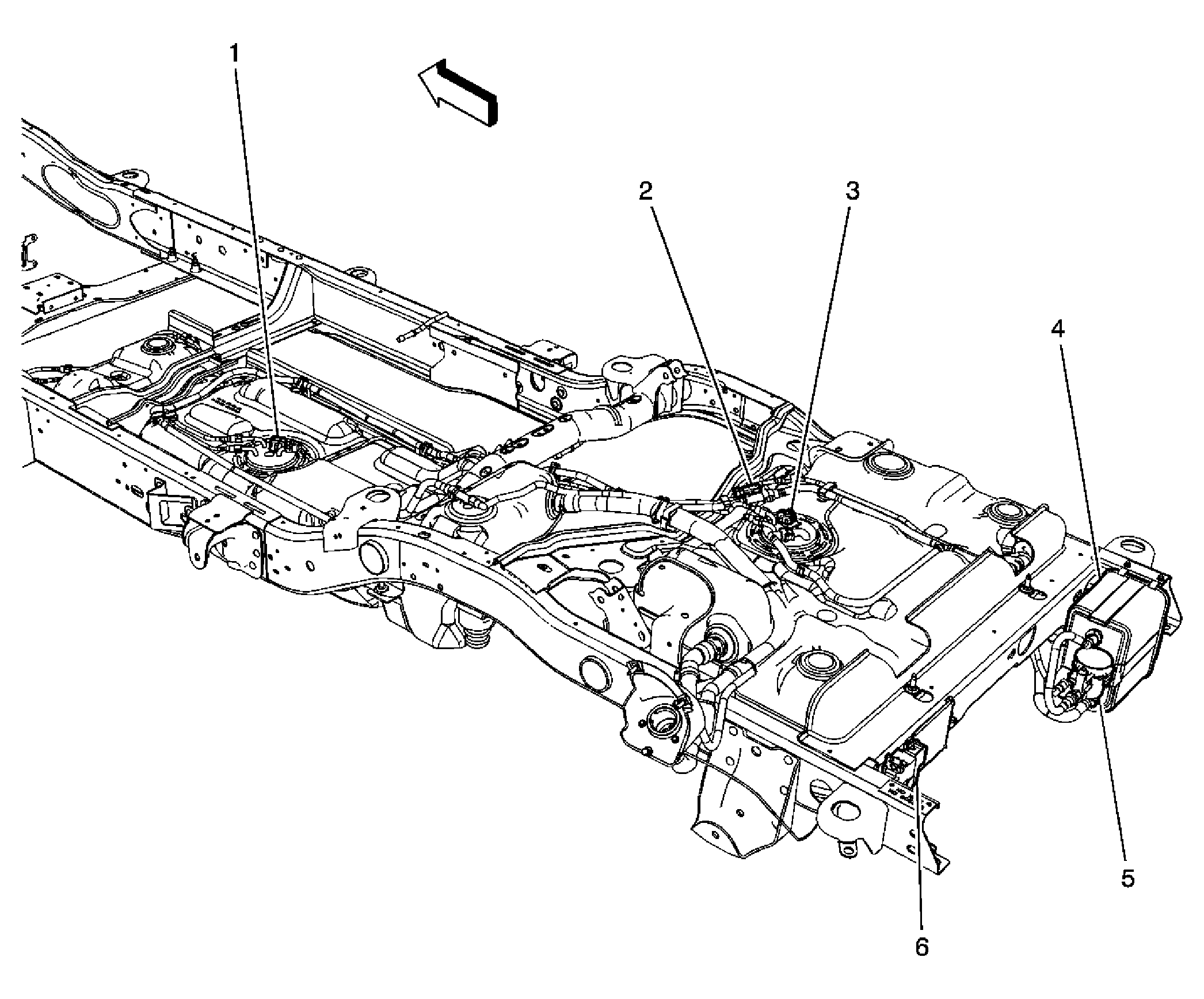

Fig 5: Chassis Fuel Components (Long Wheel Base)
GM1750324Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Pump and Sender Assembly - Primary
2 Fuel Tank Pressure (FTP) Sensor
3 Fuel Pump and Sender Assembly - Secondary (Except NQZ)
4 EVAP Canister
5 Evaporative Emission (EVAP) Canister Vent Solenoid Valve
6 Electronic Suspension control (ESC) Module
