Front Side Door Window Channel Replacement

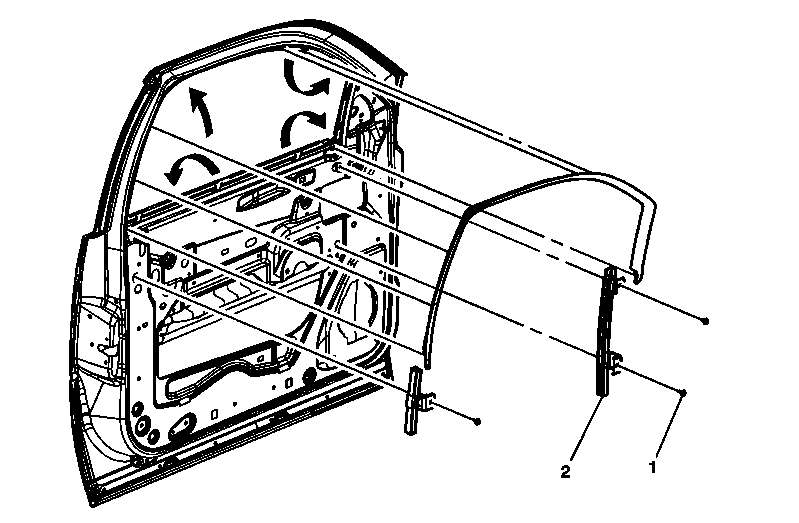

Fig 1: View Of Front Door Window Run Channel & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the front door window regulator. Refer to Front Side Door Window Regulator Replacement (Power) .
1	Front Door Window Run Channel Bolts NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Front Door Window Run Channel Tip: Apply tape to the molding to prevent scratches.
