Mirror Replacement - Power

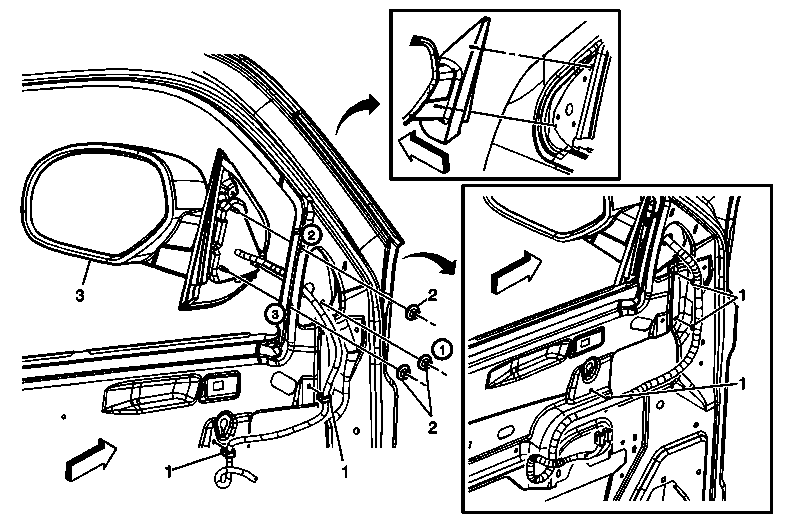

Fig 1: View Of Outside Power Mirror & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Outside Power Mirror Wiring Retainer Clips (Qty: 3)
2	Outside Power Mirror Nuts (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in) Tip: Disconnect the electrical connector.
3	Outside Power Mirror
