Engine Shield Replacement

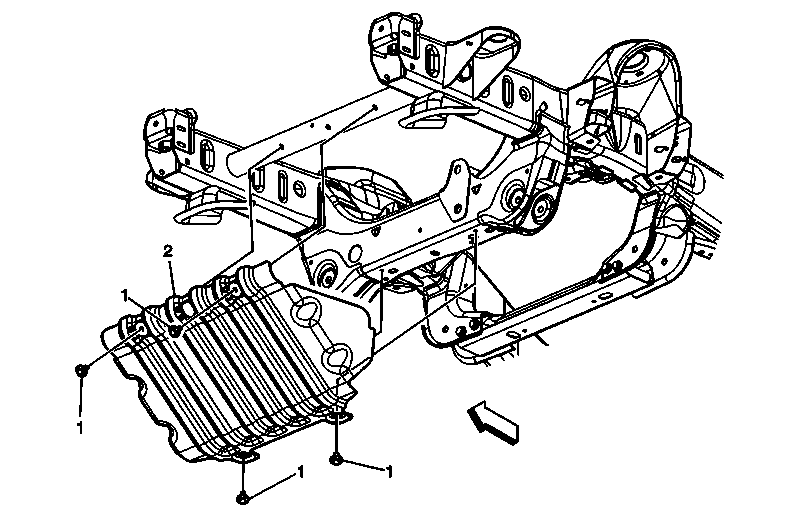

Fig 1: View Of Engine Shield & Bolts
GM1702266Courtesy of GENERAL MOTORS CORP.
Engine Shield Replacement

Callout Component Name
Preliminary Procedure:
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Bolt, Engine Shield (Qty: 4).
NOTE: Refer to Fastener Notice .

Tighten:  Tighten then bolts to 20 N.m (15 lb ft).
2 Shield, Engine
