Door Control Module Schematics

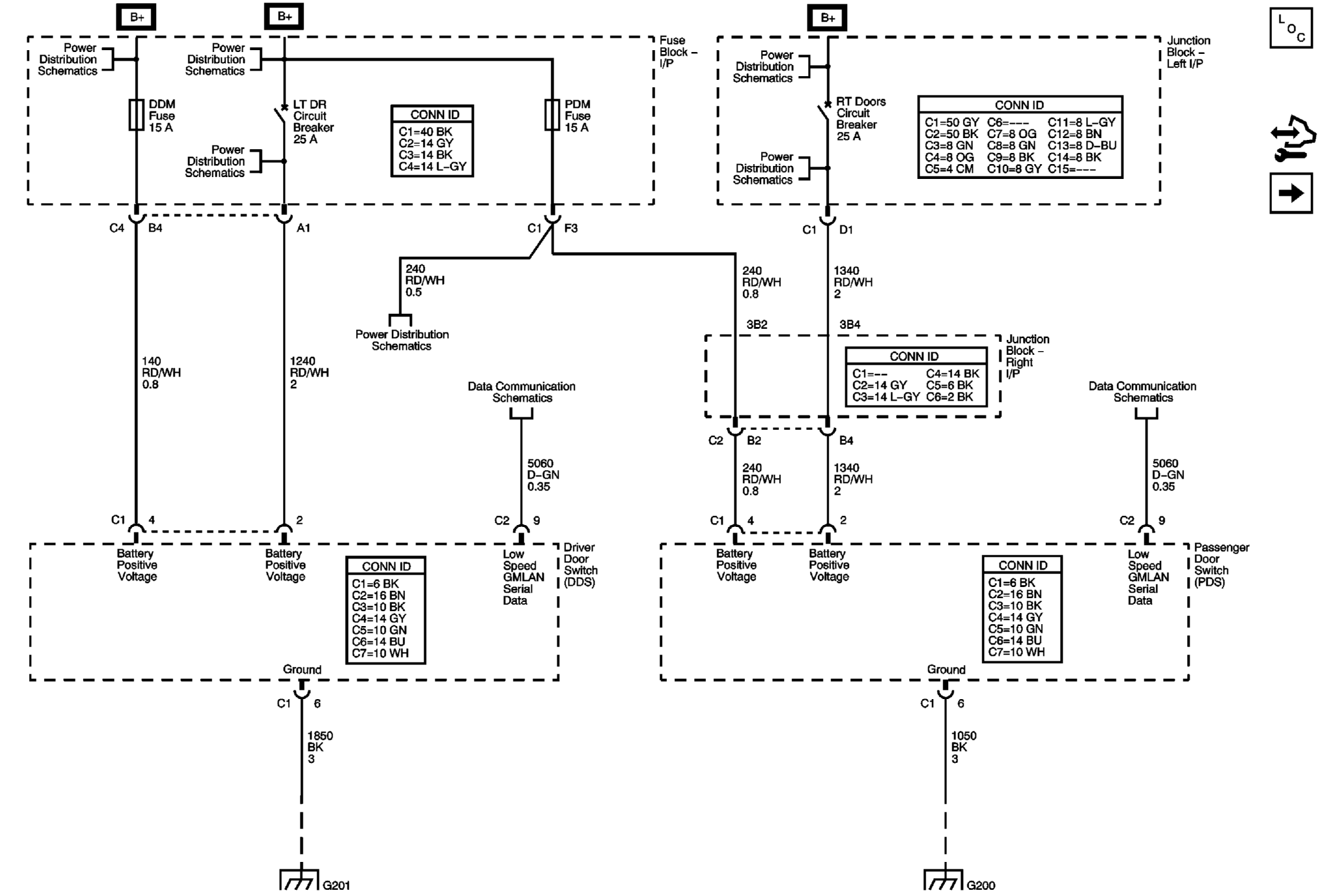

Fig 1: Module Power, Ground, and Serial Data Schematic
GM1740499Courtesy of GENERAL MOTORS CORP.

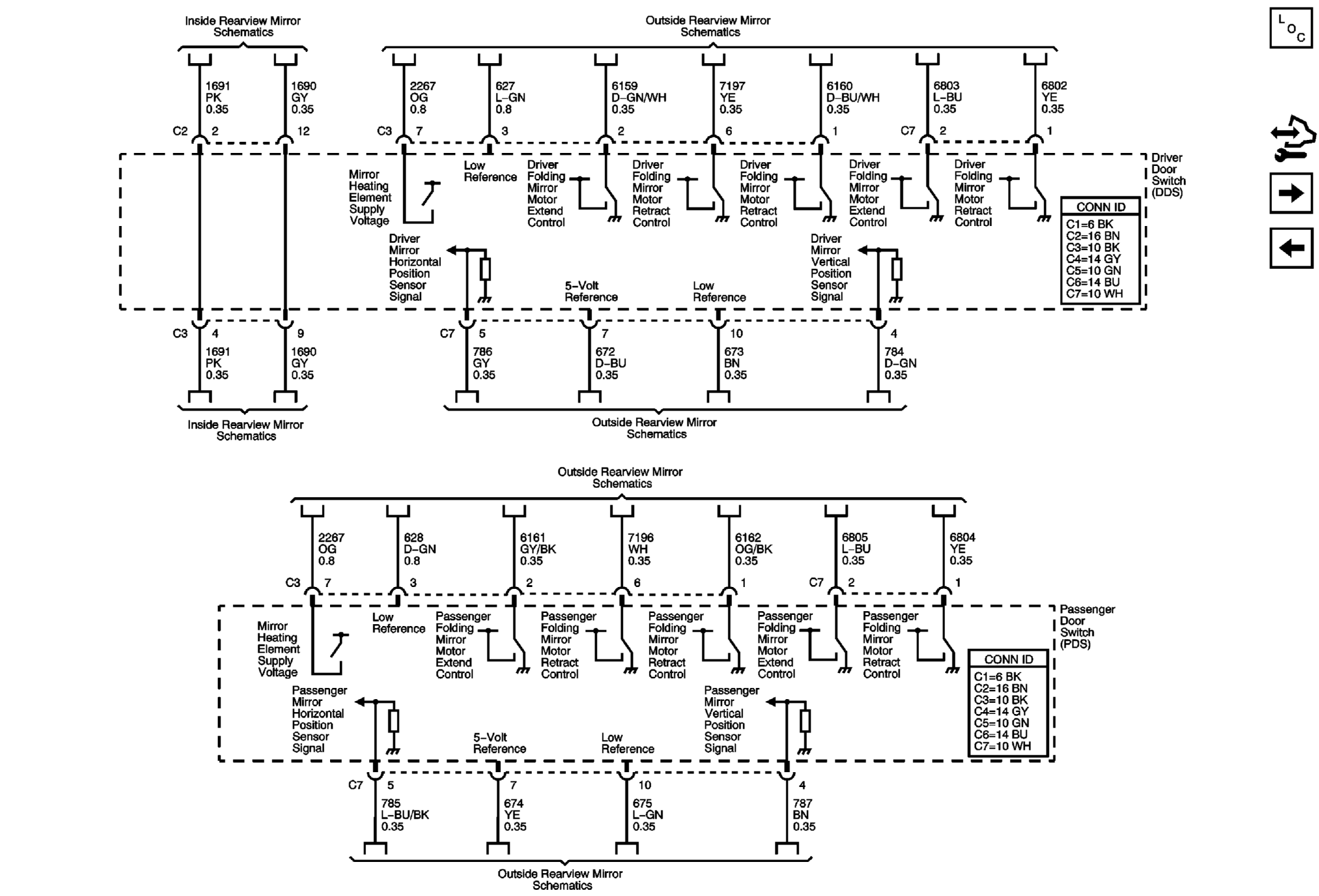

Fig 2: Outside Rearview Mirror References Schematic
GM1740501Courtesy of GENERAL MOTORS CORP.

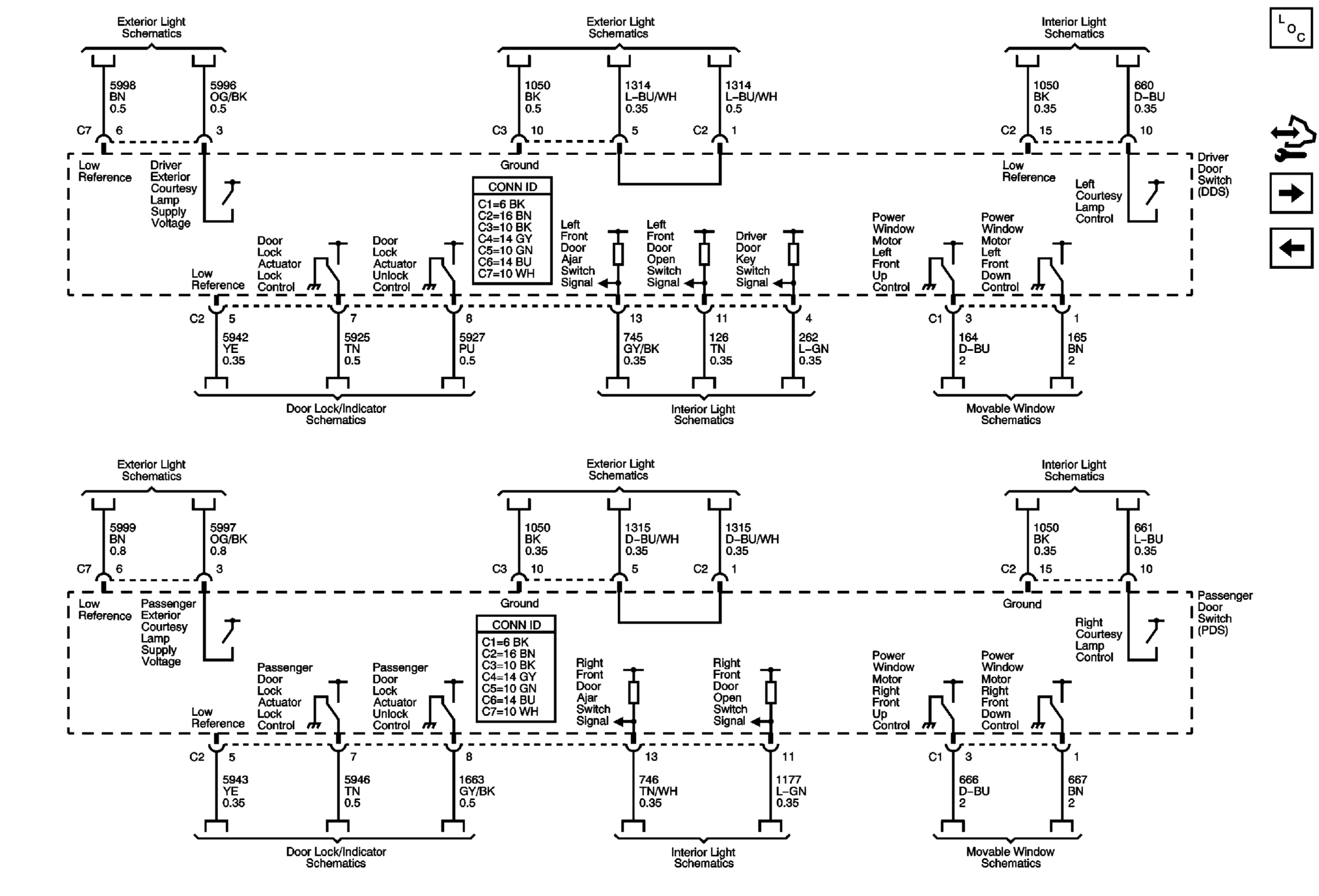

Fig 3: Door Lock, Window, and Lighting System References Schematic
GM1740504Courtesy of GENERAL MOTORS CORP.

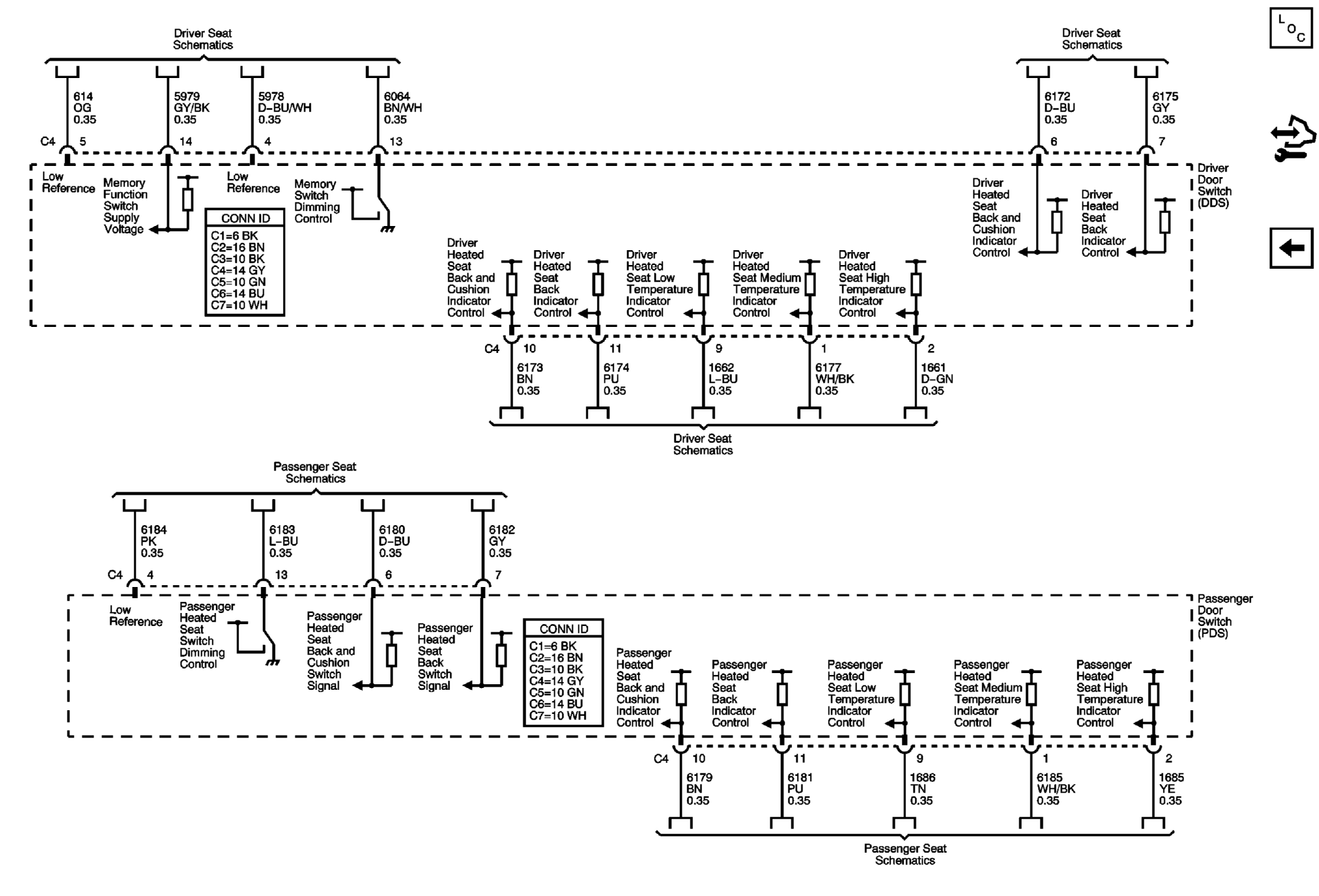

Fig 4: Heated Seat References Schematic
GM1740507Courtesy of GENERAL MOTORS CORP.
