Liftgate Release Switch Replacement

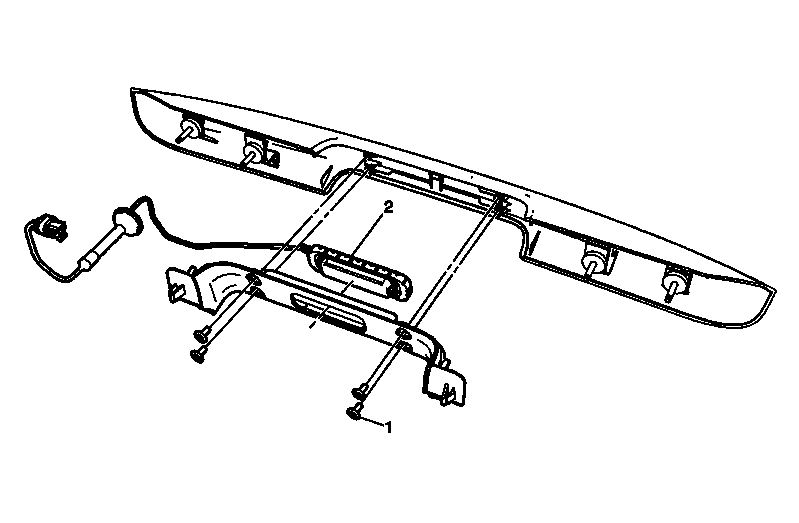

Fig 1: View Of Liftgate Release Switch & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the liftgate handle. Refer to Handle Replacement - Liftgate .
1	Liftgate Release Switch Screws (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Liftgate Release Switch Tip: Disconnect the electrical connector.
