Adjustable Pedal Schematics

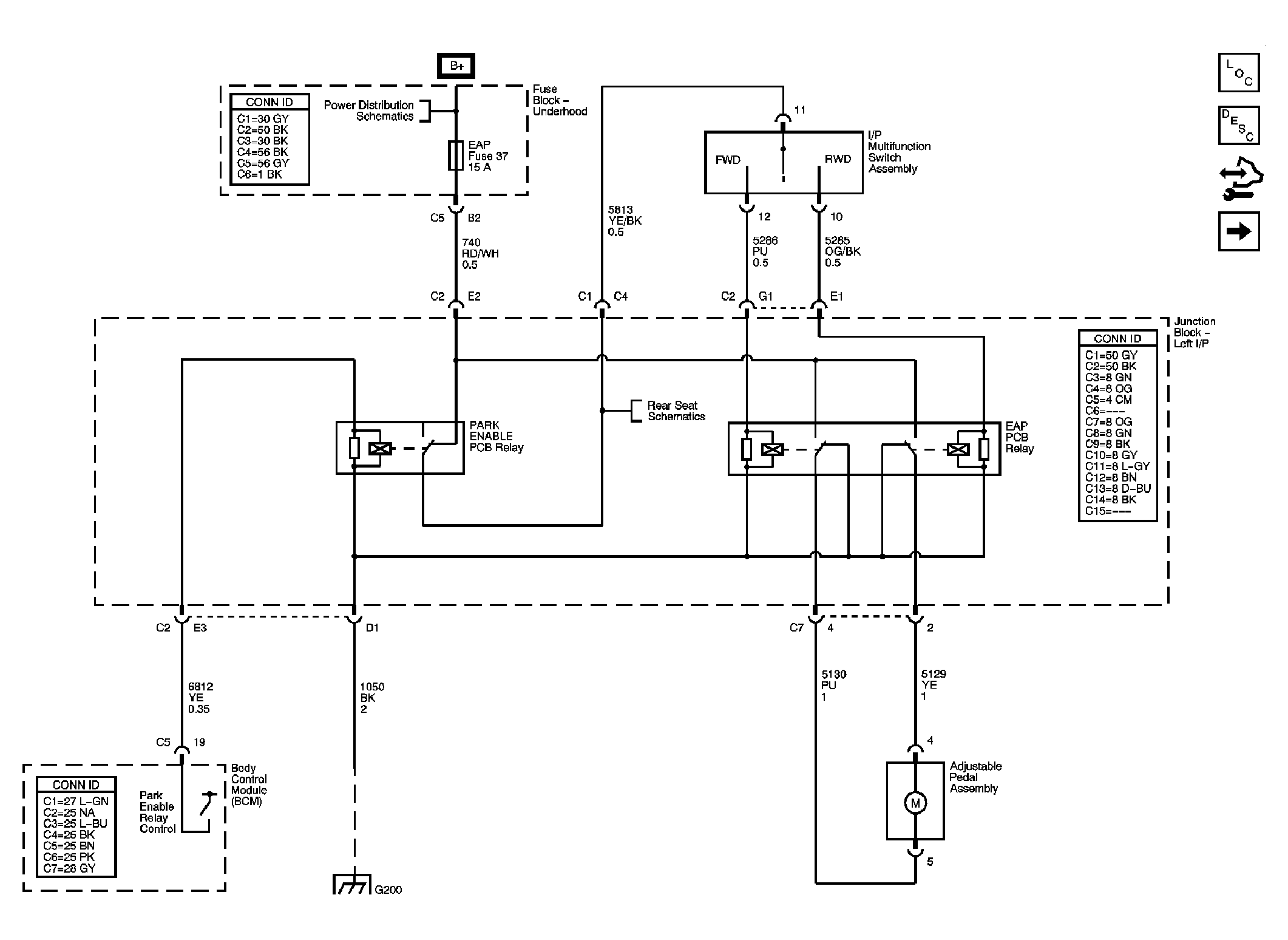

Fig 1: Except AN3 Schematic

GM1701912

Courtesy of GENERAL MOTORS CORP.

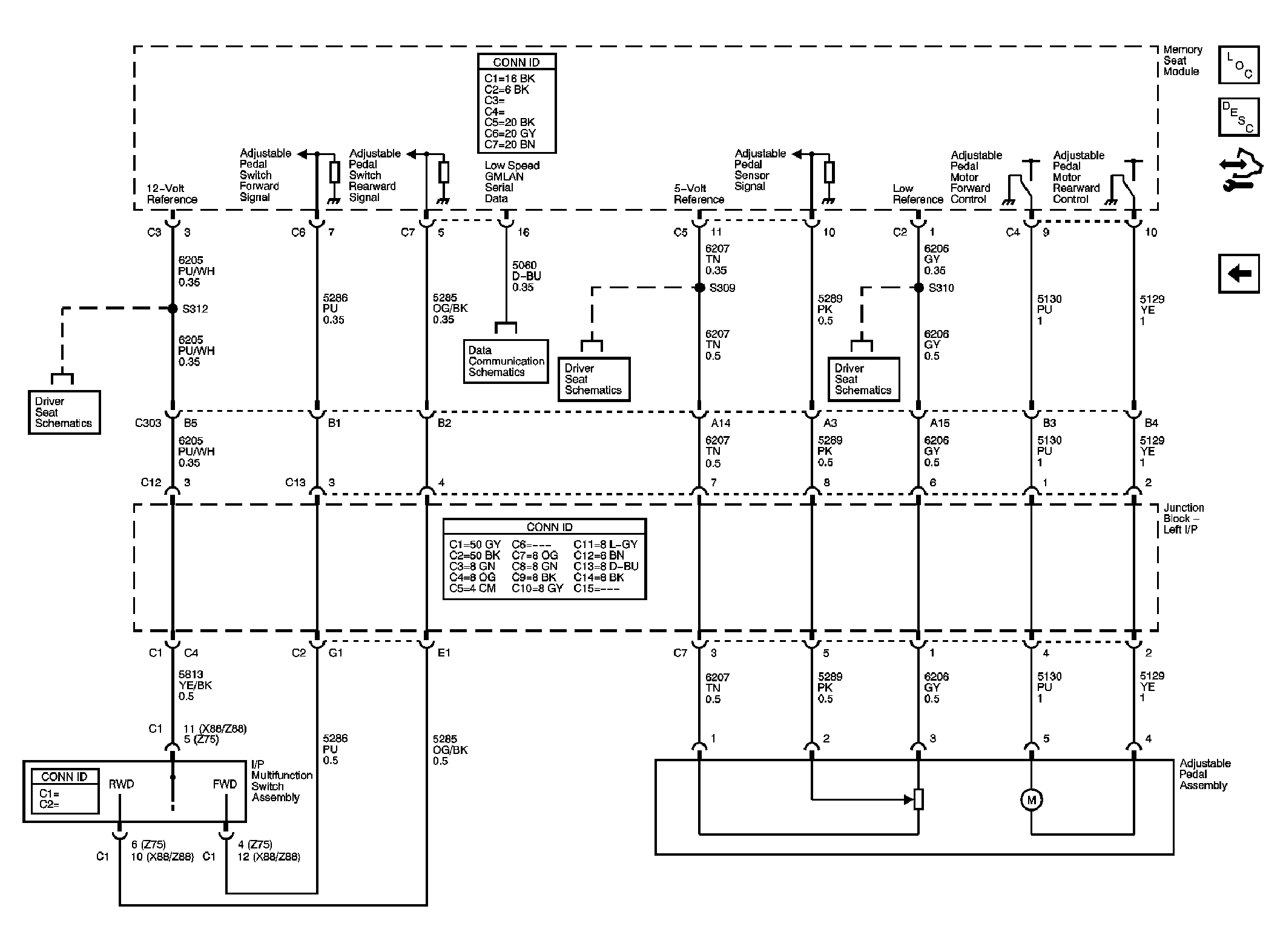

Fig 2: AN3 Schematic

GM1701913

Courtesy of GENERAL MOTORS CORP.
