Adjustable Pedal Component Views

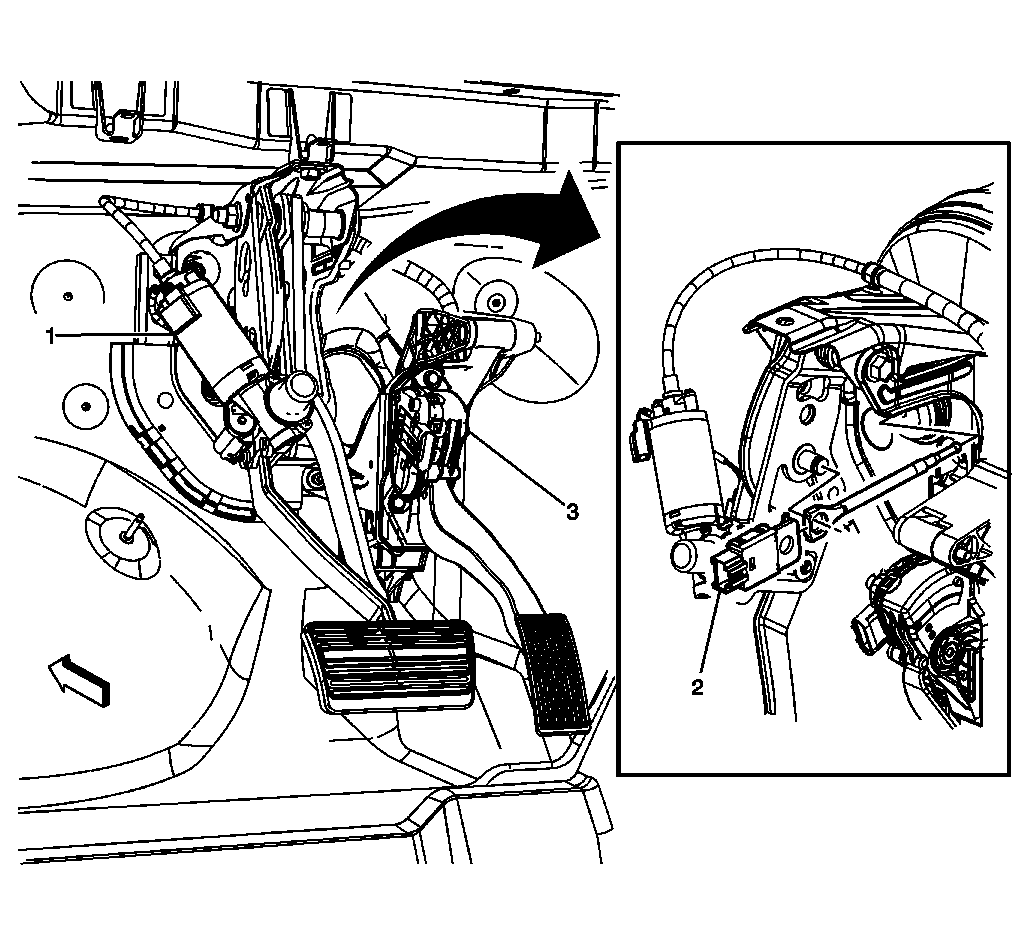

Fig 1: Pedal Assemblies
GM1739407Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Adjustable Pedal Assembly (JF4)
2 Accelerator Pedal Position (APP) Sensor
