Installation Procedure

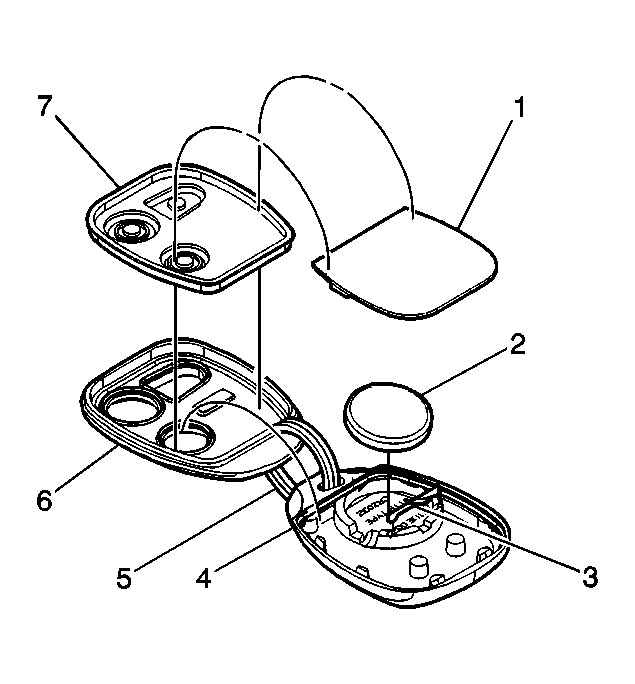

    Fig 1: View of Transmitter Battery & Case
    GM277192Courtesy of GENERAL MOTORS CORP.
  1. Install the battery (2) with the positive side down into the transmitter.
  2. Ensure the seal (7) is in position. Align the two halves of the case (6, 4), and snap the two halves together.
  3. Verify the operation of the transmitter.
