Installation Procedure

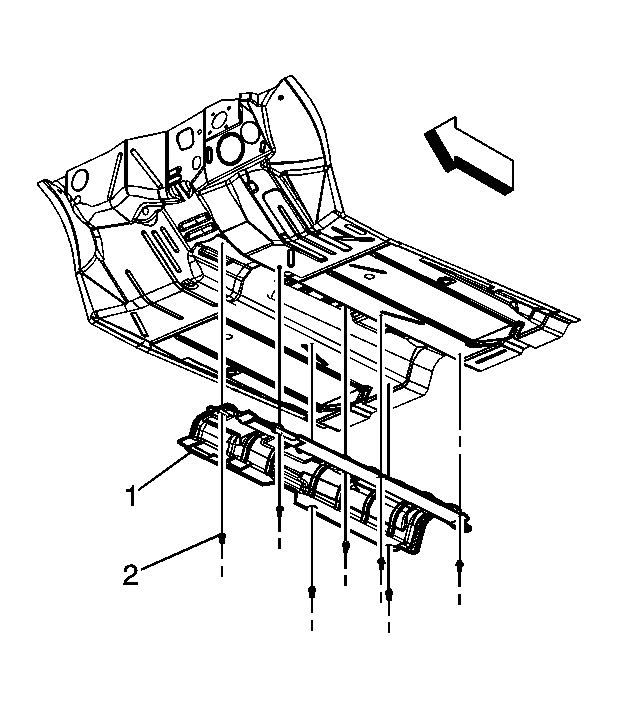

Fig 1: View Of Catalytic Converter Heat Shield
GM1670478Courtesy of GENERAL MOTORS CORP.
  1. Position the heat shield to the floor panel.
  2. Using a rivet gun, install the rivets (2), except for this location (1), this rivet will be installed with the oxygen sensor heat shield.
  3. Install the exhaust system. Refer to Exhaust System Replacement .
