Inflatable Restraint I/P Module Connector End View C2
Inflatable Restraint I/P Module C2 Connector & Terminal Parts Information
Connector Part Information
|
Terminal Part Information
|

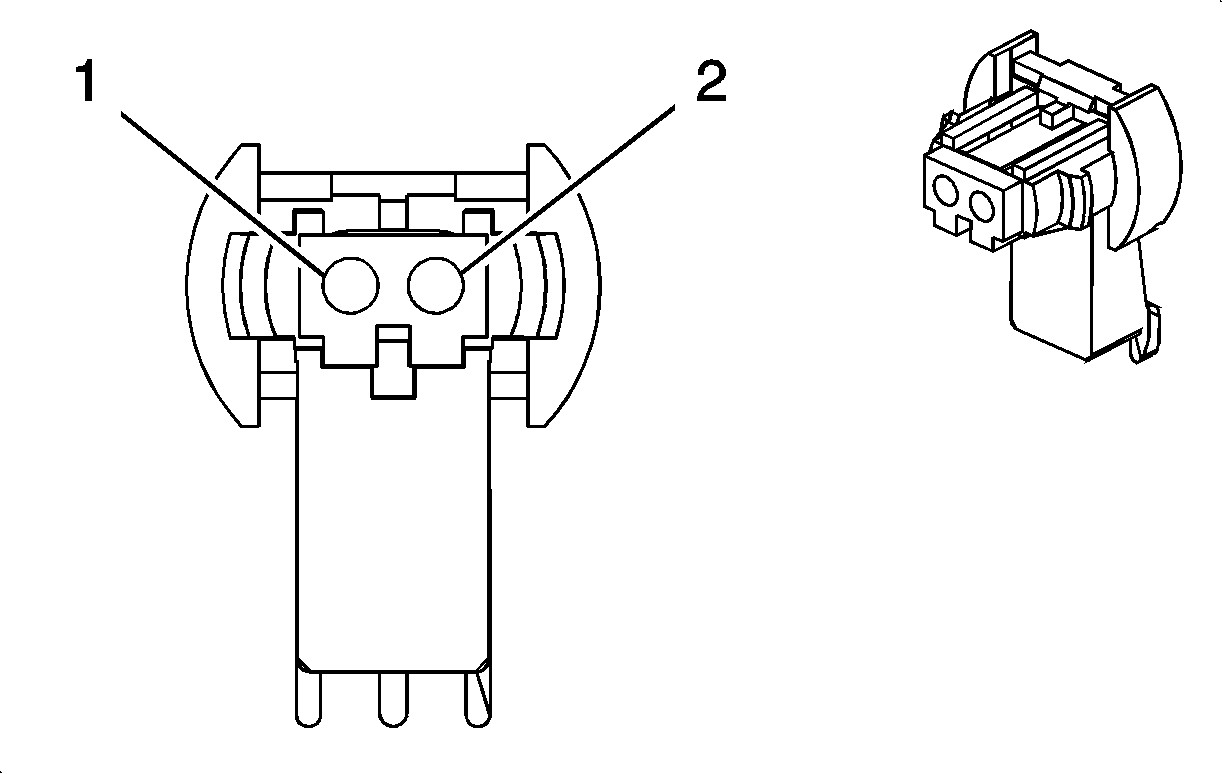

Inflatable Restraint I/P Module C2 Connector End View
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | PU | - | I/P Module - Stage 1 - High Control |
| 2 | GY | - | I/P Module - Stage 1 - Low Control |
