Driver Information Display Switch Replacement

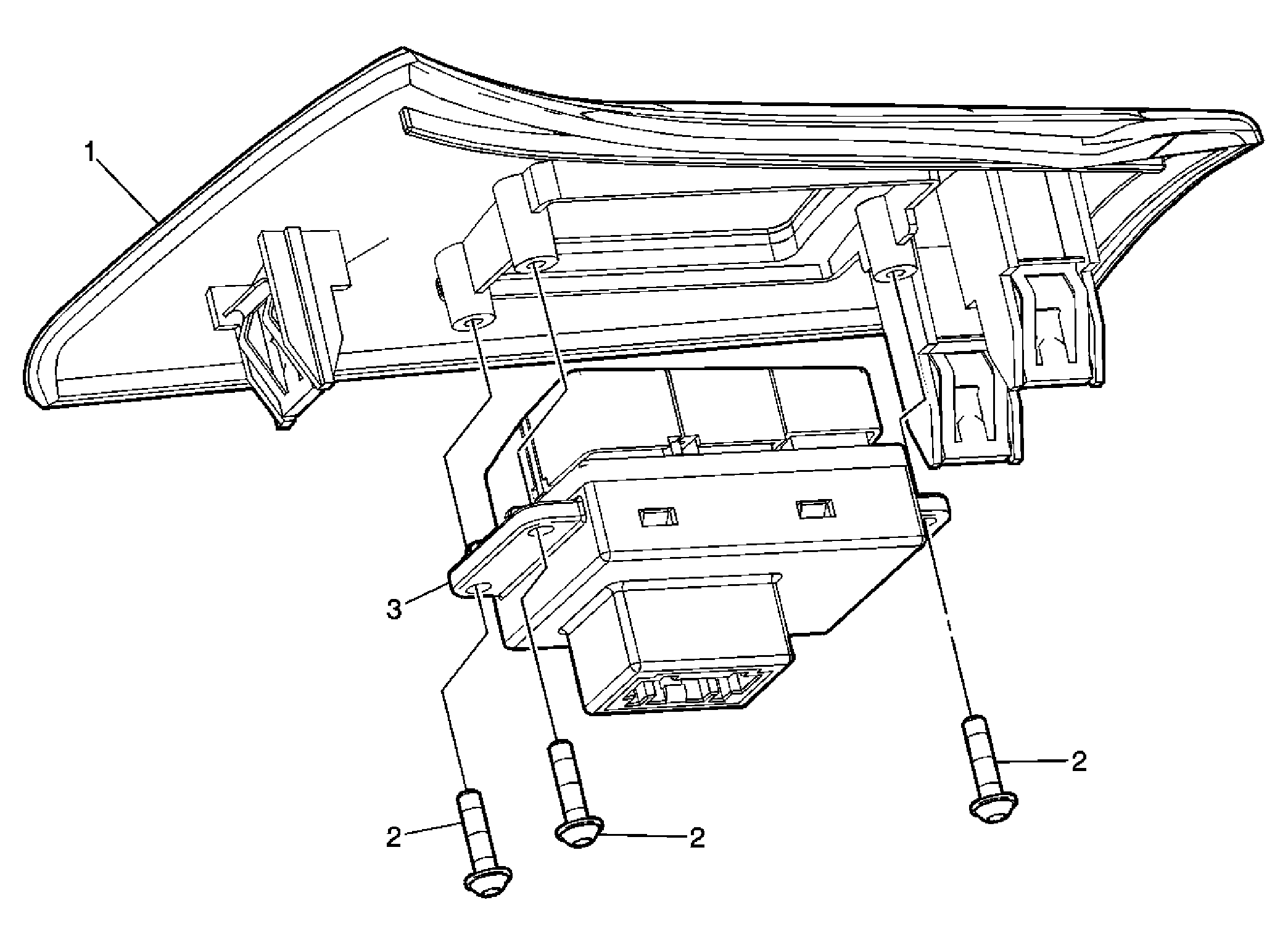

Fig 1: Driver Information Center Switch

Courtesy of GENERAL MOTORS CORP.

Driver Information Display Switch Replacement

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications:  Refer to CELL LINK  .
1	Plate Assembly, Instrument Panel Trim Refer to Instrument Panel Accessory Trim Plate Replacement - Left Side
2	Screw, Driver Information Switch (Qty: 3) Tighten:  2 N.m (18 lb in)
3	Switch Assembly, Driver Information
