Clock Replacement

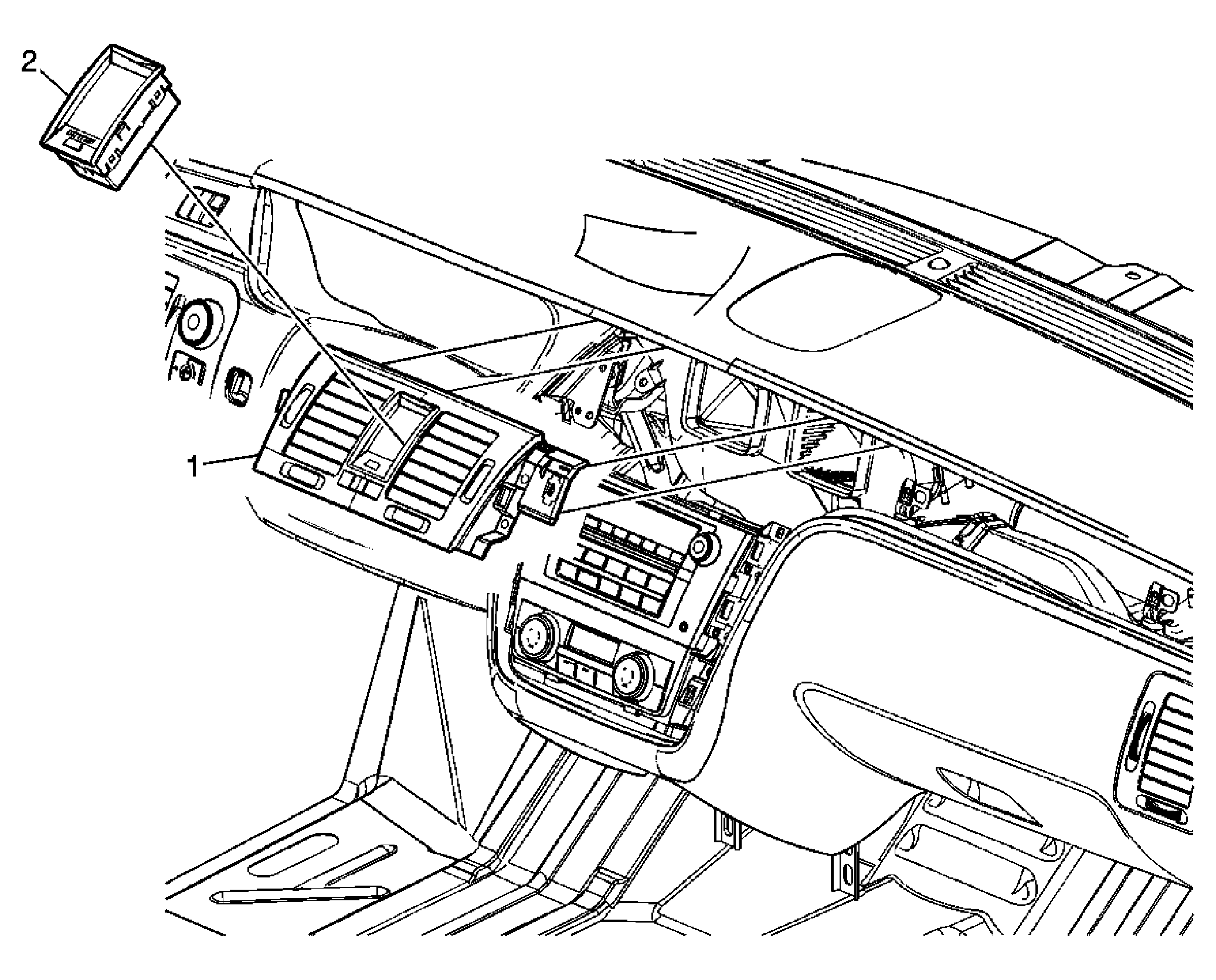

Fig 1: View of Clock Assembly, Instrument Panel
GM1684873Courtesy of GENERAL MOTORS CORP.
Clock Replacement

Callout Component Name
1 Center air outlet assembly. Refer to Air Outlet Replacement - Instrument Panel - Center .
2 Instrument Panel Clock Assembly
Procedure
Release the tabs securing the clock to the air outlet assembly.
