Moveable Window Schematics

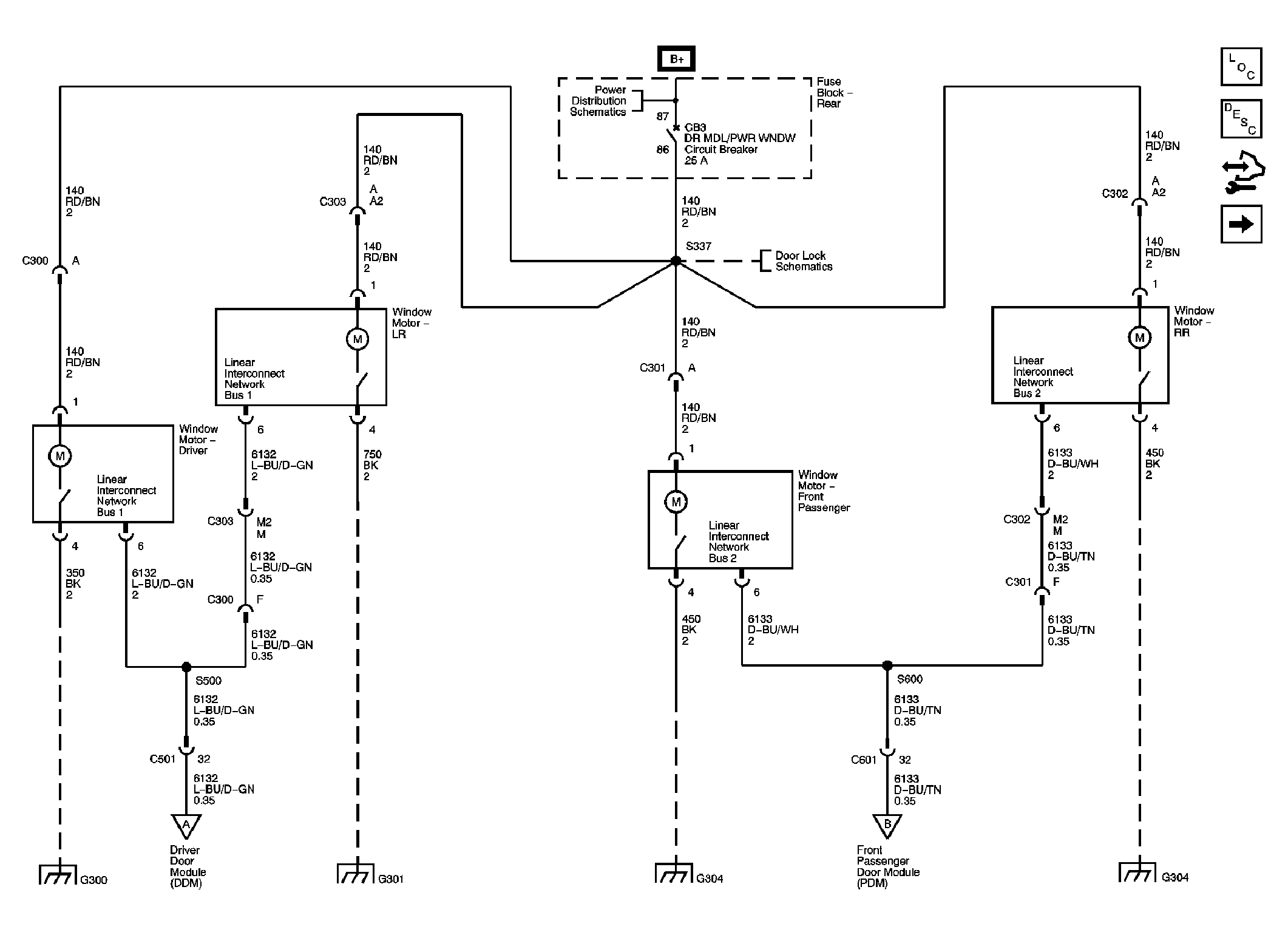

Fig 1: Window Motors Schematics
GM1758945Courtesy of GENERAL MOTORS CORP.

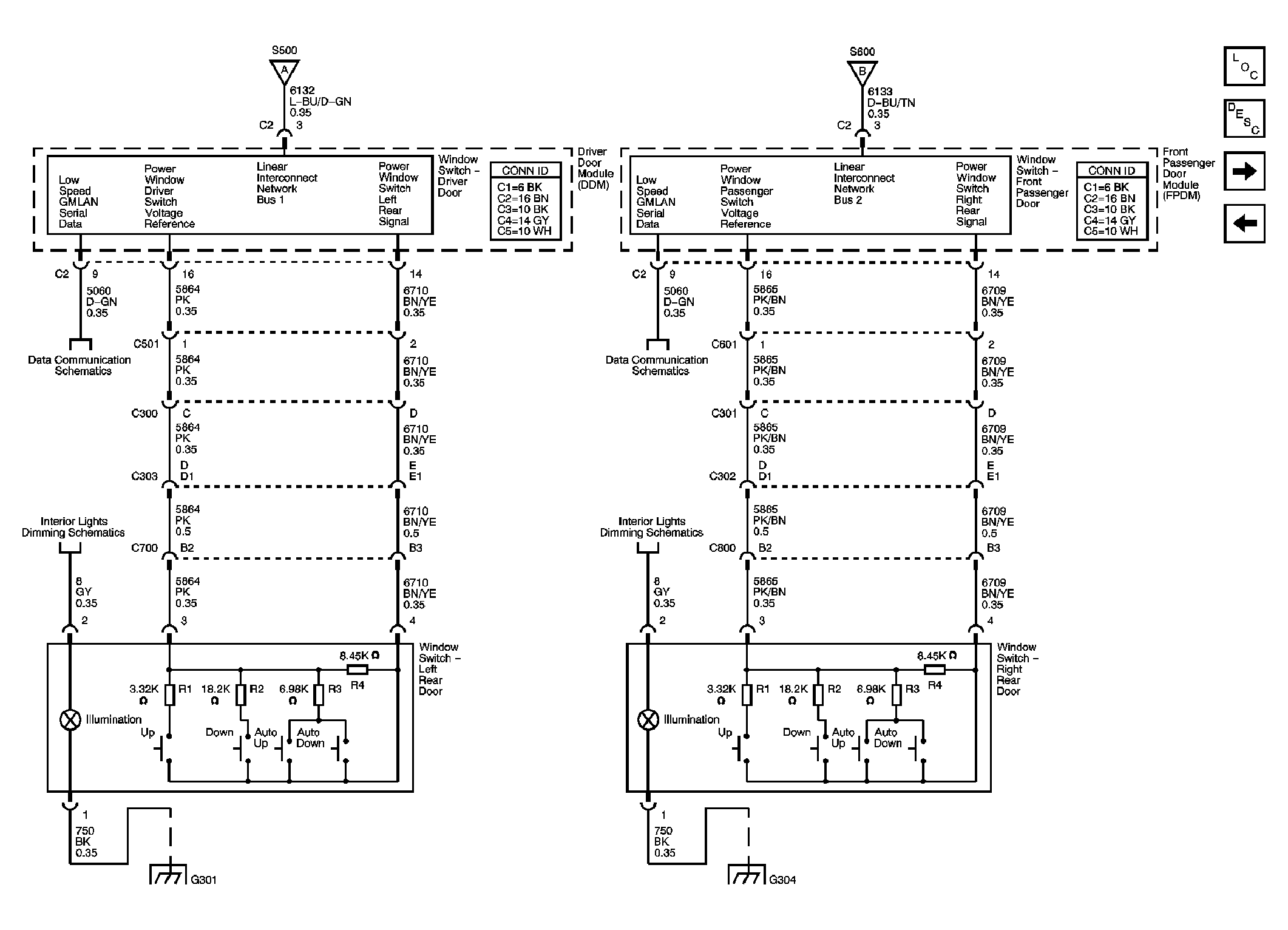

Fig 2: Window Switches Schematics
GM1758947Courtesy of GENERAL MOTORS CORP.

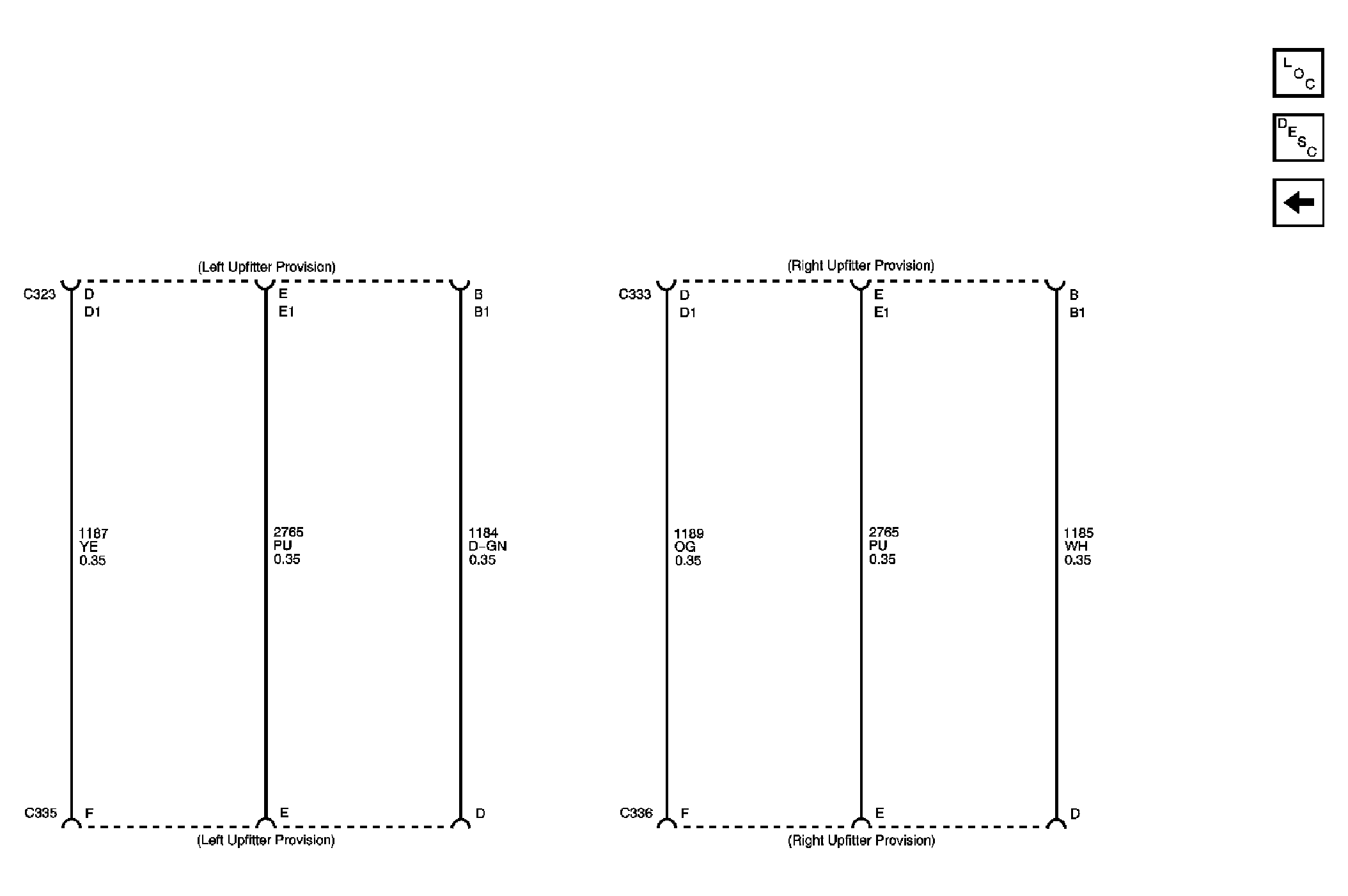

Fig 3: Upfitter Window Provisions - V4U Schematics
GM1758955Courtesy of GENERAL MOTORS CORP.
