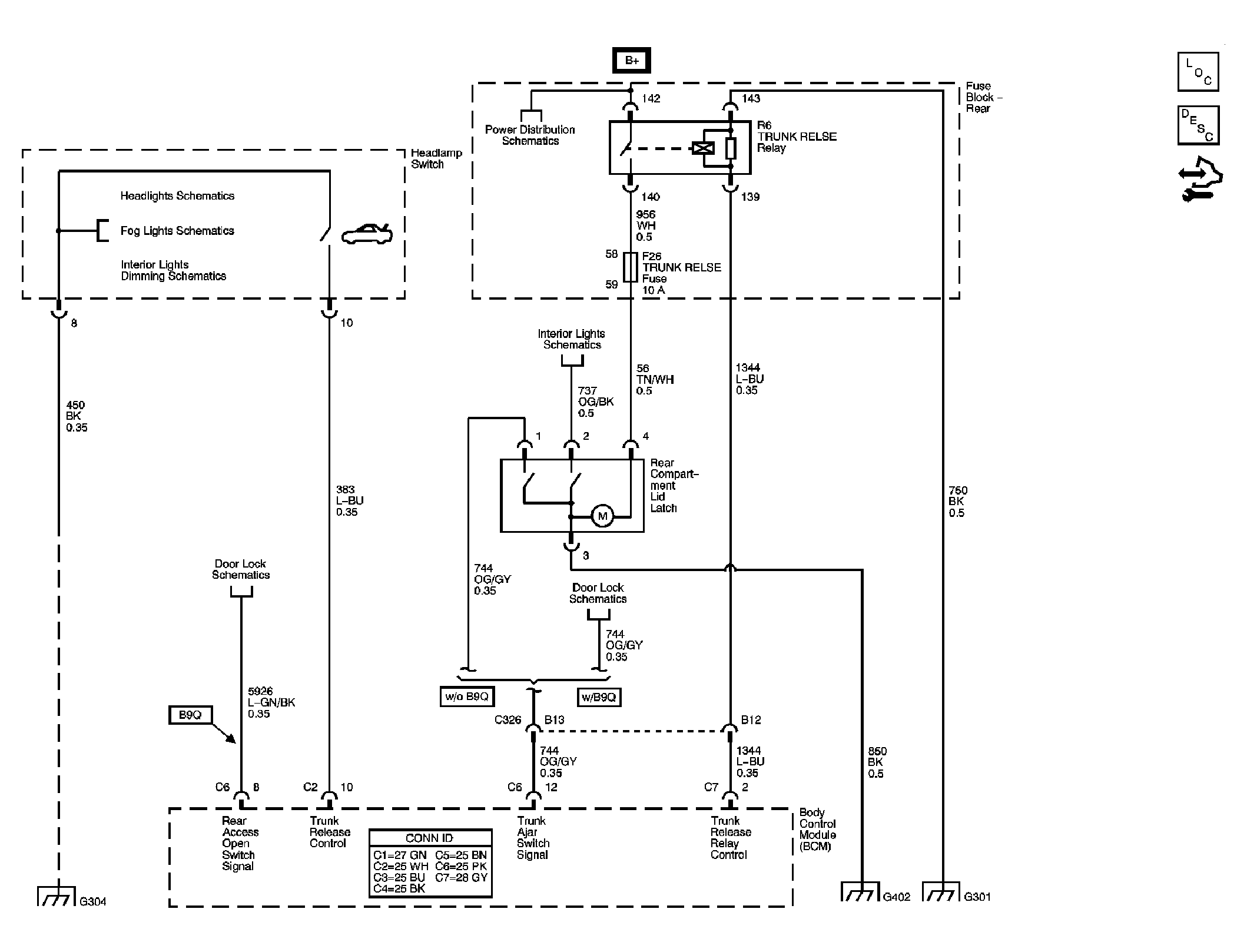

Home >> Cadillac >> 2007 >> DTS 4.6 9 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Door Lock System And Release Systems >> Schematic and Routing Diagrams >> Release Systems Schematics
