Inflatable Restraint Vehicle Rollover Sensor Replacement

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

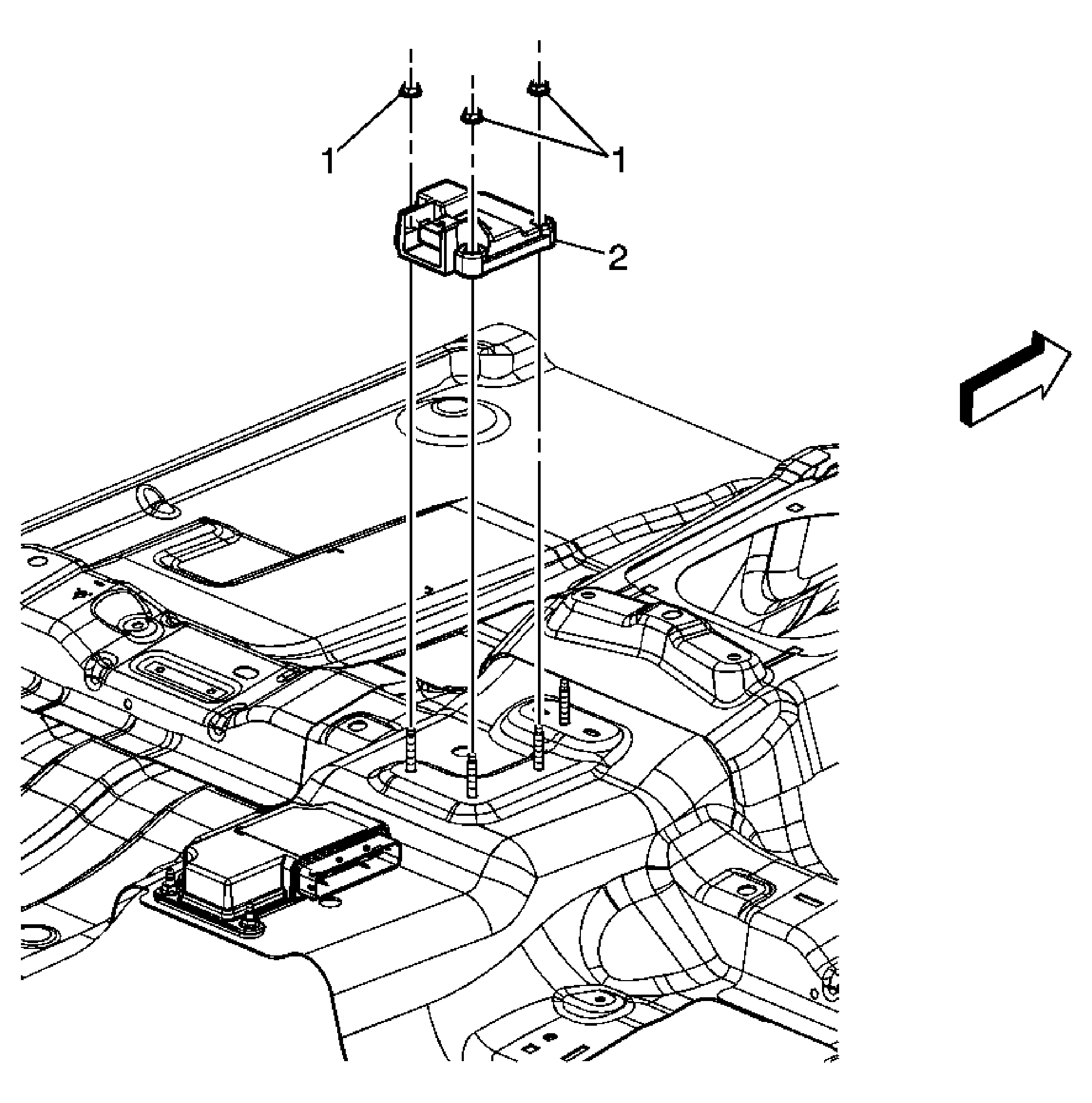

Fig 1: Identifying Inflatable Restraint Vehicle Rollover Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: When performing service on or near the SIR components or the SIR wiring, the SIR system must be disabled. Refer to SIR Disabling and Enabling. Failure to observe the correct procedure could cause deployment of the SIR components, personal injury, or unnecessary SIR system repairs. NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Disable the SIR. Refer to SIR Disabling and Enabling . Remove the center console. Refer to Front Floor Console Replacement (Left Hand Drive) or Front Floor Console Replacement (Right Hand Drive) .
1	Inflatable Restraint Vehicle Rollover Sensor Nut (Qty: 3) Tighten: 10 N.m (89 lb in)
2	Inflatable Restraint Vehicle Rollover Sensor Assembly

Callout

Component Name

CAUTION: When performing service on or near the SIR components or the SIR wiring, the SIR system must be disabled. Refer to SIR Disabling and Enabling. Failure to observe the correct procedure could cause deployment of the SIR components, personal injury, or unnecessary SIR system repairs.

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Disable the SIR. Refer to SIR Disabling and Enabling .
Remove the center console. Refer to Front Floor Console Replacement (Left Hand Drive) or Front Floor Console Replacement (Right Hand Drive) .

Inflatable Restraint Vehicle Rollover Sensor Nut (Qty: 3)

Tighten: 10 N.m (89 lb in)

Inflatable Restraint Vehicle Rollover Sensor Assembly
