SIR Component Views (RHD)
WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Callouts For Fig 1
| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Front End Sensor - Left |
| 2 | Inflatable Restraint Front End Sensor - Right |

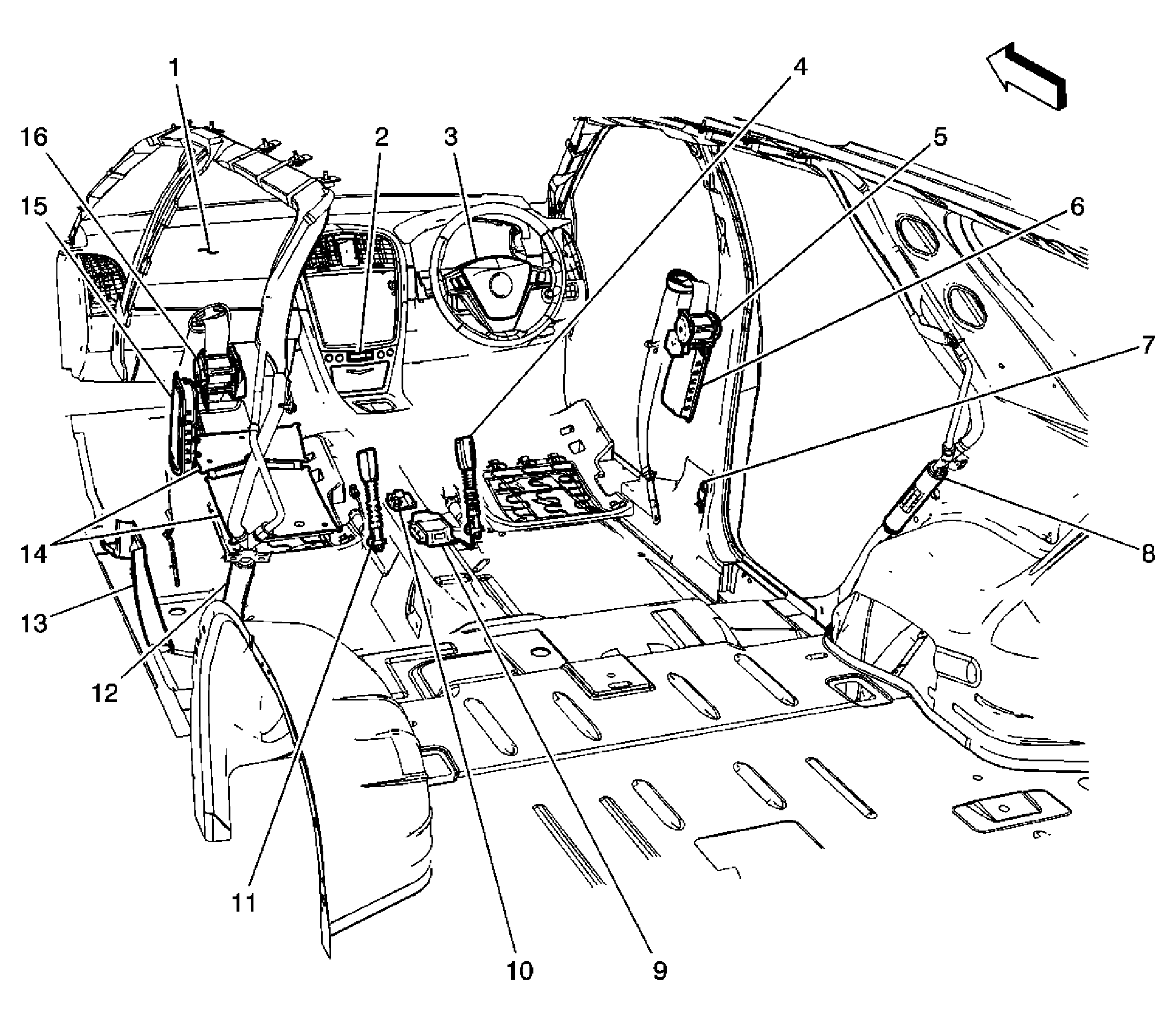

Callouts For Fig 2
| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint I/P Module |
| 2 | Inflatable Restraint I/P Module Indicator (AQS) |
| 3 | Inflatable Restraint Steering Wheel Module |
| 4 | Seat Belt Switch - Right |
| 5 | Seat Belt Pretensioner - Right |
| 6 | Inflatable Restraint Side Impact Module - Right |
| 7 | Inflatable Restraint Side Impact Sensing Module (SISM) - Right |
| 8 | Inflatable Restraint Roof Rail Module - Right (AY0) |
| 9 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 10 | Rollover Sensor |
| 11 | Seat Belt Switch - Left |
| 12 | Inflatable Restraint Roof Rail Module - Left (AY0) |
| 13 | Inflatable Restraint Side Impact Sensing Module (SISM) - Left |
| 14 | Inflatable Restraint Front Passenger Presence System (PPS) Sensor |
| 15 | Inflatable Restraint Side Impact Module - Left |
| 16 | Seat Belt Pretensioner - Left |
Callouts For Fig 3
| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Steering Wheel Module/Horn Switch |
| 2 | Steering Wheel Controls - Left |
| 3 | Steering Wheel Controls - Right |
| 4 | Steering Wheel Controls - Left Connector |
| 5 | C208 |
| 6 | Steering Wheel |
| 7 | Steering Column |
| 8 | Inflatable Restraint Steering Wheel Module Coil |
| 9 | Inflatable Restraint Steering Wheel Module Connector C1 |
| 10 | Inflatable Restraint Steering Wheel Module Connector C2 |
| 11 | C208 |
| 12 | Steering Wheel Controls - Right Connector |
Callouts For Fig 4
| Callout | Component Name |
|---|---|
| 1 | Inner Side Frame-RH |
| 2 | Console Arm Rest |
| 3 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 4 | Rollover Sensor |
