SIR Component Views (LHD)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

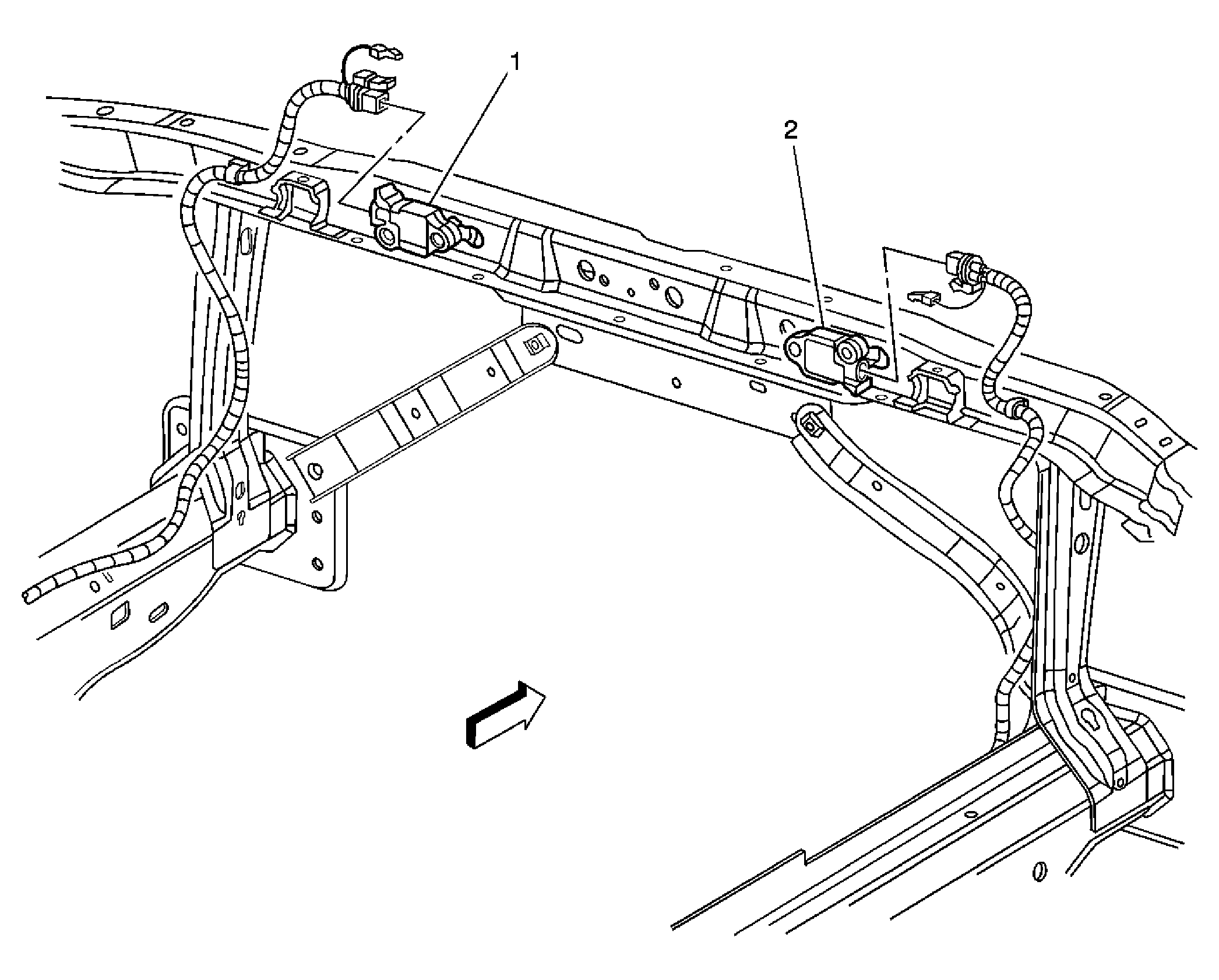

Fig 1: Identifying Inflatable Restraint Front End Sensors - Left & Right (Front Of Vehicle)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 1

Callout	Component Name
1	Inflatable Restraint Front End Sensor - Left
2	Inflatable Restraint Front End Sensor - Right

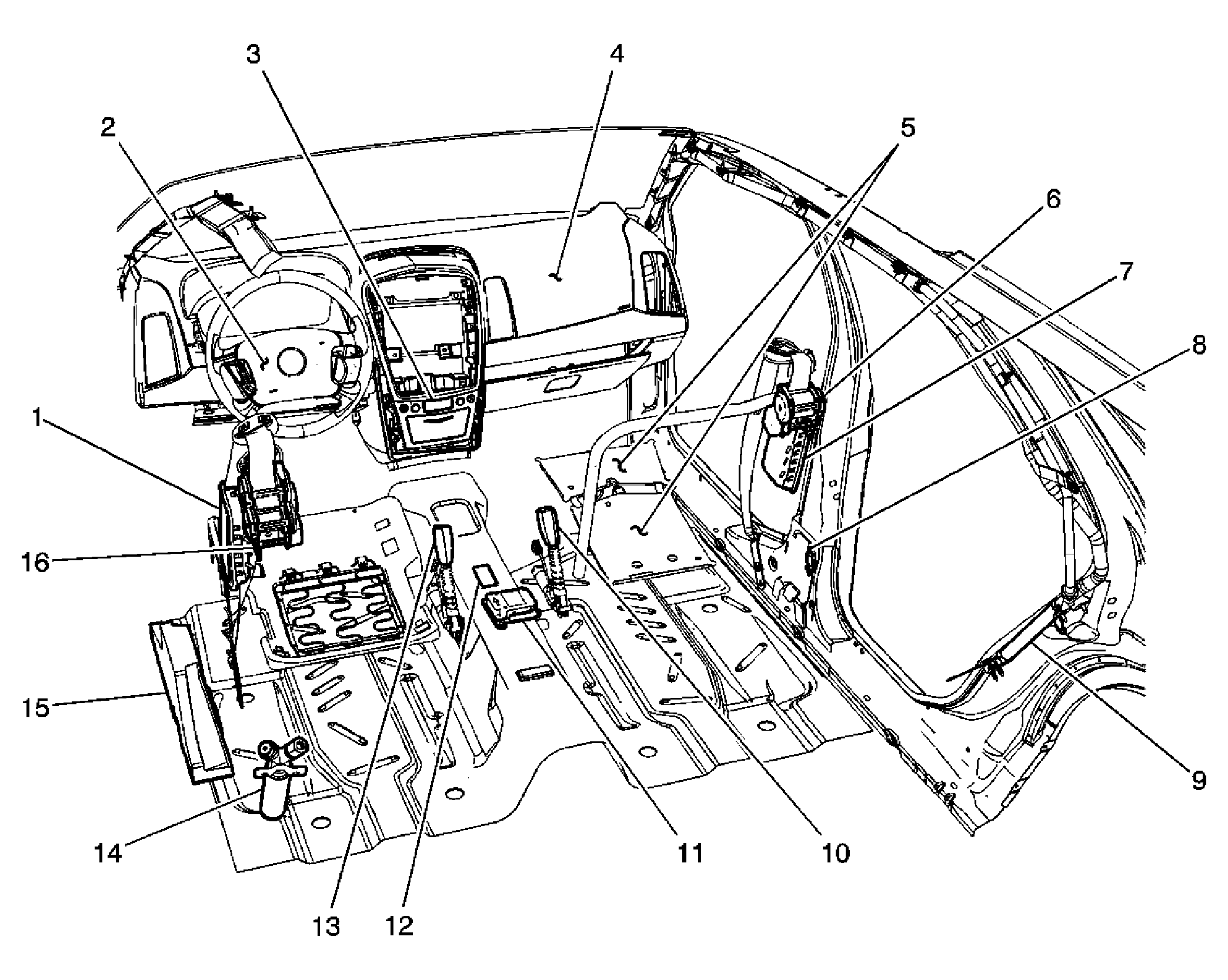

Fig 2: Identifying SIR Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 2

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Left
2	Inflatable Restraint Steering Wheel Module
3	Inflatable Restraint I/P Module Indicator
4	Inflatable Restraint I/P Module
5	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
6	Seat Belt Retractor - Right
7	Inflatable Restraint Side Impact Module - Right
8	Inflatable Restraint Side Impact Sensing Module (SISM) - Right
9	Inflatable Restraint Roof Rail Module - Right (AY0)
10	Seat Belt Switch - Right
11	Inflatable Restraint Sensing and Diagnostic Module (SDM)
12	Rollover Sensor
13	Seat Belt Switch - Left
14	Inflatable Restraint Roof Rail Module - Left (AY0)
15	Inflatable Restraint Side Impact Sensing Module (SISM) - Left
16	Seat Belt Retractor - Left

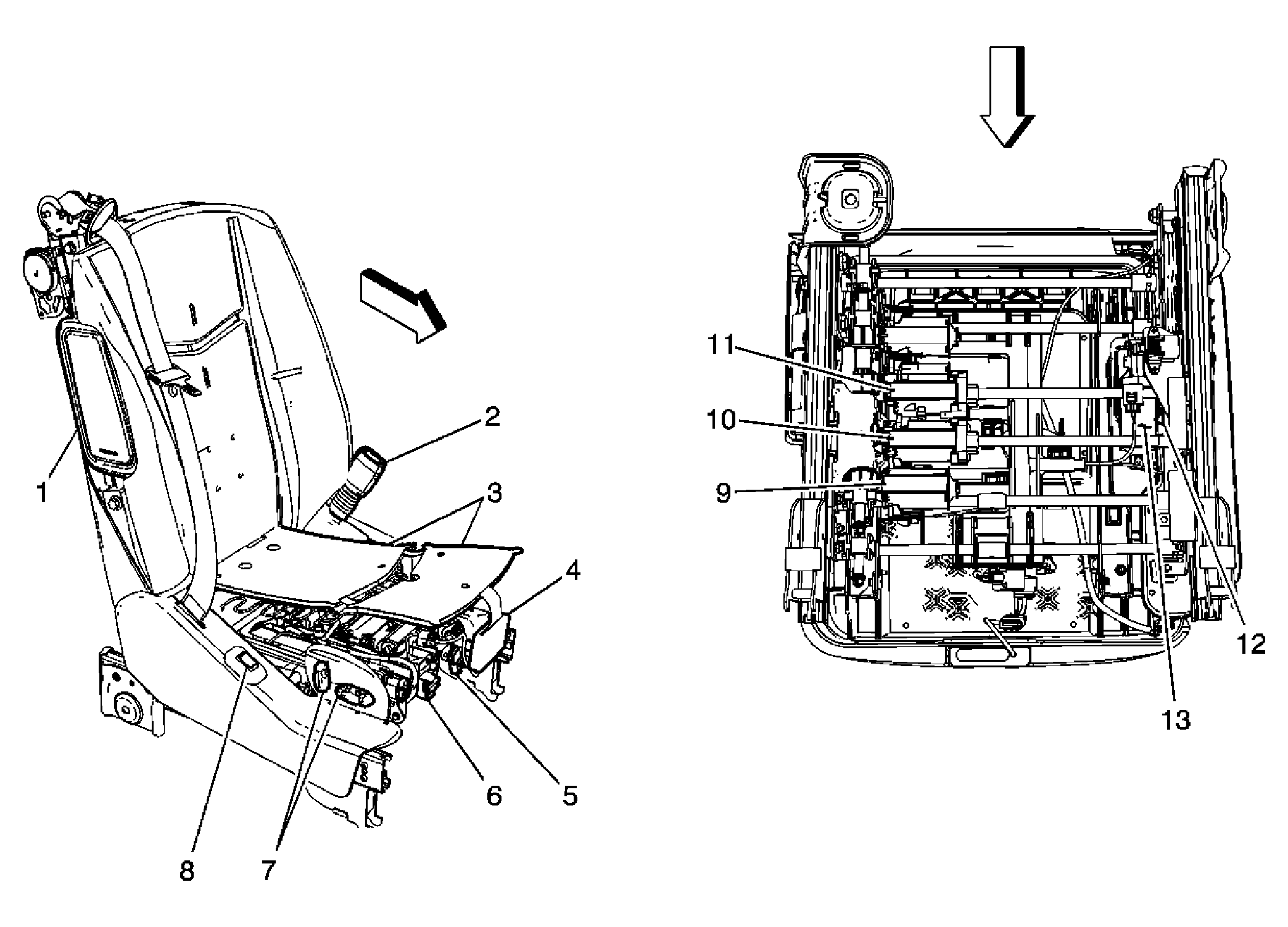

Fig 3: Identifying Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 3

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Right
2	Seatbelt Switch-Right
3	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
4	Inflatable Restraint Front Passenger Presence System (PPS) Module
5	C306
6	C307
7	Seat Adjuster Switches
8	Seat Lumbar Switch
9	Seat Rear Vertical Motor
10	Seat Horizontal Motor
11	Seat Front Vertical Motor
12	Seat Position Switch
13	Seat Recline Motor

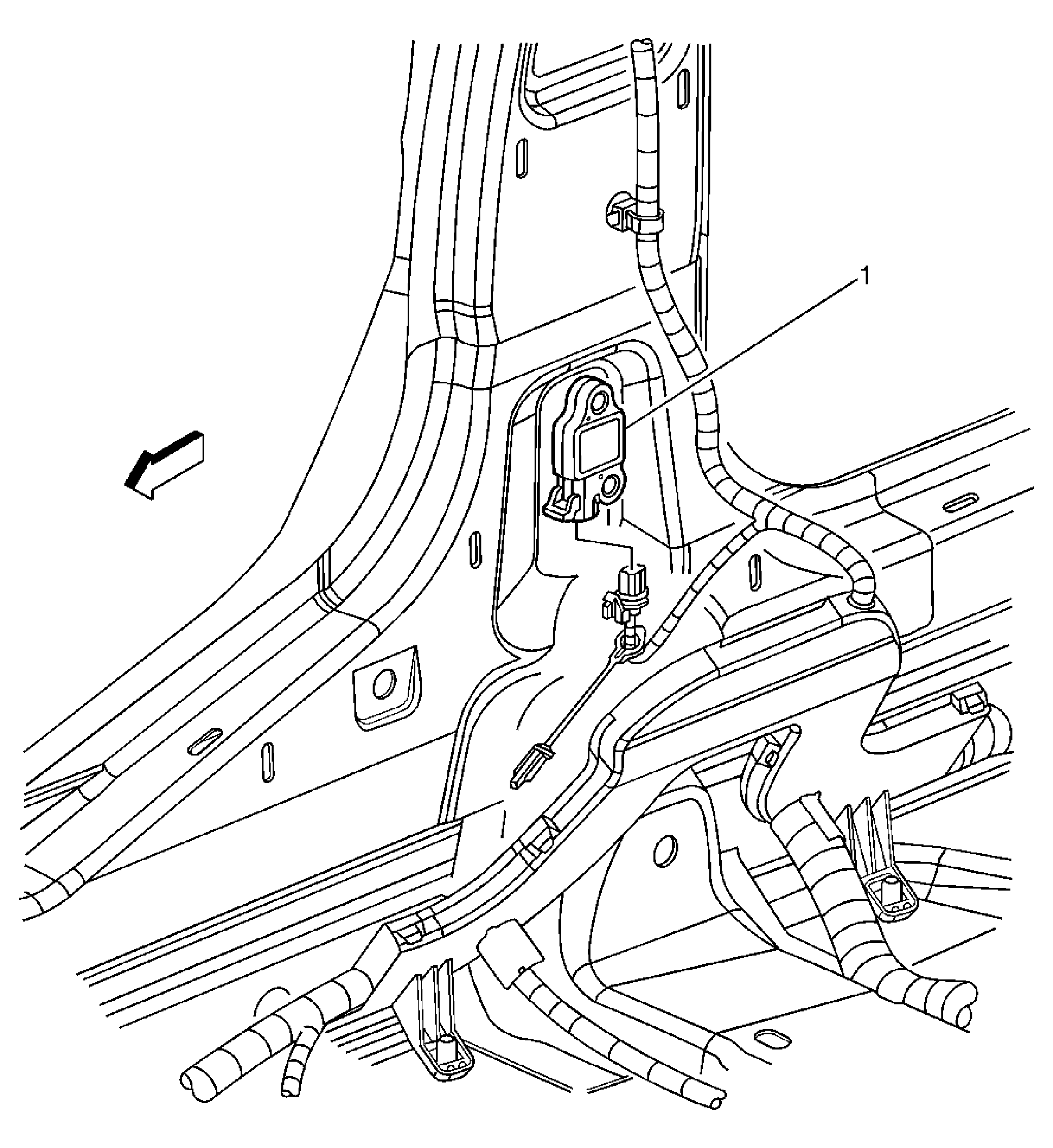

Fig 4: Identifying Right Side Impact Sensing Module (SISM) (Right Lower B-Pillar)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 4

Callout	Component Name
1	Inflatable Restraint Side Impact Sensing Module (SISM) - Right, Left Similar

Fig 5: Identifying Steering Wheel Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 5

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module/Horn Switch
2	Steering Wheel Controls - Left
3	Steering Wheel Controls - Right
4	Steering Wheel Controls - Left Connector
5	C208
6	Steering Wheel
7	Steering Column
8	Inflatable Restraint Steering Wheel Module Coil
9	Inflatable Restraint Steering Wheel Module Connector C1
10	Inflatable Restraint Steering Wheel Module Connector C2
11	C208
12	Steering Wheel Controls - Right Connector

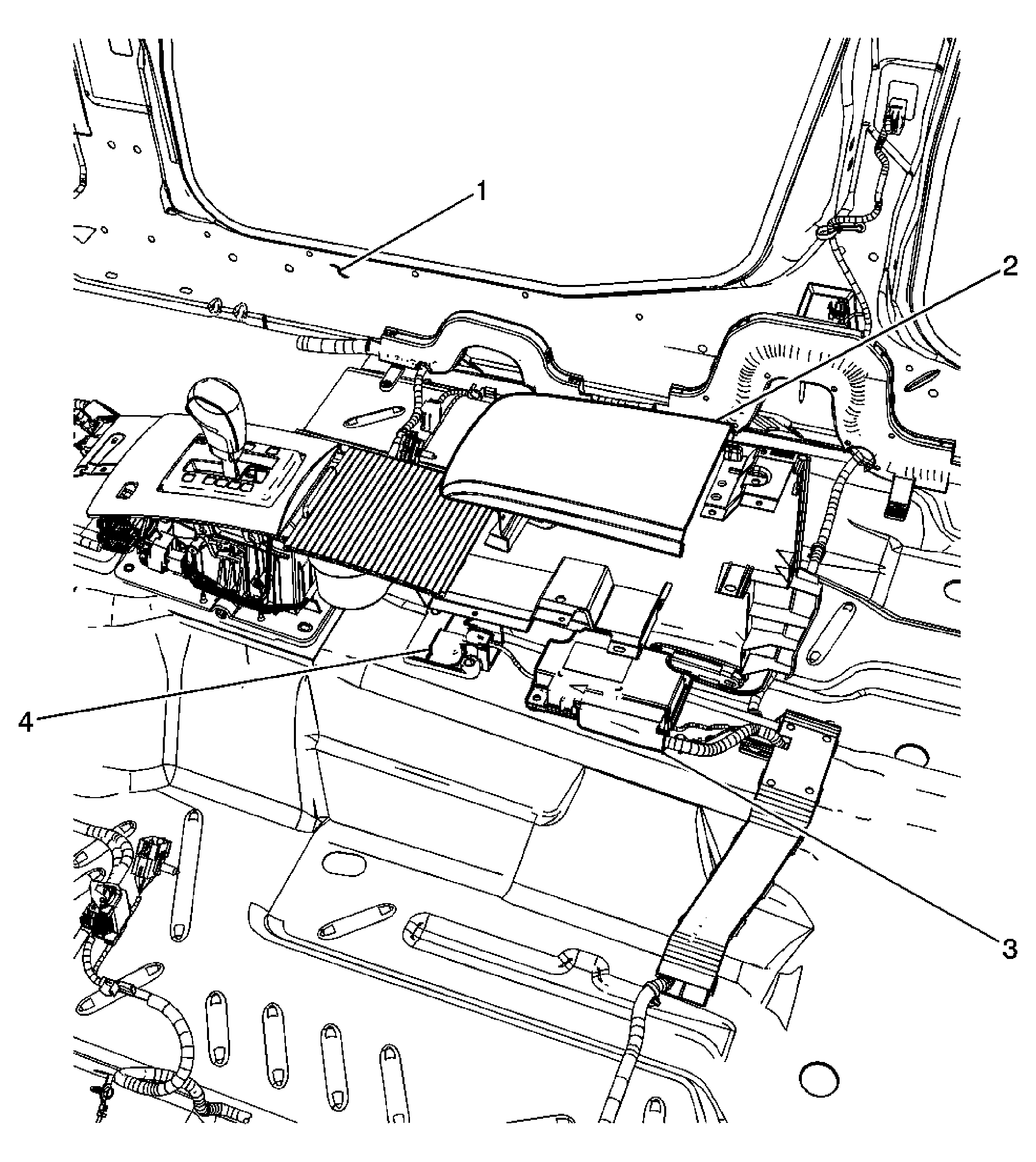

Fig 6: Identifying SDM & Rollover Sensor (Underneath Floor Console)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 6

Callout	Component Name
1	Inner Side Frame-RH
2	Console Arm Rest
3	Inflatable Restraint Sensing and Diagnostic Module (SDM)
4	Rollover Sensor
